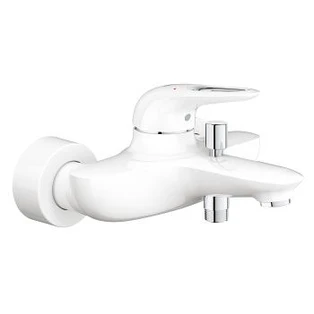

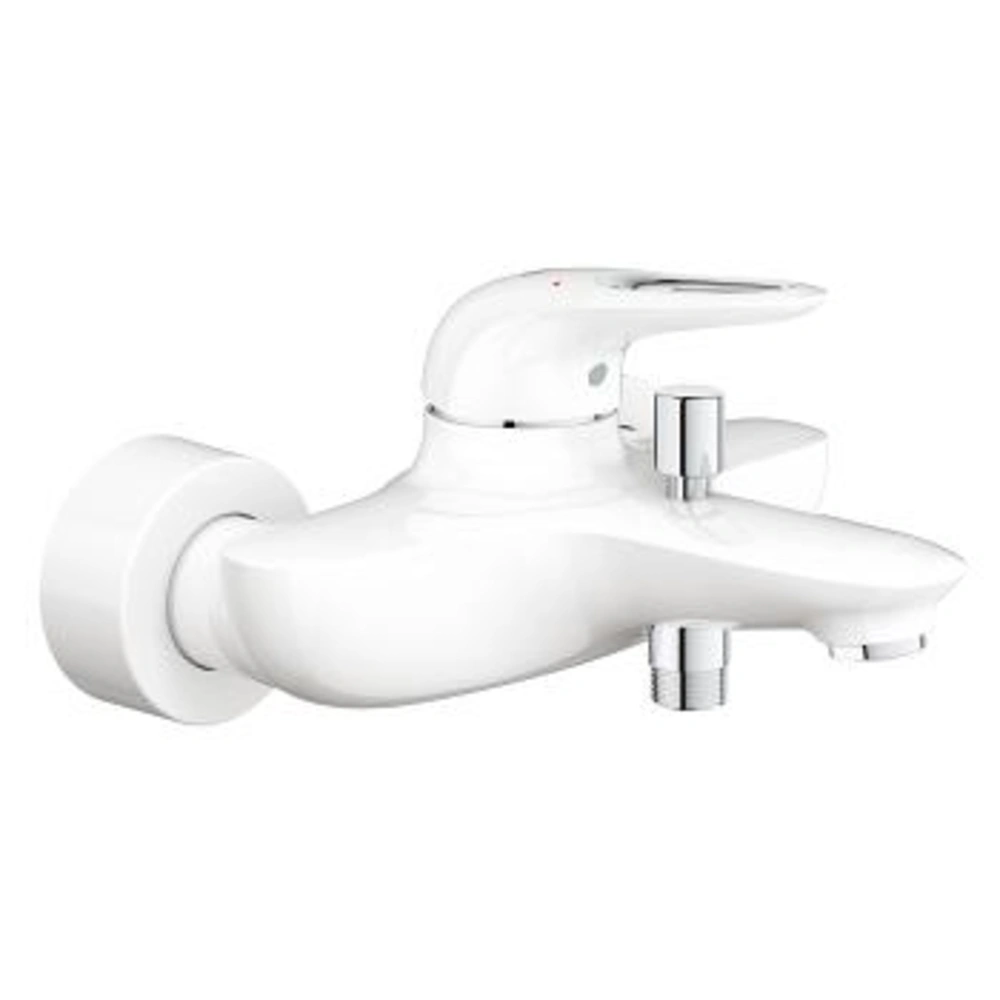

Single-lever bath mixer with loop metal lever for wall mounting. The S-unions are covered.
The tap fitting is equipped with a 35 mm ceramic cartridge, a temperature limiter and a variably adjustable flow rate limiter...
Related products
Grohe 5 years manufacturer's warranty
Single-lever bath mixer with loop metal lever for wall mounting. The S-unions are covered.
The tap fitting is equipped with a 35 mm ceramic cartridge, a temperature limiter and a variably adjustable flow rate limiter. The spout is fitted with a mousseur. Diversion from bath spout to shower is by pulling out the button, which automatically resets into its original position as soon as the water has been turned off. An integrated non-return valve is in the shower outlet to protect against backflow. The surface is easy to clean and scratch-resistant.
| Scope of delivery: | |||
| 1 x | bath mixer | ||
| 2 x | S-unions | ||
For more information see Downloads
| OEG no. | 800020370 |
| Application : | Bathtub |
| Tap fitting installation: | Surface mounting |
| Type of connection: | High pressure |
| Waste set: | Without |
| Mixer colour: | White |
| Model: | Loop lever |
| Inside micrometer [mm]: | 150 ± 15 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 19 .. 20 |
| Connection size [inch]: | 1/2 |
| Cartridge: | GROHE SilkMove 35 mm ceramic cartridge |
| Pull-out spout: | No |
| Spout swivelling: | No |
| Application: | Hot water, Cold water |
| Surface: | GROHE StarLight |
| Design line: | Eurostyle |
| Fitting operation: | Single-lever mixer tap |
| Manufacturer | Grohe |
| Manufacturer number | 33591LS3 |
| EAN | 4005176334535 |
| Weight [kg] | 2.52 |
| Notes |
Grohe 5 years manufacturer's warranty
|
| Customs tariff number | 84818011 |
| OEG no. | 800020370 |
| Application : | Bathtub |
| Tap fitting installation: | Surface mounting |
| Type of connection: | High pressure |
| Waste set: | Without |
| Mixer colour: | White |
| Model: | Loop lever |
| Inside micrometer [mm]: | 150 ± 15 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 19 .. 20 |
| Connection size [inch]: | 1/2 |
| Cartridge: | GROHE SilkMove 35 mm ceramic cartridge |
| Pull-out spout: | No |
| Spout swivelling: | No |
| Application: | Hot water, Cold water |
| Surface: | GROHE StarLight |
| Design line: | Eurostyle |
| Fitting operation: | Single-lever mixer tap |
| EAN | 4005176334535 |
| Weight [kg] | 2.52 |
| Notes |
Grohe 5 years manufacturer's warranty
|
| Customs tariff number | 84818011 |
