OEG no. : 512238400
Related products
The pressure expansion vessel is used for process water, pressure-boosting and underfloor heating systems, which are not subject to DIN 1988. The vessel is fitted with an internal coating...
All product informationRelated products

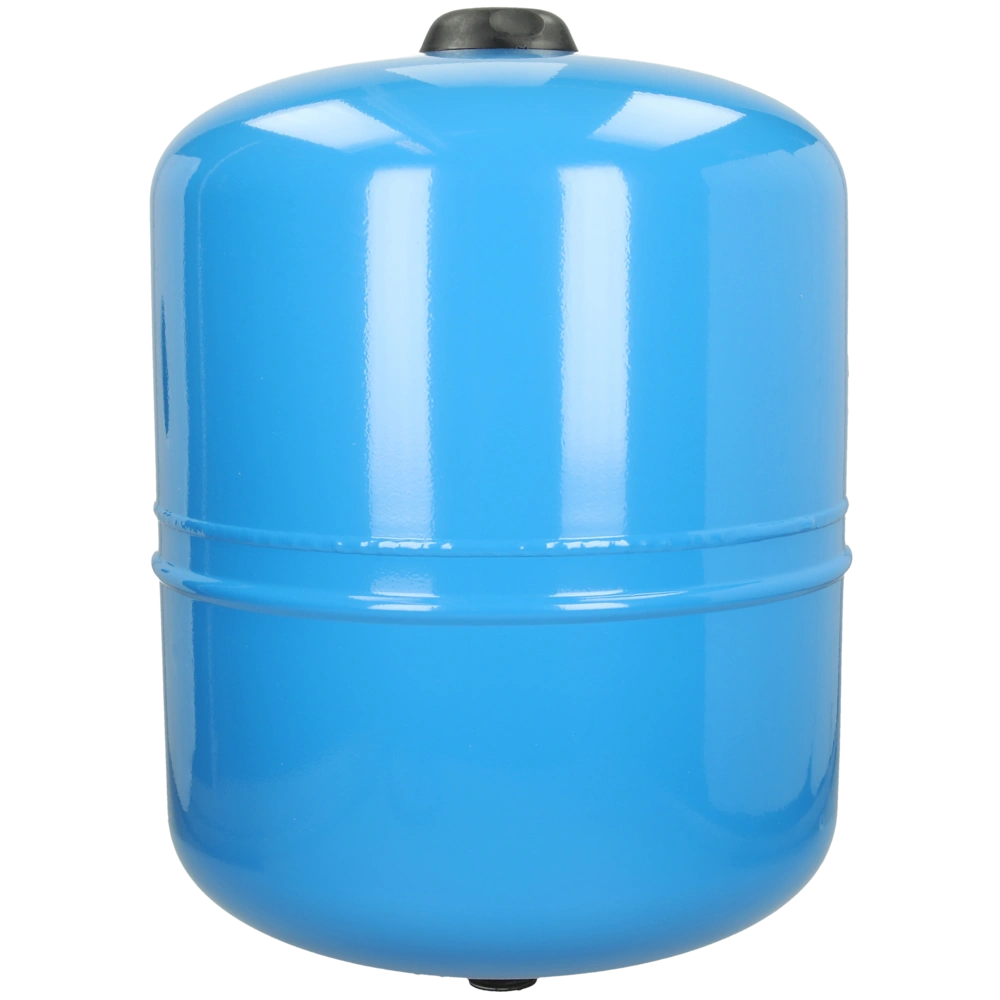

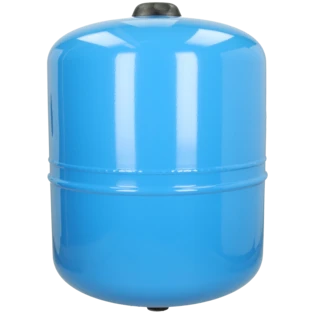

The pressure expansion vessel is used for process water, pressure-boosting and underfloor heating systems, which are not subject to DIN 1988. The vessel is fitted with an internal coating.
It is provided with the EU type certificate.
| OEG no. | 512238400 |
| Type: | Hydro Pro |
| Pre-charge pressure [bar]: | 2 |
| Capacity [l]: | 24 |
| Length x Diameter [mm]: | 390 x 300 |
| Membrane: | Fixed |
| Standard: | EN 13831 |
| Connection size [inch]: | 1 |
| Operating temperature max. [°C]: | 70 |
| Operating pressure max. [bar]: | 10 |
| Manufacturer | Zilmet |
| Manufacturer number | 11A0002427 |
| EAN | 8019855005605 |
| Weight [kg] | 10 |
| Customs tariff number | 84798997 |
