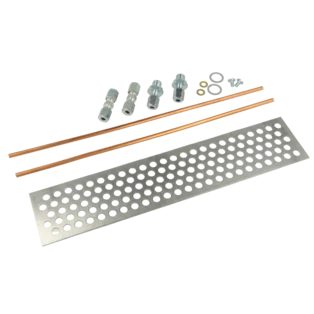

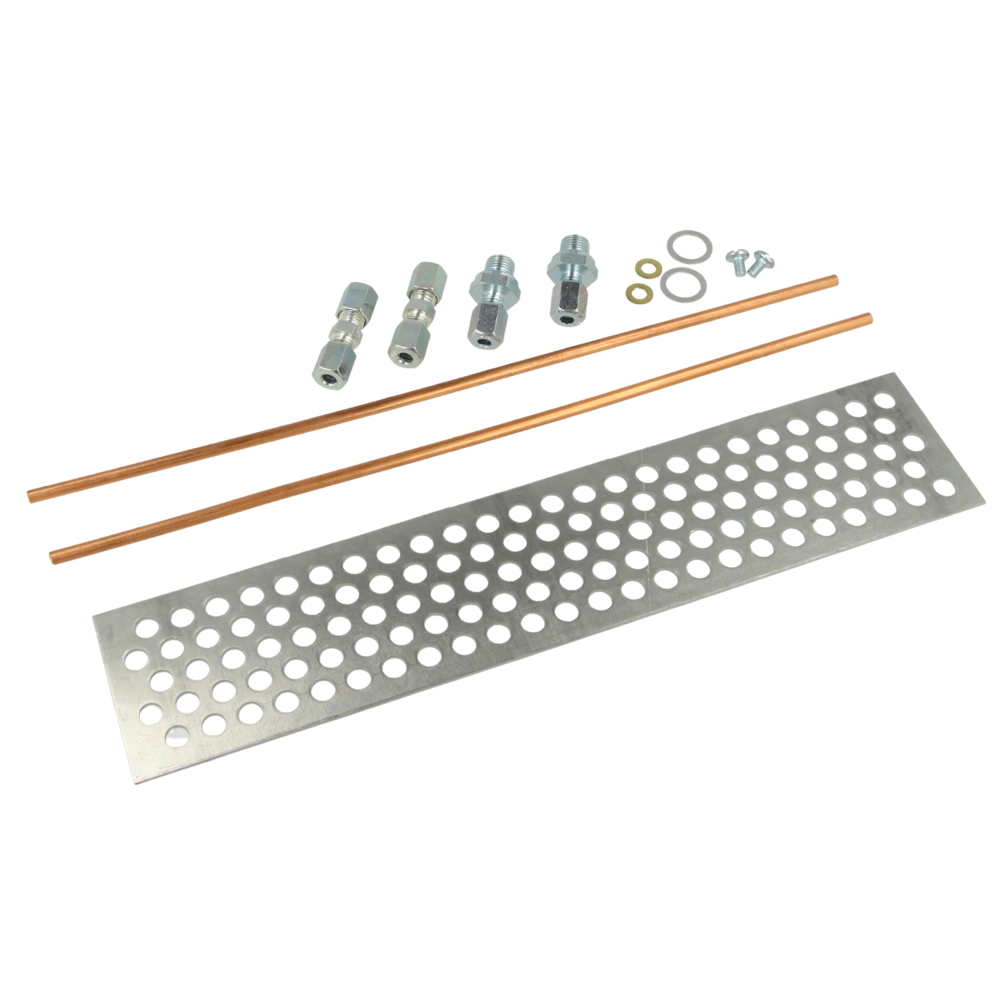

Extension set for the installation of the HZ 5 oil meter into the pressure line between burner pump and burner nozzle.
All product information Scope of deliveryExtension set for the installation of the HZ 5 oil meter into the pressure line between burner pump and burner nozzle.
| Scope of delivery: | |||
| 2 x | Straight union | ||
| 2 x | U-washers | ||
| 1 x | Retaining plate for mounting the meter | ||
| 2 x | Aluminium sealing rings | ||
| 2 x | Reinforcement ring 6 x 1 mm | ||
| 2 x | Coupling connection 4 x 4 mm | ||
| 2 x | Screwed pipe connections 1/8" Ø 4 mm | ||
| 2 x | 250 mm copper pipe sections Ø 4 mm | ||
| 2 x | Fixing screws M4 x 6 mm | ||
| Suitable for: | |||
|
Oil meter HZ5 factory-tested |
|
|
|
Oil meter HZ5-DR with pulse generator and LC digital display |
|
|
| OEG no. | 116324140 |
| Design: | 4 mm |
| Model: | Attachment set HZ5 |
| Length x Width x Height [mm]: | 240 x 50 x 1.5 |
| Type: | Adaptor kit |
| Weight [kg] | 0.12 |
| Customs tariff number | 74122000 |
There are no questions available on this item yet
You have to be logged in to ask a question
23/02/2017, 14:50:13 of: Mr Feld
gut
Das Anbau-Set Ölmengenzähler ist schnell montiert
