OEG no. : 512238508
Related products

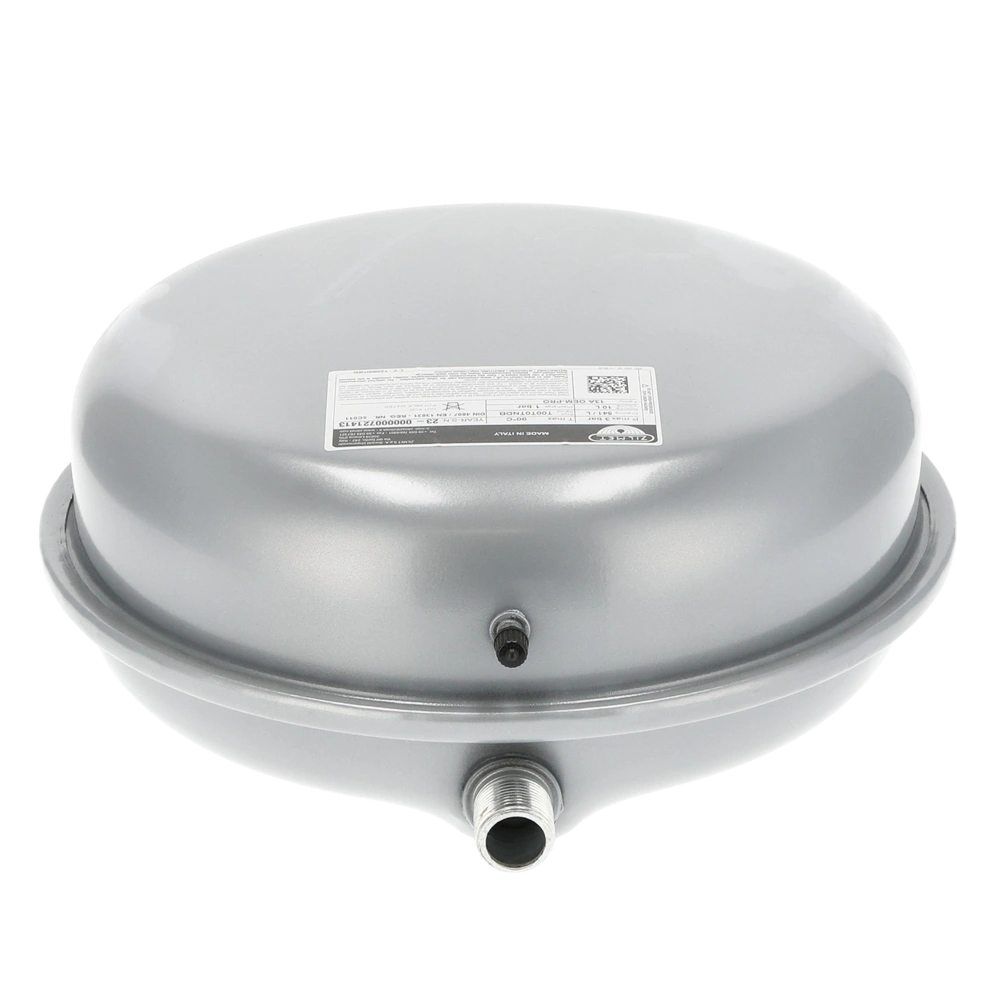

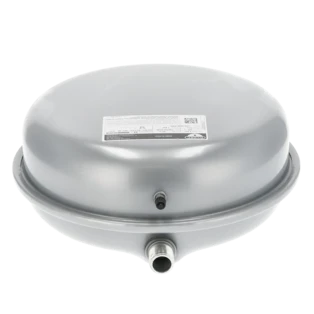

Pressure expansion vessel for heating systems. The flat design makes the vessel particularly suitable for the use in heat generators and in confined places.
All product informationRelated products
CE
Pressure expansion vessel for heating systems. The flat design makes the vessel particularly suitable for the use in heat generators and in confined places.
For more information see Downloads
| OEG no. | 512238508 |
| Type: | P 541 |
| Capacity [l]: | 10 |
| Operating pressure max. [bar]: | 3 |
| Diameter x Height [mm]: | 324 x 139 |
| Temperature max. [°C]: | 70 |
| Connection size [inch]: | 3/4 |
| Standard: | DIN 4807-3, EN 13831, DIN 4751-2 |
| Membrane: | Fixed |
| Pre-charge pressure [bar]: | 1 |
| Manufacturer | Zilmet |
| Manufacturer number | 13A6001000 |
| Weight [kg] | 3.4 |
| Notes |
CE
|
| Customs tariff number | 84798997 (IT) |
| OEG no. | 512238508 |
| Type: | P 541 |
| Capacity [l]: | 10 |
| Operating pressure max. [bar]: | 3 |
| Diameter x Height [mm]: | 324 x 139 |
| Temperature max. [°C]: | 70 |
| Connection size [inch]: | 3/4 |
| Standard: | DIN 4807-3, EN 13831, DIN 4751-2 |
| Membrane: | Fixed |
| Pre-charge pressure [bar]: | 1 |
| Weight [kg] | 3.4 |
| Notes |
CE
|
| Customs tariff number | 84798997 (IT) |
Question:
est il possible d'avoir les dimensions de cette article et des autres vase si possible
Answer OEG:
Bonjour,
Diamètre extérieur sans rainure: 302 mm
Diamètre extérieur avec rainure: 324 mm
Hauteur : 139 mm
You have to be logged in to ask a question
22/03/2020, 11:09:28 of: Mr CHRONOCHAUFF
toujours tout en stock
on trouve toujours la pièce adaptée
27/01/2015, 21:36:29 of: Mr BRANDT
mieux qu'une pièce d'origine et 2x moins chère
mieux qu'une pièce d'origine et 2x moins chère .le client est content et le dépanneur aussi
