OEG no. : 512238511
Related products

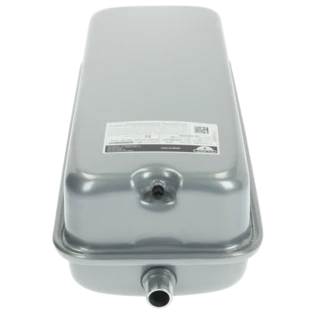

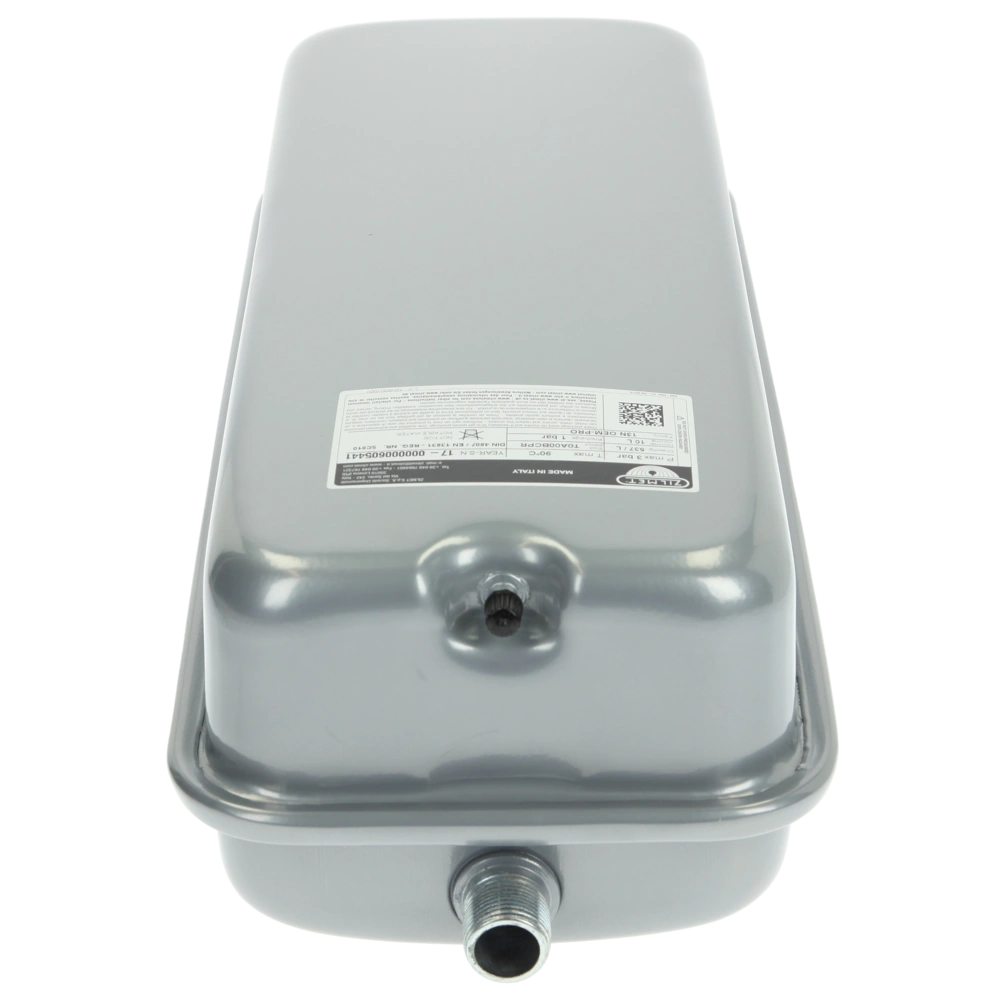

Pressure expansion vessel for heating systems. The flat design makes the vessel particularly suitable for the use in heat generators and in confined places.
All product informationRelated products
CE
Pressure expansion vessel for heating systems. The flat design makes the vessel particularly suitable for the use in heat generators and in confined places.
For more information see Downloads
| OEG no. | 512238511 |
| Type: | P 537 |
| Capacity [l]: | 7.5 |
| Operating pressure max. [bar]: | 3 |
| Length x Width x Height [mm]: | 492 x 203 x 118 |
| Temperature max. [°C]: | 70 |
| Connection size [inch]: | 3/8 |
| Standard: | DIN 4807-3, EN 13831, DIN 4751-2 |
| Membrane: | Fixed |
| Pre-charge pressure [bar]: | 1 |
| Manufacturer | Zilmet |
| Manufacturer number | 13N600FG26 |
| Weight [kg] | 2.3 |
| Notes |
CE
|
| Customs tariff number | 84798997 (IT) |
| OEG no. | 512238511 |
| Type: | P 537 |
| Capacity [l]: | 7.5 |
| Operating pressure max. [bar]: | 3 |
| Length x Width x Height [mm]: | 492 x 203 x 118 |
| Temperature max. [°C]: | 70 |
| Connection size [inch]: | 3/8 |
| Standard: | DIN 4807-3, EN 13831, DIN 4751-2 |
| Membrane: | Fixed |
| Pre-charge pressure [bar]: | 1 |
| Weight [kg] | 2.3 |
| Notes |
CE
|
| Customs tariff number | 84798997 (IT) |
