Flue gas silencer for use with all standard combustion appliances in both negative and positive pressure ranges as well as in ventilation systems. The tightness and maximum temperature depend on the...
All product informationRelated products

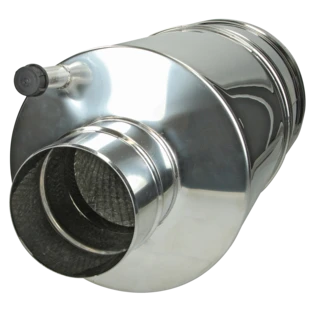

Flue gas silencer for use with all standard combustion appliances in both negative and positive pressure ranges as well as in ventilation systems. The tightness and maximum temperature depend on the material of the seal used: without a seal it is pressure-tight up to 1000 Pa and 400 °C, with EPDM up to 200 Pa and 200 °C, and with silicone up to 200 Pa and 120 °C.

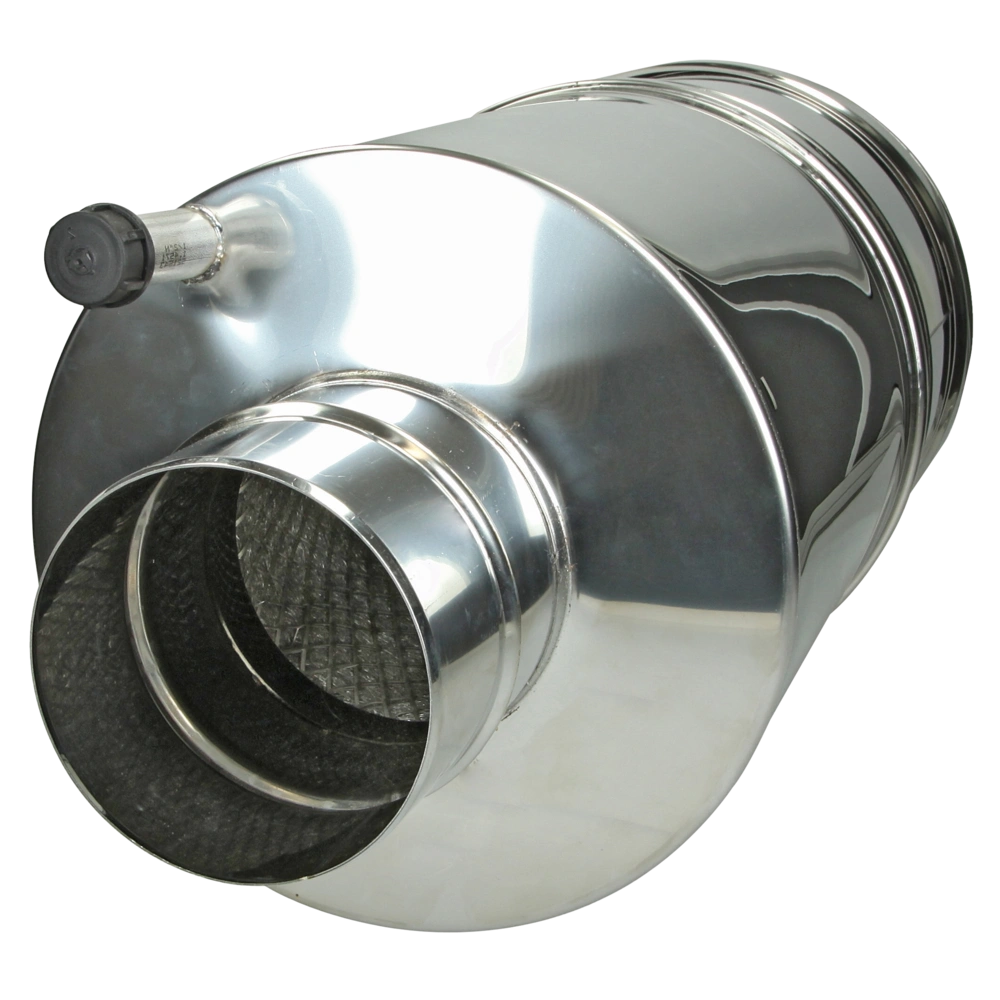

The durable silencer has a stainless steel casing with a water-repellent mineral fibre absorption core protected by glass fleece and an expanded metal mesh. Thanks to the special mineral fibres, this cost-effective flue gas silencer provides very effective attenuation.
For more information see Downloads
| OEG no. | 510606320 |
| Material: | Stainless steel |
| Type: | AGS 130 330 |
| Temperature max. [°C]: | 400 |
| Length [mm]: | 330, 550 |
| Diameter [mm]: | 130 |
| Outer diameter [mm]: | 250 |
| Material thickness: | 0.6 |
| Drain nozzle: | Ø 18 mm |
| Socket length [mm]: | 110 |
| Weight [kg] | 3.4 |
| Customs tariff number | 73089059 |
Question
Beste , Mag deze rookgasdemper rechtop geplaatst worden met de condens afvoer naar beneden ? Met vriendelijke groet Johan Verfaillie
Answer OEG:

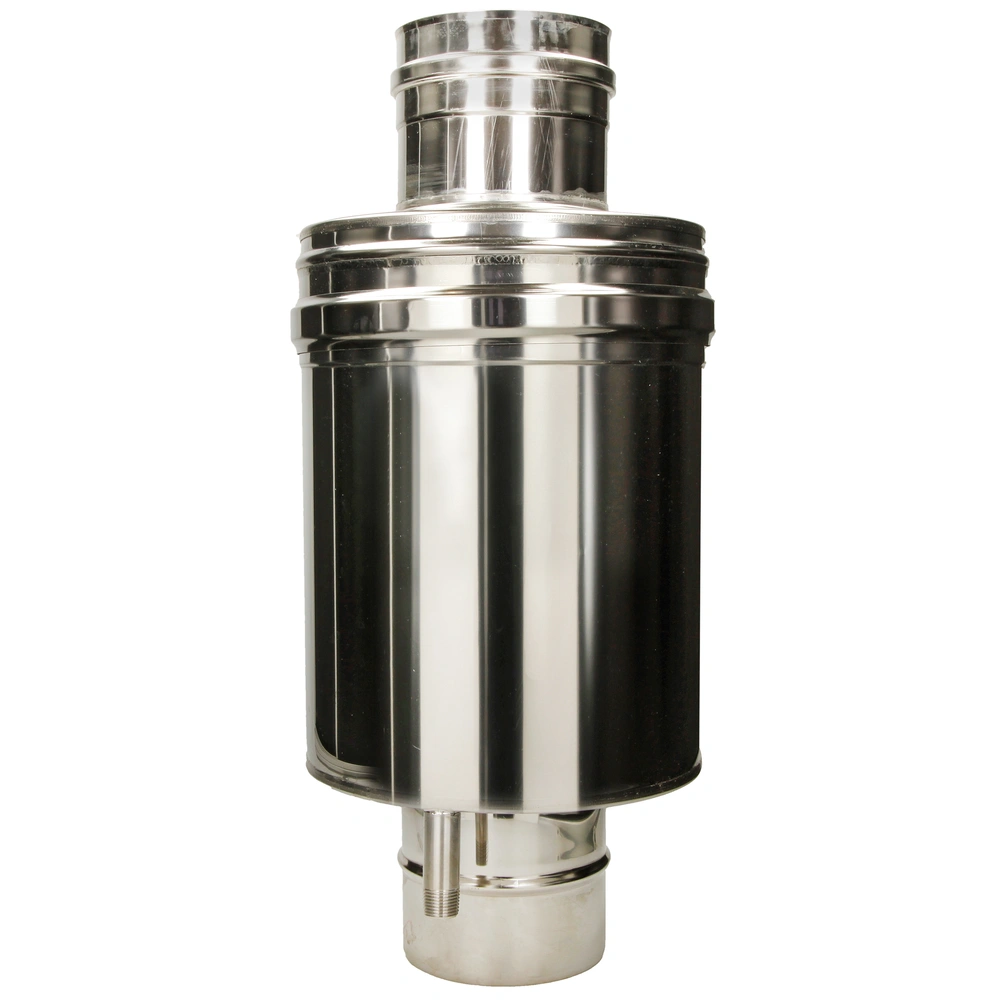

Deze rookgasdempers kunnen naar keuze horizontaal, schuin of verticaal worden gemonteerd en de condensafvoer naar beneden is ook in dat geval correct.
Question
Um wieviel DB wird der Schall ca. reduziert
Answer OEG:
Der Schall wird um ca. 15 bis 20 dB gedämpft
Question
Bonjour, est il possible de l'installer à la verticale ou sont installation doit se faire uniquement à l'horizontale ?
Answer OEG:
Bonjour,
Il peut être installé à la verticale et à la horizontale.
Question
Kann dieser Schalldämper auch in einer Ölkondensationsanlage eingebaut werden - Feuchtigkeit?? Schöne Grüße Dietmar Moosbrugger
Answer OEG:
Der Schalldämpfer ist für Gas- und Ölkessel bei trockener und feuchter Betriebsweise geeignet, demnach einsetzbar.
You have to be logged in to ask a question
24/02/2016, 16:20:03 of: Mr Feld
guter Artikel
Anlage läuft nach Einbau leiser
14/02/2016, 11:10:02 of: Mr Feld
guter Artikel
Schneller Einbau 1A Material Top
