Flue silencer for use with all standard combustion appliances in negative and positive pressure operation and in ventilation systems.
Tightness and maximum temperature depend on the seal material...
Related products

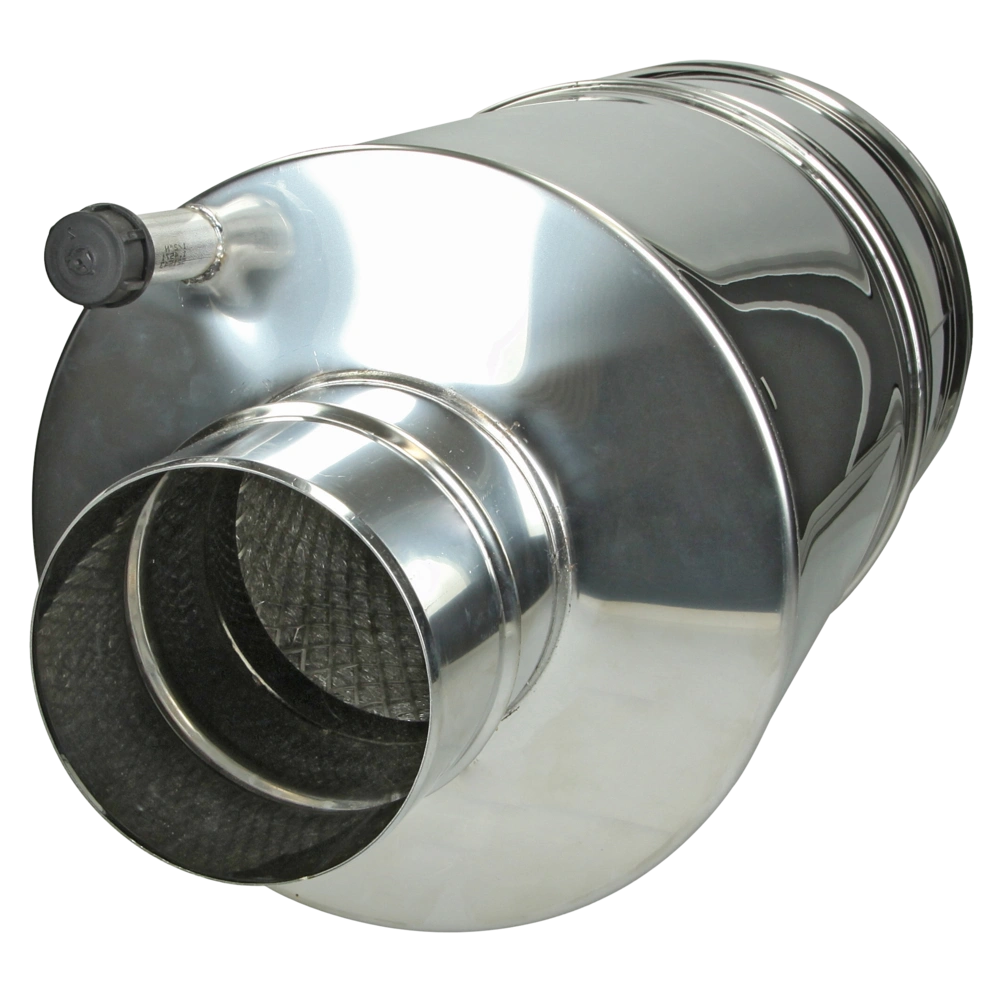

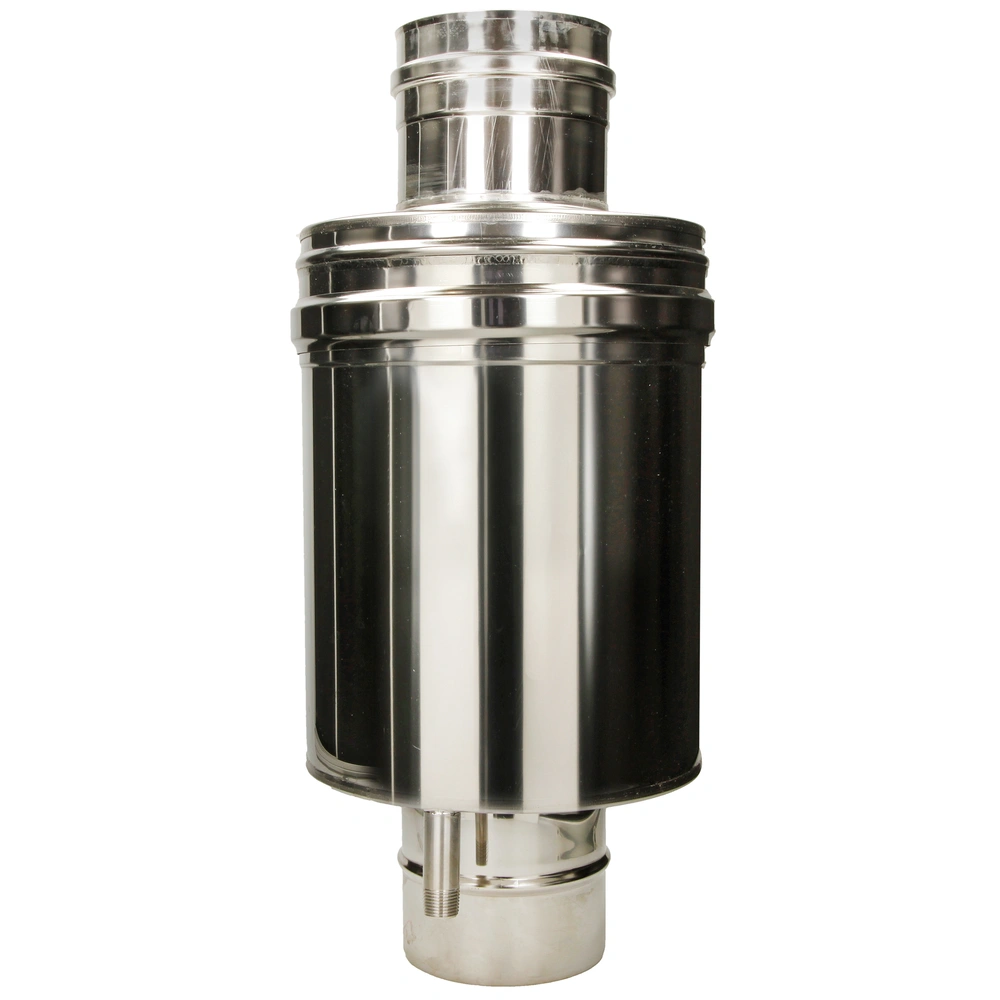

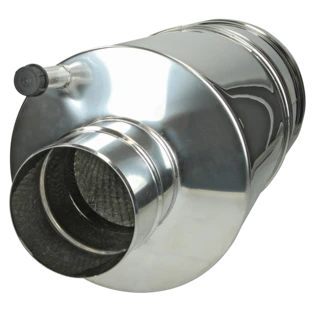

Flue silencer for use with all standard combustion appliances in negative and positive pressure operation and in ventilation systems.
Tightness and maximum temperature depend on the seal material used: without a seal it is suitable for positive pressures up to 1,000 Pa and 400 °C, with EPDM up to 200 Pa and 200 °C, and with silicone up to 200 Pa and 120 °C.
The durable silencer consists of a stainless steel housing with a water-repellent mineral fibre absorption core, protected by glass fleece and an expanded metal mesh. Thanks to the special mineral fibres, this cost-effective flue silencer provides very good attenuation.
For more information see Downloads
| OEG no. | 510606330 |
| Temperature max. [°C]: | 200 |
| Length [mm]: | 720 |
| Diameter [mm]: | 130 |
| Material: | Stainless steel 1.4404 |
| Attenuation class: | 20 dB |
| Outer diameter [mm]: | 250 |
| Material thickness: | 0.6 |
| Drain nozzle: | Ø 18 mm |
| Attenuation core length: | 500 mm |
| Socket length [mm]: | 110 |
| EAN | 4055291031024 |
| Weight [kg] | 6.86 |
| Notes | |
| Customs tariff number | 73269098 |
