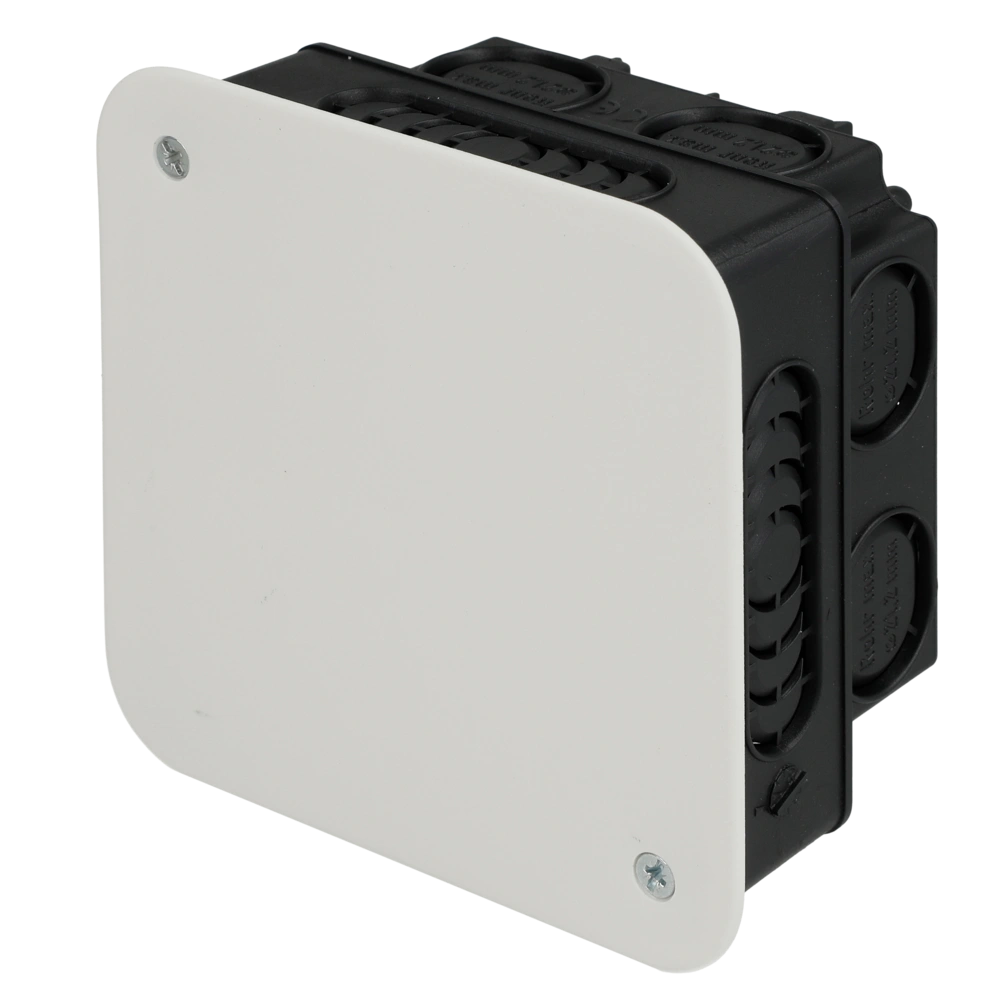

Flush-mounted junction casing with cover 109491
OEG no.: 709000210
Central junction casing for star-shaped cable laying. Easy to rewire when changing the way rooms are used or with new installation of rooms. When using a separator wall, it is suitable for up to 2 electrical circuits...
All product information Scope of deliveryRelated products
PU
Central junction casing for star-shaped cable laying. Easy to rewire when changing the way rooms are used or with new installation of rooms. When using a separator wall, it is suitable for up to 2 electrical circuits.
End cover with screw fastening for VDE-compliant installation. For the installation of DIN terminal strips and terminal blocks up to 16 mm2.

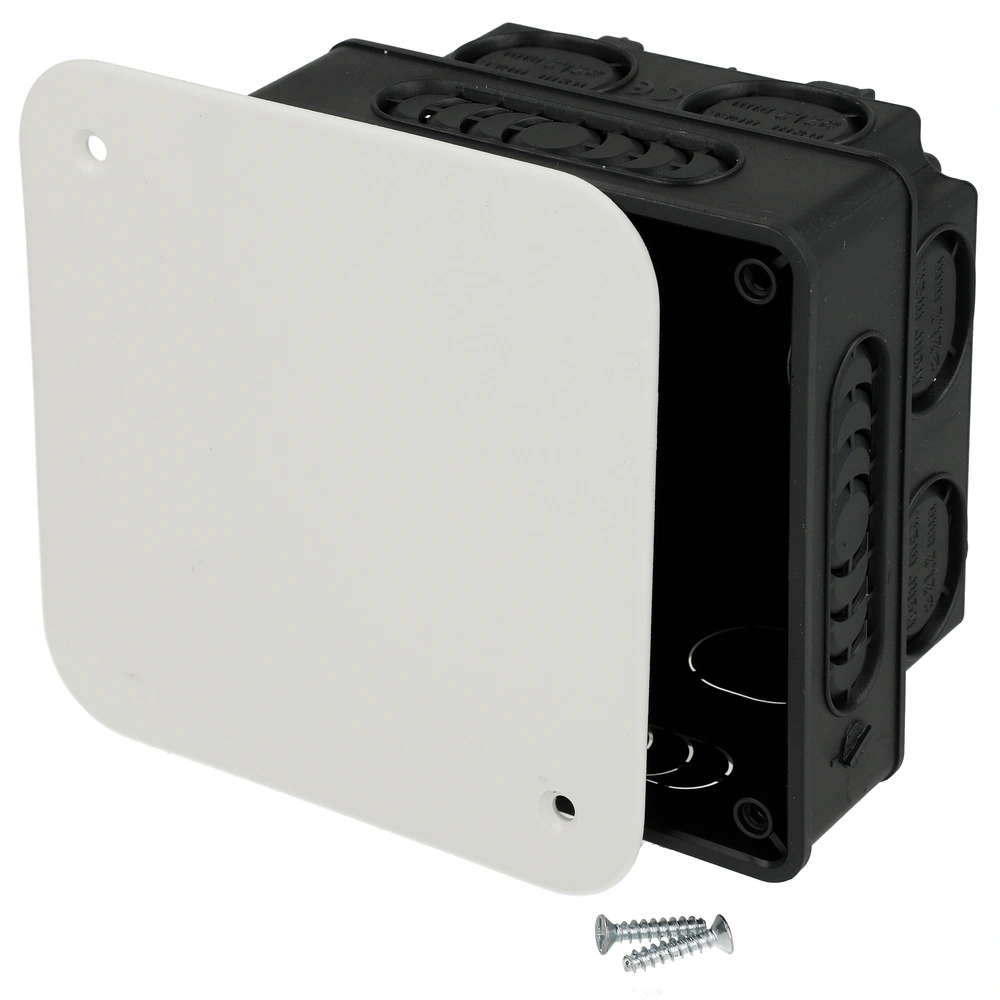

| Scope of delivery: | |||
| 1 x | wiring box | ||
| 1 x | lid | ||
For more information see Downloads
| OEG no. | 709000210 |
| Design: | Case |
| Type: | Junction casing |
| Connections: | 24 |
| Length x Width [mm]: | 87 x 87 |
| Depth [mm]: | 60 |
| Pipe diameter [mm]: | 20 |
| Size: | Terminals up to 4mm² | Terminal blocks up to 16mm² |
| Diameter [mm]: | 87 |
| Protection type [IP]: |
 IP2X
|
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Manufacturer | Kaiser |
| Manufacturer number | 109491 |
| EAN | 4013456150805 |
| Weight [kg] | 0.54 |
| Notes |
PU
|
| Customs tariff number | 39259080 |
