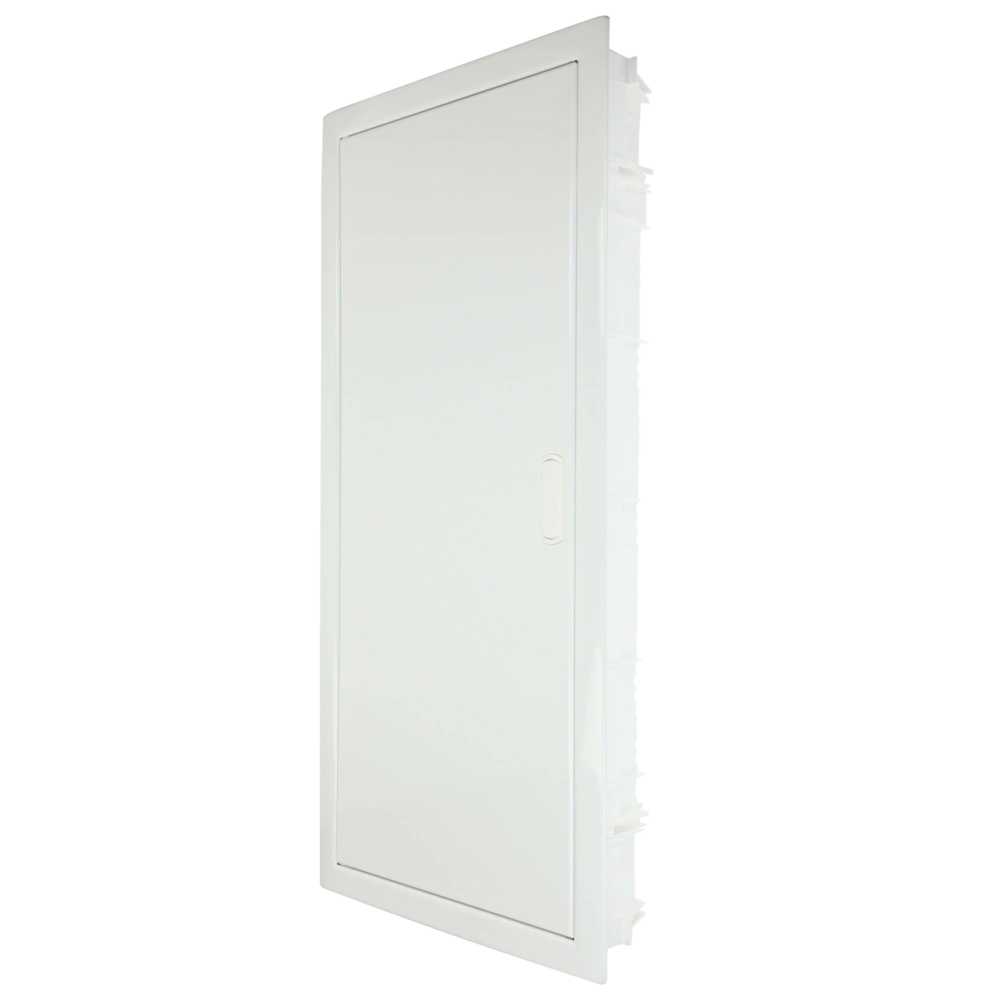

FM distribution 4R metal, 48+8 mod.-63A N and PE terminals, cover strip, IP30 001434
OEG no.: 711000522
Flush-mounted distribution.
Technical data:
- door hinged on the right or left
- door handle inside
- additional N-terminals for extra ground fault circuit interrupter ...
Related products
Flame-retarding
Flush-mounted distribution.
Technical data:
- door hinged on the right or left
- door handle inside
- additional N-terminals for extra ground fault circuit interrupter
- installation depth 70 mm
- frame and door, epoxy-coated
- colour of door: pure white similar RAL 9010
- according to EN 60 439-3, VDE 0603 part 1
For more information see Downloads
| OEG no. | 711000522 |
| Distributor rows: | 4-row |
| Horizontal pitches [HP]: | 56 |
| EU standard: | 60898, 61439-3 |
| Length x Width x Height [mm]: | 330 x 90 x 680 |
| Type: | Ekinoxe |
| Protection type [IP]: |
 IP30
|
| IK impact protection rating: | 5 |
| Material: | Steel |
| Mounting type: | Flush-mounted |
| Installation depth: | 86 |
| Manufacturer | Legrand |
| Manufacturer number | 001434 |
| Weight [kg] | 6.9 |
| Notes |
Flame-retarding
|
| Customs tariff number | 85381000 (FR) |
