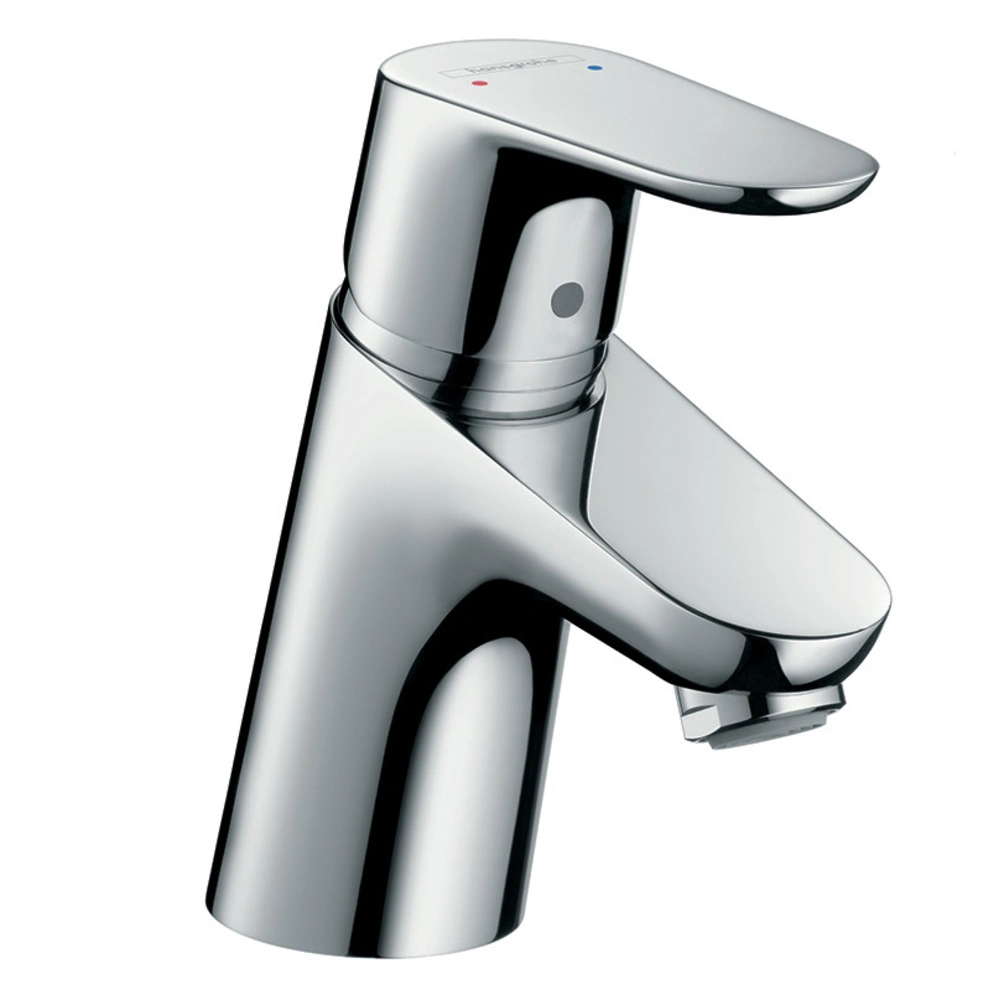

Focus 70 basin fmixer with waste set and LP 31132000
OEG no.: 800007162
Chrome-plated single-lever basin fitting for single-hole installation with pop-up waste set. The low-pressure fitting for the use with vented hot water cylinders has a ceramic mixing system with adjustable temperature limiter.
All product information Scope of delivery
Related products
Low-pressure fitting for vented hot water cylinders
ACS
5 years warranty
Chrome-plated single-lever basin fitting for single-hole installation with pop-up waste set. The low-pressure fitting for the use with vented hot water cylinders has a ceramic mixing system with adjustable temperature limiter.
| Scope of delivery: | |||
| 1 x | Single-lever basin mixer | ||
| 2 x | connection hose | ||
| 1 x | stem attachment | ||
For more information see Downloads
| OEG no. | 800007162 |
| Application : | Washbasin |
| Type of connection: | Low pressure |
| Waste set: | Pull rod |
| Connection size supply hose: | Copper pipe 8 mm |
| Cartridge: | hansgrohe 35 mm |
| Spray mode: | Laminar flow |
| Spout height [mm]: | 53 |
| Projection [mm]: | 101 |
| Height of tap [mm]: | 133 |
| Flow rate [l/min]: | 5 |
| Operating pressure [bar]: | 3 |
| Application: | Cold water, Hot water |
| Design line: | Focus |
| Mixer colour: | Chrome |
| Pull-out spout: | No |
| Tap fitting installation: | Single-hole installation |
| Fitting operation: | Single-lever mixer tap |
| Manufacturer | Hansgrohe |
| Manufacturer number | 31132000 |
| EAN | 4011097678030 |
| Weight [kg] | 2.2 |
| Notes |
Low-pressure fitting for vented hot water cylinders
ACS
5 years warranty
|
| Customs tariff number | 84818011 |
|
|
|
| OEG no. | 800007162 |
| Application : | Washbasin |
| Type of connection: | Low pressure |
| Waste set: | Pull rod |
| Connection size supply hose: | Copper pipe 8 mm |
| Cartridge: | hansgrohe 35 mm |
| Spray mode: | Laminar flow |
| Spout height [mm]: | 53 |
| Projection [mm]: | 101 |
| Height of tap [mm]: | 133 |
| Flow rate [l/min]: | 5 |
| Operating pressure [bar]: | 3 |
| Application: | Cold water, Hot water |
| Design line: | Focus |
| Mixer colour: | Chrome |
| Pull-out spout: | No |
| Tap fitting installation: | Single-hole installation |
| Fitting operation: | Single-lever mixer tap |
| EAN | 4011097678030 |
| Weight [kg] | 2.2 |
| Notes |
Low-pressure fitting for vented hot water cylinders
ACS
5 years warranty
|
| Customs tariff number | 84818011 |
