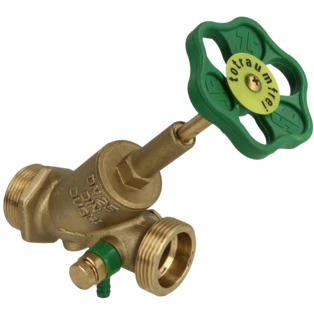

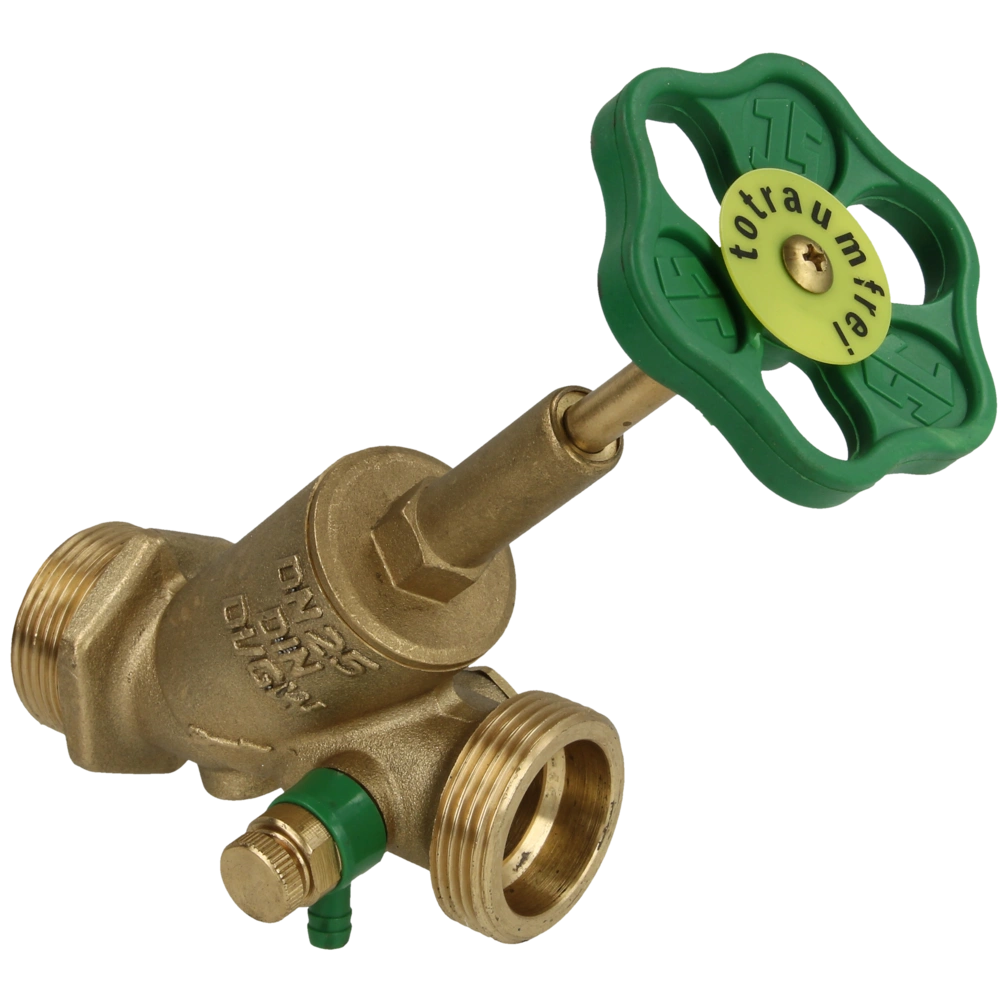

Legionella-safe free-flow valve with rising stem and grease chamber that is free of dead space.
The valve can be used at the house service connection of the drinking water installation in flow direction downstream of the water meter or for shutting off the water pipe at other places...
All product informationRelated products
certified by DVGW
Suitable for drinking water installations
Legionella-safe free-flow valve with rising stem and grease chamber that is free of dead space.
The valve can be used at the house service connection of the drinking water installation in flow direction downstream of the water meter or for shutting off the water pipe at other places. The particularly streamlined shape ensures low pressure losses and reduces noises.
The valve also has a drain tap.
| OEG no. | 805002482 |
| Model: | With draining |
| Connection: | 1 1/4" ET |
| Total length [mm]: | 110 |
| DIN: | 3502 |
| Operating pressure max. [bar]: | 10 |
| Type: | Rising stem |
| Housing: | Brass |
| Operating temperature max. [°C]: | 90 |
| Also replaces | 805002472 |
| Weight [kg] | 0.23 |
| Notes |
certified by DVGW
Suitable for drinking water installations
|
| Customs tariff number | 84818079 |
