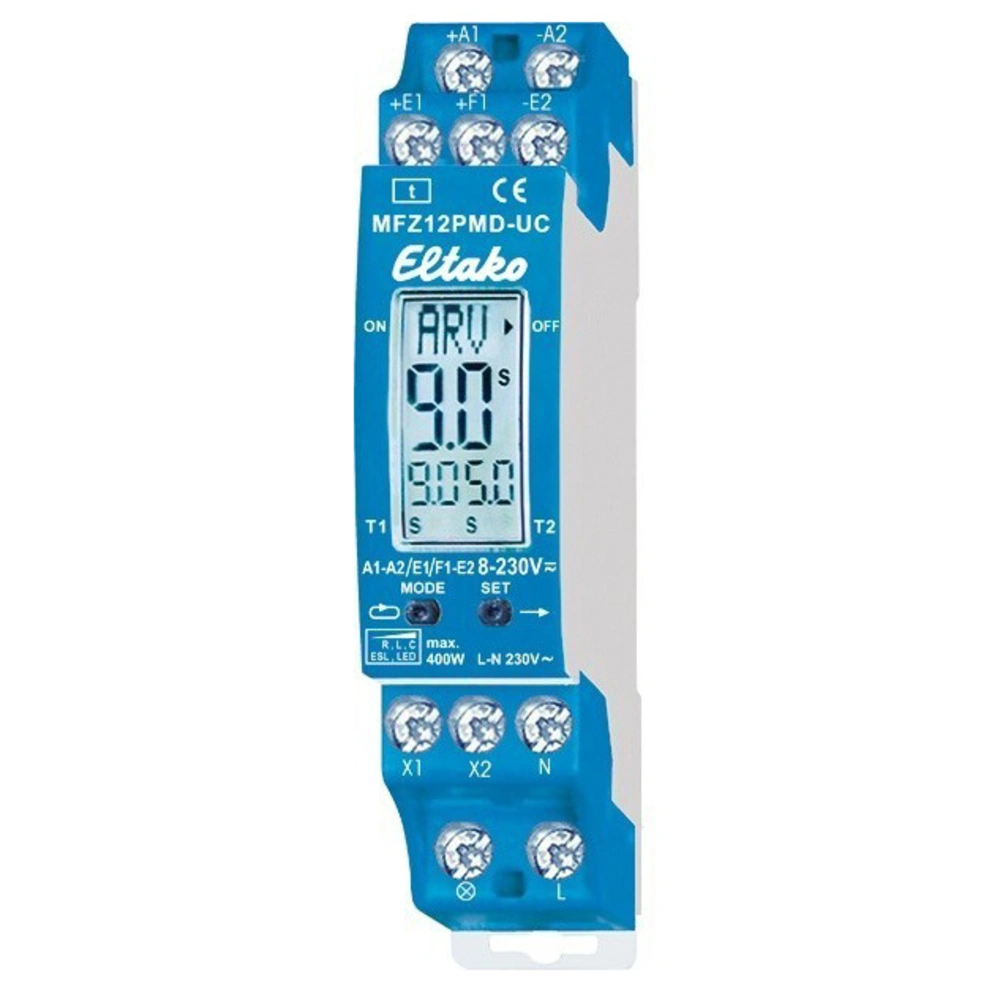

Fully electronic multi-function time relay with 18 functions
OEG no.: 723000133
Fully electronic multi-function time relay with LC display and 18 adjustable functions for rail mounting. Functions such as delays, fleeting NO/NC contacts, clock generators and on/off switching as...
All product informationRelated products
Fully electronic multi-function time relay with LC display and 18 adjustable functions for rail mounting. Functions such as delays, fleeting NO/NC contacts, clock generators and on/off switching as well as over 600 different time settings are possible via the display with 2 buttons.
For more information see Downloads
| OEG no. | 723000133 |
| Type: | MFZ12PMD |
| Mounting type: | DIN-rail |
| Horizontal pitches [HP]: | 1 |
| Display: | LCD |
| Width x Depth [mm]: | 18 x 58 |
| Power supply: | 8 .. 230 V |
| Dimmable: | Yes |
| Rated current [A]: | 10 |
| Switching capacity [W]: | 400 |
| Wire cross-section [mm²]: | 6 |
| Adjustment range: | 0.1 .. 99 min |
| Switch contact: | MOSFET |
| Design: | Digital |
| Switch-on time: | 100% |
| Protection type [IP]: |
 IP5X
 IP20
|
| Operating temperature [°C]: | -20 .. 50 |
| Manufacturer | Eltako |
| Weight [kg] | 0.89 |
| Customs tariff number | 85364900 (CN) |
There are no questions available on this item yet
