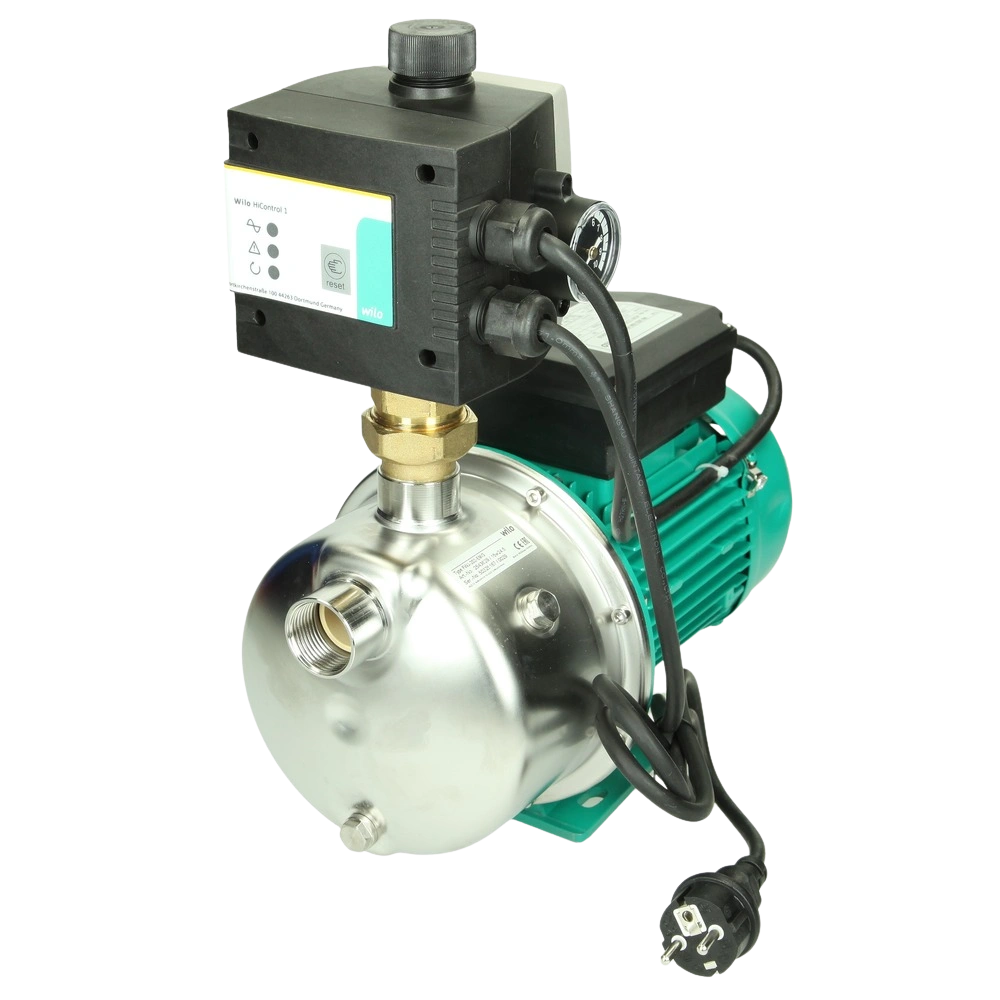

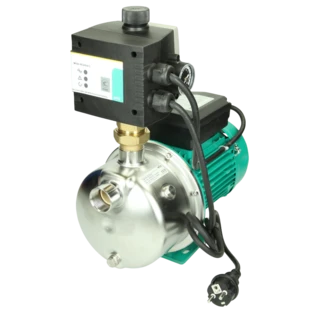

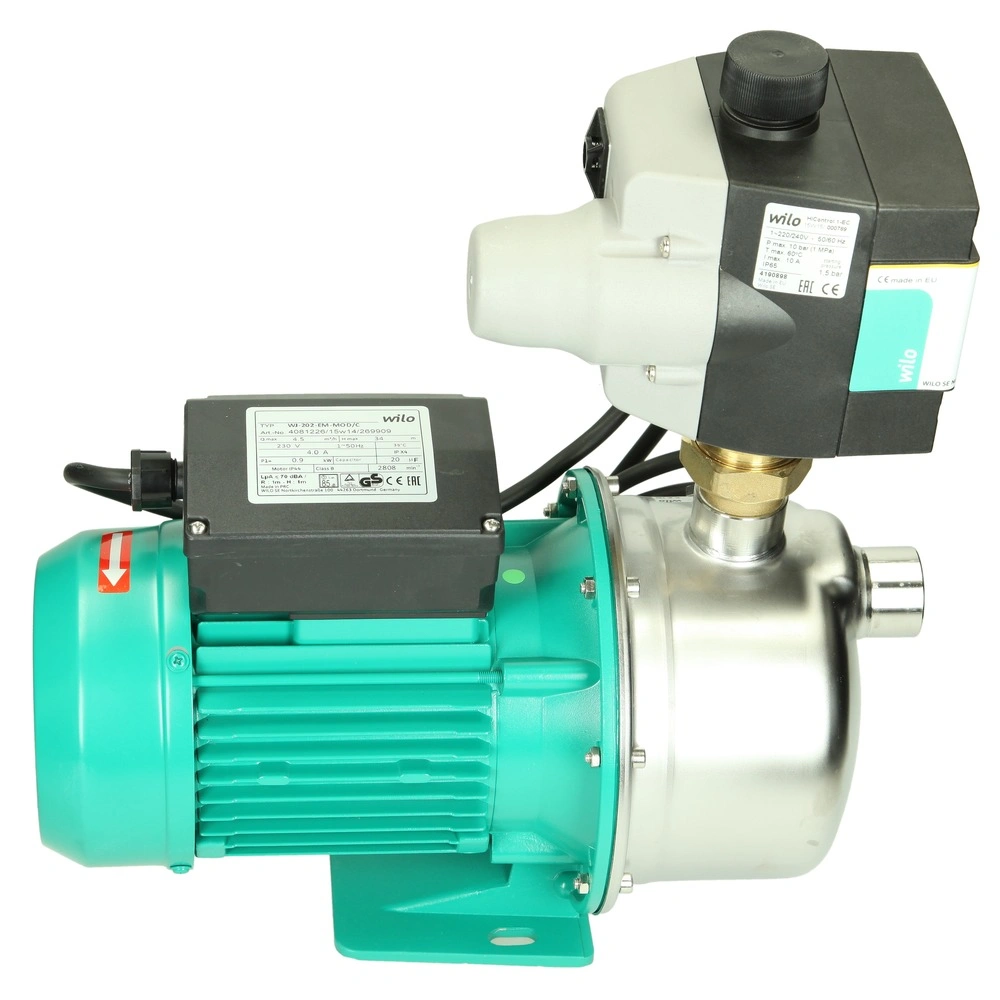

Garden pump FWJ 203 EM/3-2. D 750 with automatic pressure switch 4265610
OEG no.: 515100028
The Wilo garden pump FWJ 203 is a self-priming water supply unit for pumping water and rainwater from wells and tanks. It is suitable for sprinkling, irrigating and spraying.
The completely pre-assembled...
Related products
The Wilo garden pump FWJ 203 is a self-priming water supply unit for pumping water and rainwater from wells and tanks. It is suitable for sprinkling, irrigating and spraying.
The completely pre-assembled system is equipped with the electronic pump control Wilo-Fluidcontrol. All parts that come into contact with fluids are corrosion-free.
Replaces:
2543630
| Scope of delivery: | |||
| 1 x | pump | ||
| 1 x | pump control | ||
| 1 x | operating instructions | ||
For more information see Downloads
| OEG no. | 515100028 |
| Delivery head [m]: | 42 |
| Output [W]: | 750 |
| Material: | Stainless steel |
| Voltage [V]: | 230 |
| Delivery rate [m³/h]: | 5 |
| Connection: | 1" IT | 1" ET |
| Protection type [IP]: |
 IP44
|
| Cable length: | 2 |
| Operating pressure max. [bar]: | 6 |
| Media: | Water |
| Media temperature [°C]: | 5 .. 35 |
| Manufacturer | Wilo |
| Manufacturer number | 4265610 |
| Also replaces |
|
| Weight [kg] | 13.1 |
| Customs tariff number | 84137081 |
