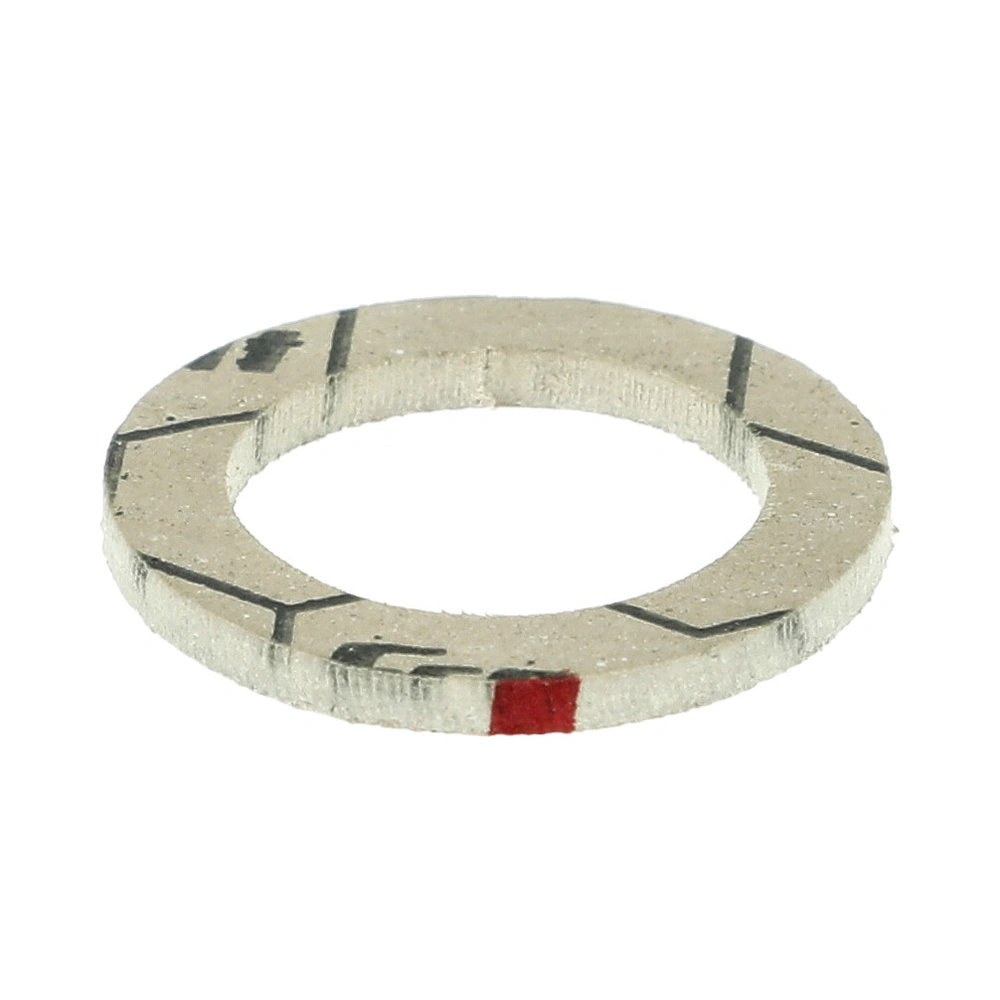

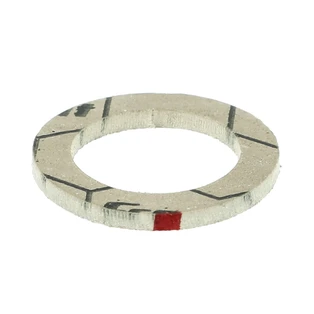

Gasket 25 x 34.5 x 2 mm for gas and water
OEG no.: 135487312
Universal gasket for gas and water. The innovative combination of aramid fibers and NBR achieves a better seal with increased adaptability. No comparison to conventional fiber and rubber gaskets. Approved...
All product informationRelated products
Suitable for drinking water
Approved for gas
Universal gasket for gas and water. The innovative combination of aramid fibers and NBR achieves a better seal with increased adaptability. No comparison to conventional fiber and rubber gaskets. Approved as a screw connection gasket for gas meters and for drinking water. The gasket replaces the black rubber gaskets with red marking strips.
For more information see Downloads
| OEG no. | 135487312 |
| Size: | 3/4" |
| Inside diameter [mm]: | 25 |
| Outer diameter [mm]: | 34.5 |
| Diameter [mm]: | 25 x 34.5 |
| Thickness [mm]: | 2 |
| Colour: | Light brown |
| Type: | NOVAPRESS 850 |
| Operating temperature [°C]: | -50 .. 110 |
| Pressure max. [bar]: | 5 |
| Standard: | ELL, W270, WRAS, DVGW, VP 401 |
| DIN: | 30653 |
| Weight [kg] | 0.01 |
| Notes |
Suitable for drinking water
Approved for gas
|
| Customs tariff number | 68159900 |
