GIS urinal element 114 cm 461621001
OEG no.: 816000803
OEG no. : 816000803

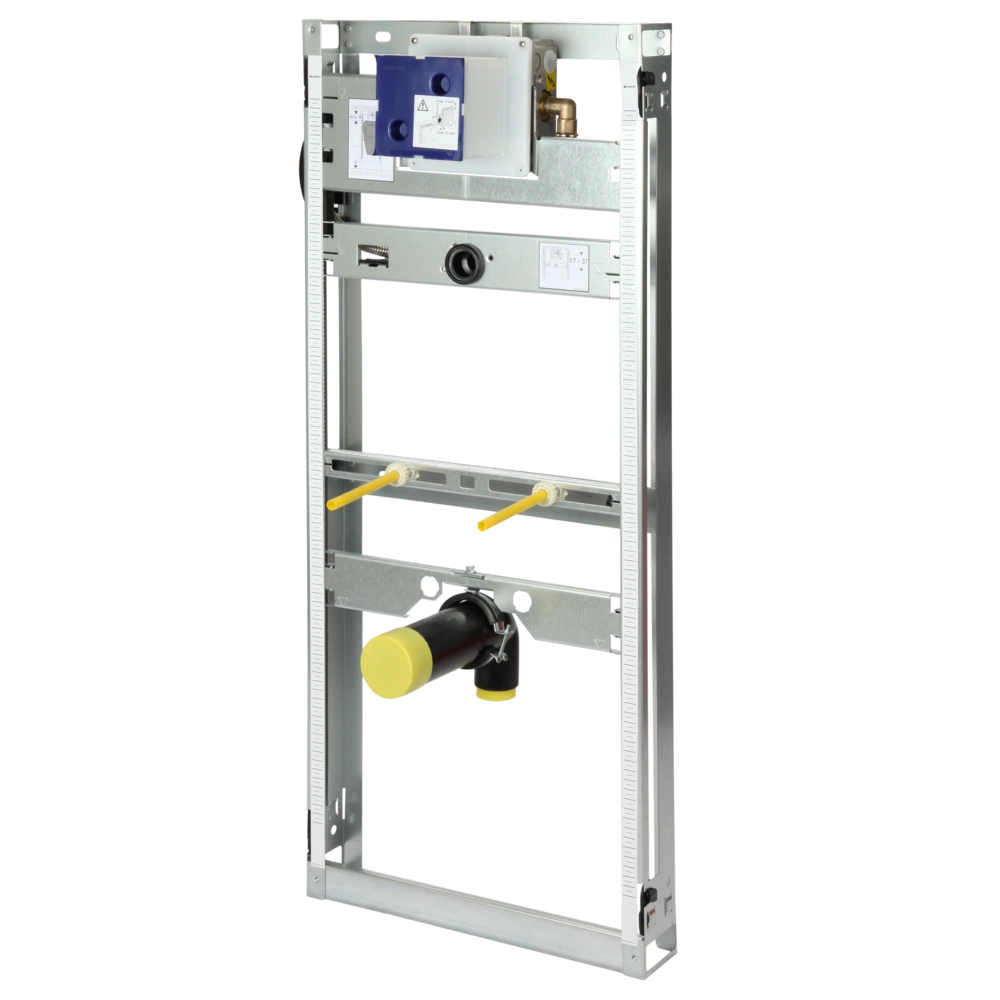

GIS element for urinals with a total height of 114 cm for installation in the GIS support system for prewalls, partition walls and free-standing walls...
All product information Scope of deliveryGIS element for urinals with a total height of 114 cm for installation in the GIS support system for prewalls, partition walls and free-standing walls. It has a zinc-plated support frame with 4 quick-action fasteners and height adjustment. The element is equipped with a universal trim set with stop valve for Public UR set for final installation. It is suitable for the Geberit concealed urinal control HyTouch as of 2009 and later.
| Scope of delivery: | |||
| 1 x | Fastening material | ||
| 1 x | Elbow tap connector R 1/2" | ||
| 1 x | Connecting pipe between inlet Ø 32 mm and urinal with seal | ||
| 1 x | Connection bend made of PE-HD Ø 63 / 50 mm | ||
| 1 x | Seal Ø 57 / 50 mm | ||
| 1 x | Protective cover with lid | ||
| 1 x | Protection plug | ||
| 1 x | protective cap | ||
| 2 x | Threaded rod M8 | ||
| 1 x | Urinal odour trap Ø 50 mm with seal | ||
For more information see Downloads
| OEG no. | 816000803 |
| Connection: | 1/2" |
| Manufacturer | Geberit |
| Manufacturer number | 461621001 |
| EAN | 4025416756590 |
| Weight [kg] | 3.5 |
| Customs tariff number | 84819000 |
