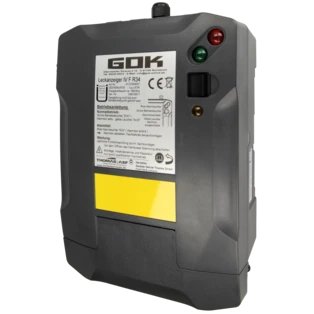

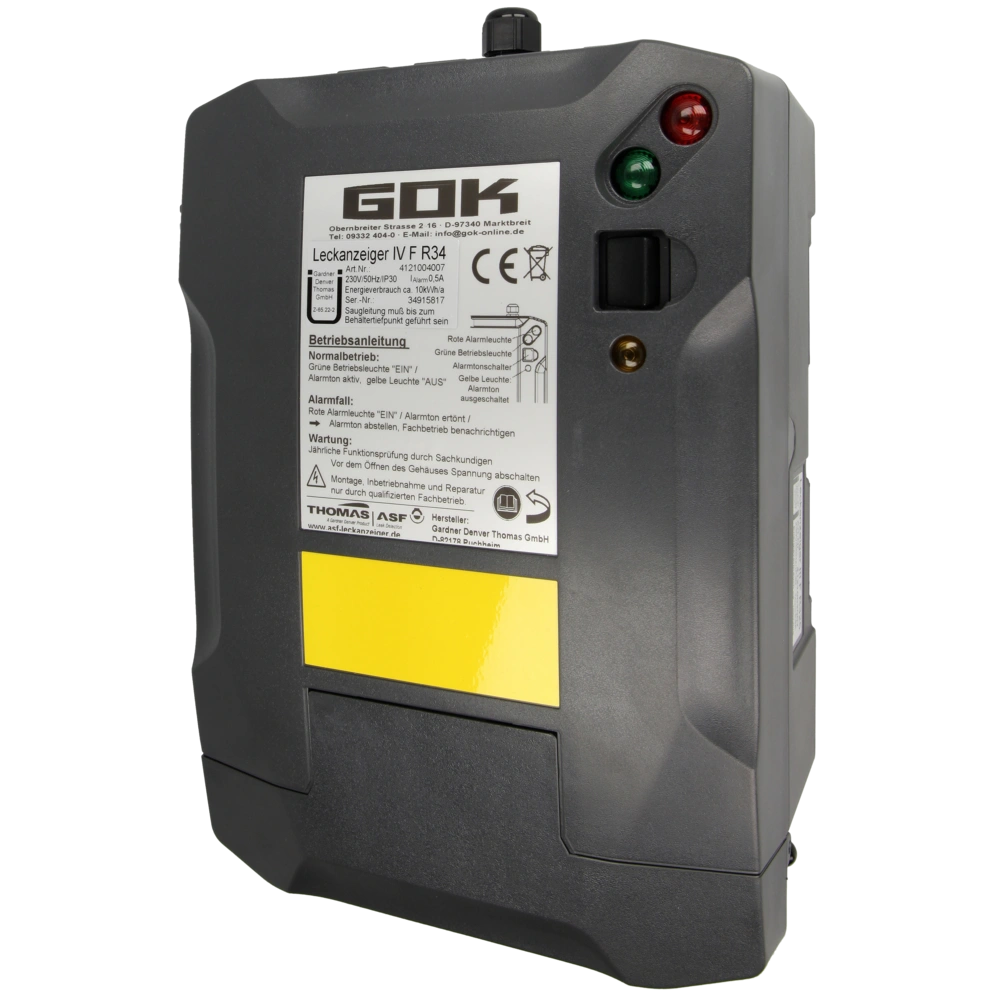

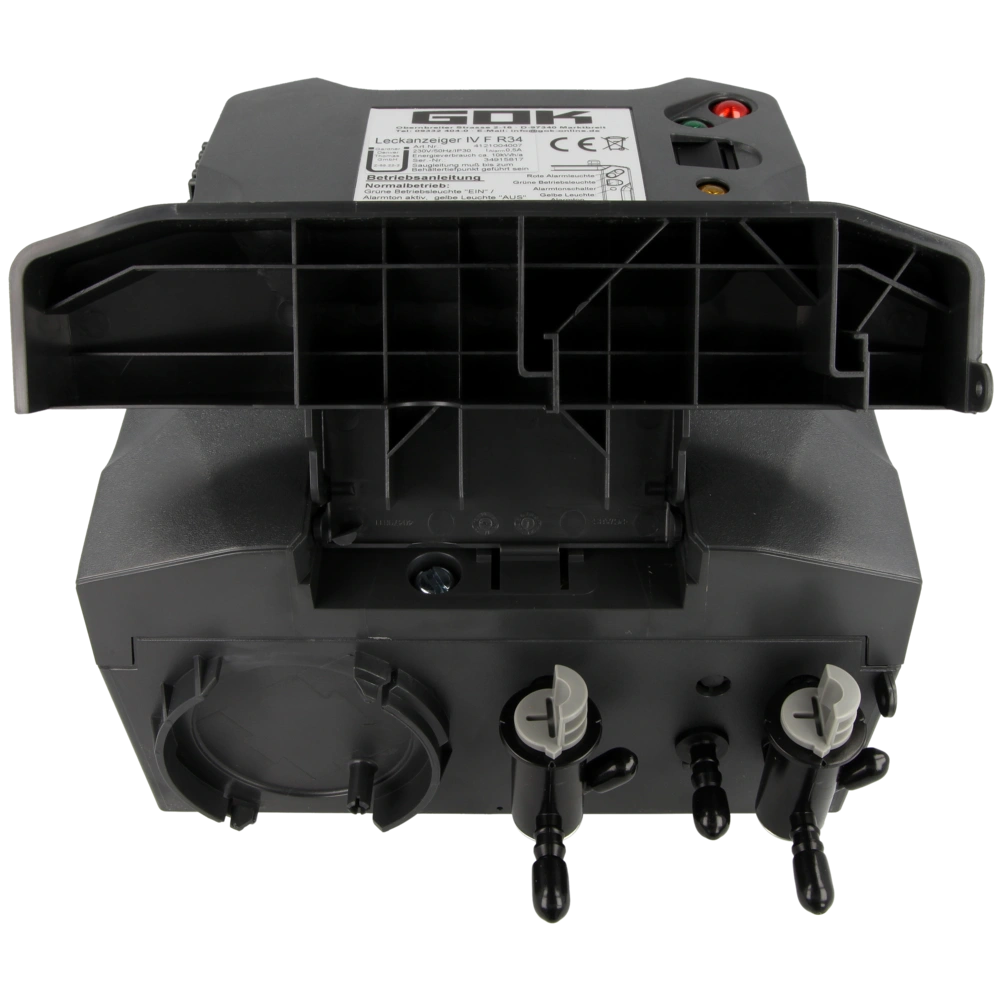

GOK vacuum leak detector ASF Vakumatik IV F, low-pressure

CAUTION:
Assembly and starting up of this leak detector have to be carried out by a specialist company with proven knowledge of leak detection systems according to § 19 I WHG.

Leak detection system Category 1 according to DIN EN 13610-1 and DIN EN 13610-2 as negative pressure system
Application as:
- Construction product for stationary systems for storing, filling and handling
water-hazardous substances:
Leak detector for vacuum systems for the application in facilities for the storage of fuels with a flashpoint above +55 °C, intended for the supply of heating systems in buildings.
Low-pressure version:
- Double-walled tanks as per DIN 6618-2 or DIN 6618-4
- Single-walled tanks as per DIN 6608, DIN 6616 (Form A); DIN 6619, DIN 6623, DIN 6624, DIN 6625
- Single- and double-walled tanks of approved design
Operating fluids:
- Mineral oil products with a flashpoint above +55 °C
- FAME
- Substances according to list of substances (please request if required)
Approval
- General Type Approval No. Z-65.22-2

For more information see Downloads
