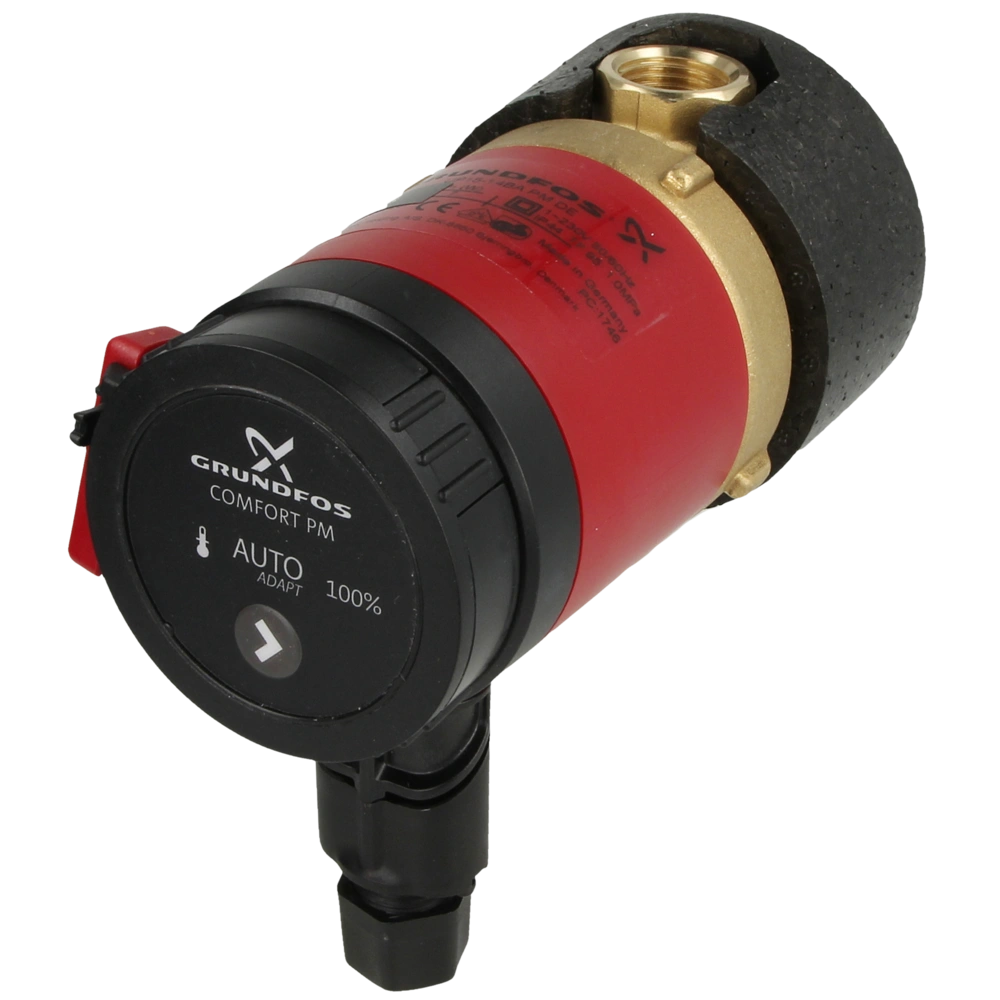

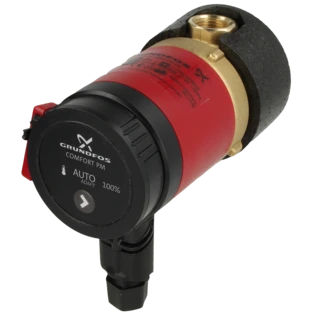

Grundfos UP 15-14 BA PM DHW circulation pump 97989267
OEG no.: 512262202
Domestic hot water circulation pump with spherical rotor and Autoadapt function (the pump adapts to the usual water consumptions in the building in order to save energy). Thermal insulation shell as standard...
All product informationDomestic hot water circulation pump with spherical rotor and Autoadapt function (the pump adapts to the usual water consumptions in the building in order to save energy). Thermal insulation shell as standard.
Technical data:
Pump medium: drinking water
Delivery flow Q max. [m³/h]: 0.8
Delivery head H max. [m]: 1.2
Temperature range [°C]: +2 up to +95
Operating pressure p max. [bar]: 10
Mains connection: 1~230 V / 50 Hz
Protection class: IP 44
Connection: Rp ½"
Overall length [mm]: 80
For more information see Downloads
| OEG no. | 512262202 |
| Pumped medium: | Drinking water |
| Delivery head [m]: | 1.4 |
| Media temperature [°C]: | 2 .. 95 |
| Operating pressure max. [bar]: | 10 |
| Connection: | Rp 1/2" |
| Installation length [mm]: | 80 |
| Density: | 983.2 kg/m³ |
| Flow rate: | max. 0.8 m³/h |
| Power consumption [W]: | 7 |
| Frequency: | 50 Hz |
| Rated voltage [V]: | 230 |
| Power consumption [A]: | 0.07 |
| Protection type [IP]: |
 IP44
|
| Manufacturer | Grundfos |
| Manufacturer number | 97989267 |
| Weight [kg] | 1.04 |
| Customs tariff number | 84137030 |
There are no questions available on this item yet
You have to be logged in to ask a question
04/12/2017, 21:06:27 of: Mr Charles
très bon produit
très bon produit, excellent fonctionnement
