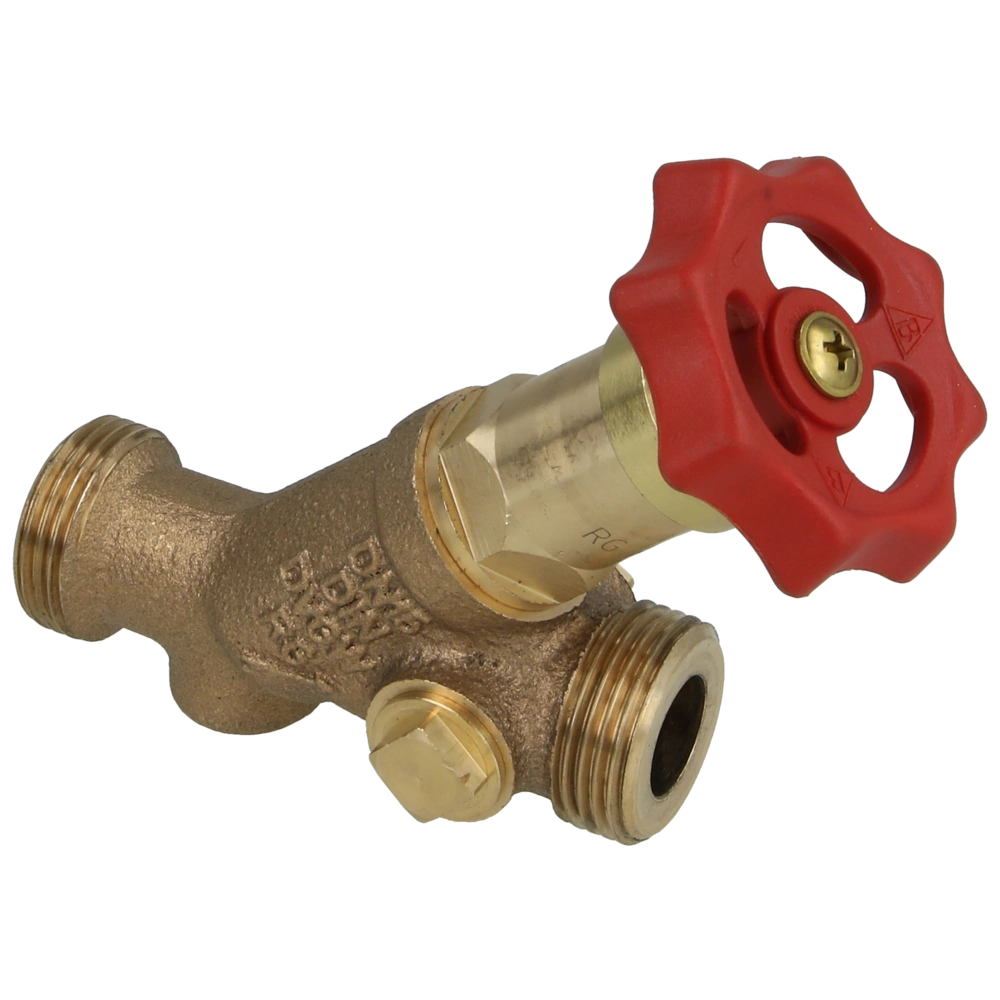

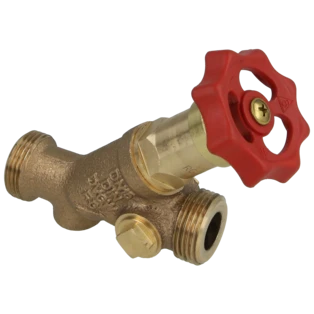

Gunmetal free-flow stop valve DN15 male thread 3/4" 3506155
OEG no.: 805010010
The Bender gunmetal free-flow valve is used for shutting off drinking-water installations during repair and maintenance works. It has a non-rising, long-life gunmetal grease chamber bonnet without dead space and plugs on both sides...
All product informationRelated products
stem non-rising
certified by DVGW
Suitable for drinking water
High Quality
The Bender gunmetal free-flow valve is used for shutting off drinking-water installations during repair and maintenance works. It has a non-rising, long-life gunmetal grease chamber bonnet without dead space and plugs on both sides. The flat EPDM seals are approved as per KTW / W270. All materials are compliant with drinking water as per DIN 50930 Part 6 or UBA list 03/2018.
For more information see Downloads
| OEG no. | 805010010 |
| Design: | Non-rising stem |
| Nominal size: | DN15 |
| Type: | 3506 |
| Total length [mm]: | 80 |
| Connection: | 3/4" ET |
| Pressure stage PN [bar]: | 16 |
| Standard: | DIN EN 1213 |
| Total height: | 73 mm |
| Seal: | EPDM |
| Sound insulation class: | 1 |
| Draining facility: | Without - plugs on both sides |
| Operating temperature [°C]: | 90 |
| Manufacturer | Bender |
| Manufacturer number | 3506155 |
| EAN | 4038892037190 |
| Weight [kg] | 0.39 |
| Notes |
stem non-rising
certified by DVGW
Suitable for drinking water
High Quality
|
| Customs tariff number | 84818079 |
