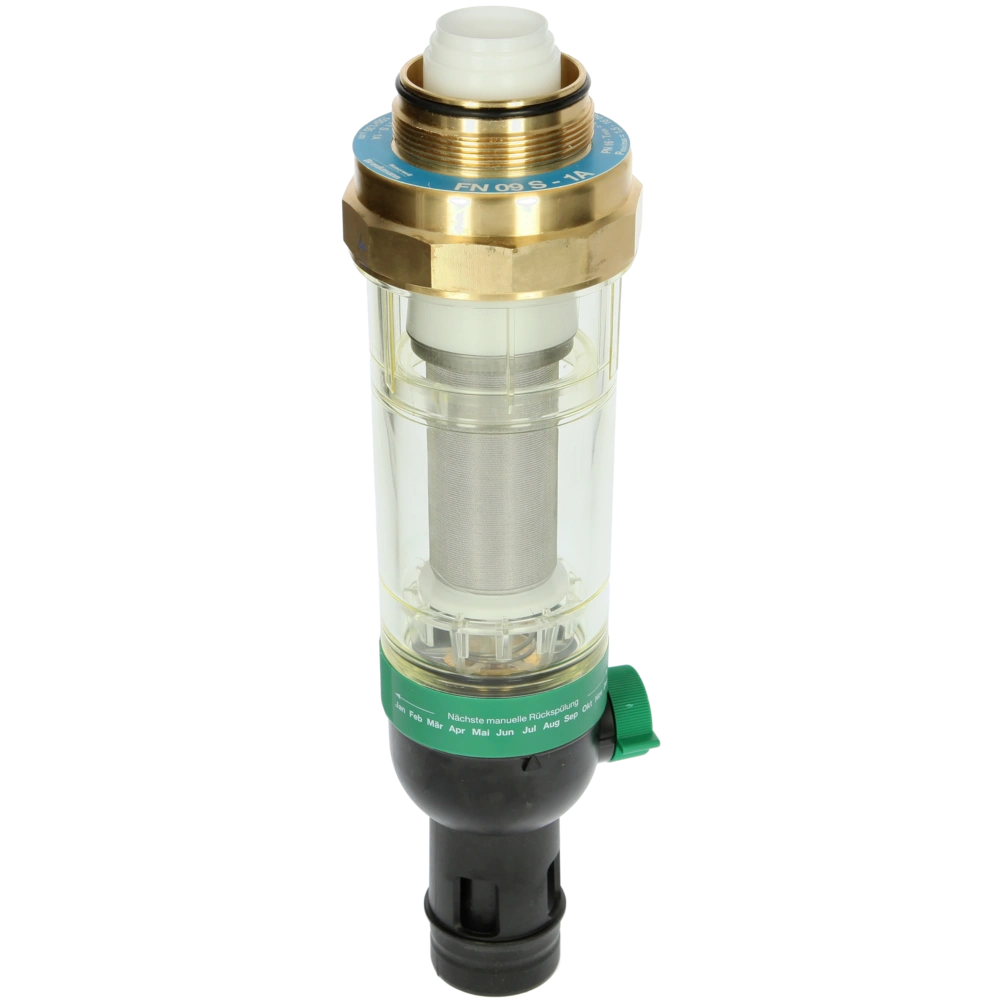

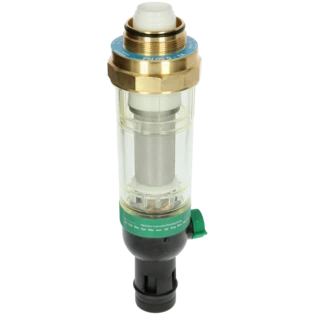

HABEDO retrofit filter FN09S-1"A for 1" + 1¼"

Backflushing and rinsing possible
Habedo retrofitting filter FN09S reliably prevents ingress of particles in the water supply system
- Patented and high-efficient backflushing system
- Filter is cleaned by means of a powerful and concentrated water jet
- The particles and the backflushing water are flushed out when the ball valve is opened (can be automated with backflushing automatic Z11S).
- The integrated drain connection is equipped with breathers according to EN 1717
- Direct connection to the waste water pipe.
- The memory ring reminds of the next manual backflushing.
- With double ring spanner for filter cup
- DIN/DVGW-approved together with pressure reducer D06F.
- With double ring spanner for filter cups and bonnet
- Ring spanner for housing ring
For retrofitting to pressure reducer D06F
Type FNS09S-1A:
- 1" only for 1977 - 1991
- 1 1/4" for 1977- 1996
Type FN09S-1AN
- 1" as of 1991
- 1 1/4" as of 1996
Variants with transparent filter cup:
Application range:
- Water up to 40°C.
- Operating pressure min. 1.5 bar, max. 16 bar.
- Top/bottom width 105/135 µm

For more information see Downloads
