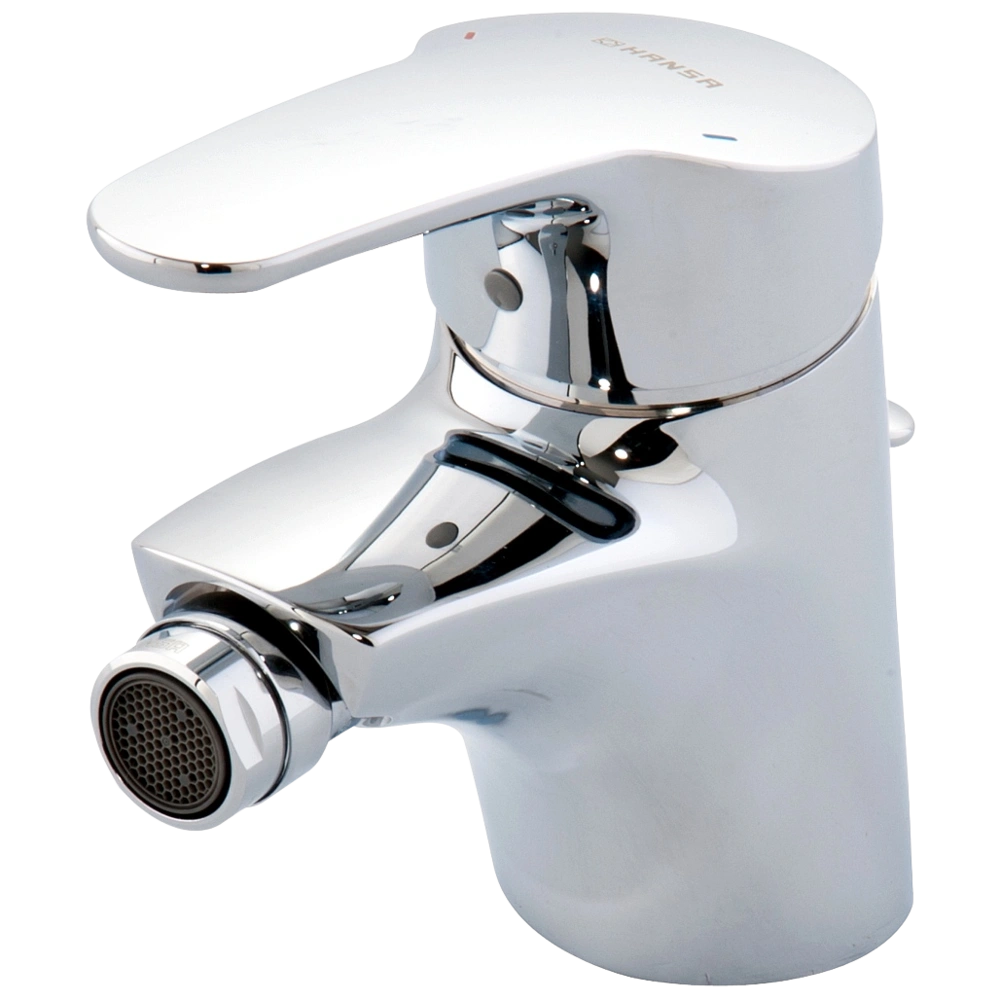

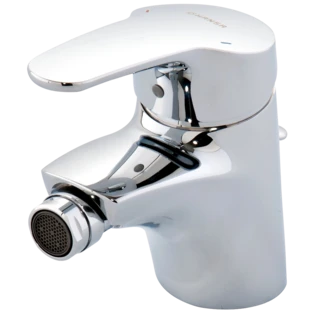

HANSAMIX single-lever bidet mixer 01063283
OEG no.: 800008904
Single-lever bidet mixer with pop-up waste set for single-hole installation. The tap mixer has an operating lever with hot and cold symbols and a ø 4.8 control cartridge with ceramic sealing washers for water rate and temperature adjustment...
All product information Scope of deliverySingle-lever bidet mixer with pop-up waste set for single-hole installation. The tap mixer has an operating lever with hot and cold symbols and a ø 4.8 control cartridge with ceramic sealing washers for water rate and temperature adjustment. The aerator provides a constant flow rate independent from the flow pressure. The integrated temperature limiter can be used for the adjustment of a hot-water lock.
Thanks to the rapid installation system, it is easy to install the mixer. The connection is via copper pipes.
| Scope of delivery: | |||
| 1 x | bidet mixer | ||
| 1 x | pop-up waste set 1 1/4" | ||
| 1 x | rapid installation system | ||
For more information see Downloads
| OEG no. | 800008904 |
| Application : | Bidet |
| Waste set: | Pull rod |
| Spout height [mm]: | 68 |
| Projection [mm]: | 113 |
| Height of tap [mm]: | 134 |
| Material: | Brass |
| Mixer colour: | Chrome |
| Tap fitting installation: | Single-hole installation, Floor mounting |
| Type of connection: | High pressure |
| Spout: | Fixed |
| Connection size supply hose: | 3/8" IT |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 4.2 .. 7.8 |
| Pull-out spout: | No |
| Spout swivelling: | No |
| Cartridge: | HANSA Eco Ø 46 mm |
| Water temperature max. [°C]: | 80 |
| Tap holes: | 1 |
| Spray head: | No |
| Tap fitting shape: | Half-round |
| Fitting operation: | Single-lever mixer tap |
| Design line: | Hansamix |
| Manufacturer | HANSA |
| Herstellernummer | 01063283 |
| EAN | 4015474271302 |
| Weight [kg] | 2.18 |
| Customs tariff number | 84818011 |
There are no questions available on this item yet
Technical data sheet (PDF)
- 1.03MB
