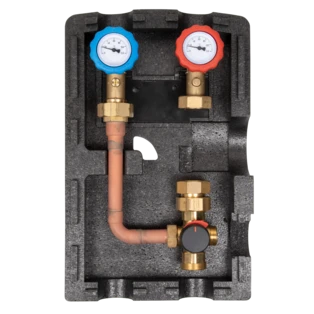

Heating circuit set mixed circuit 4-way without pump
OEG no.: 512245111

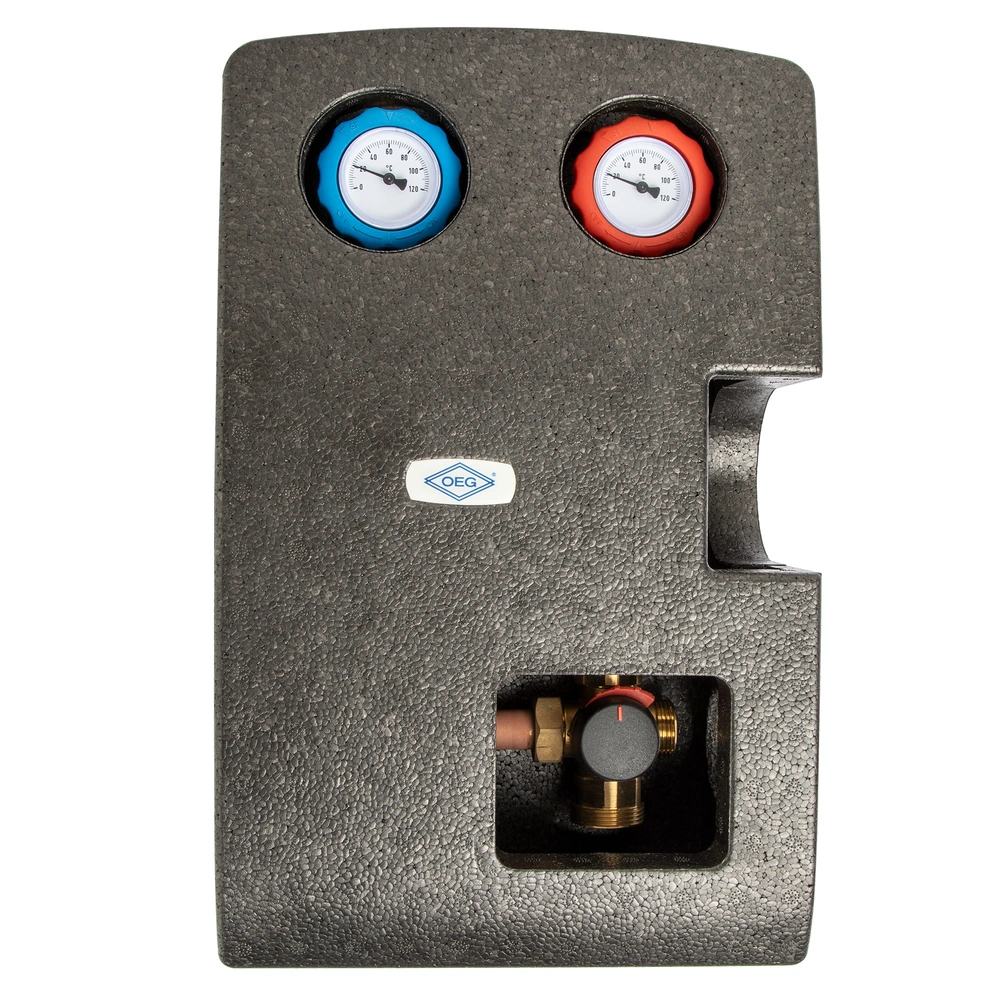

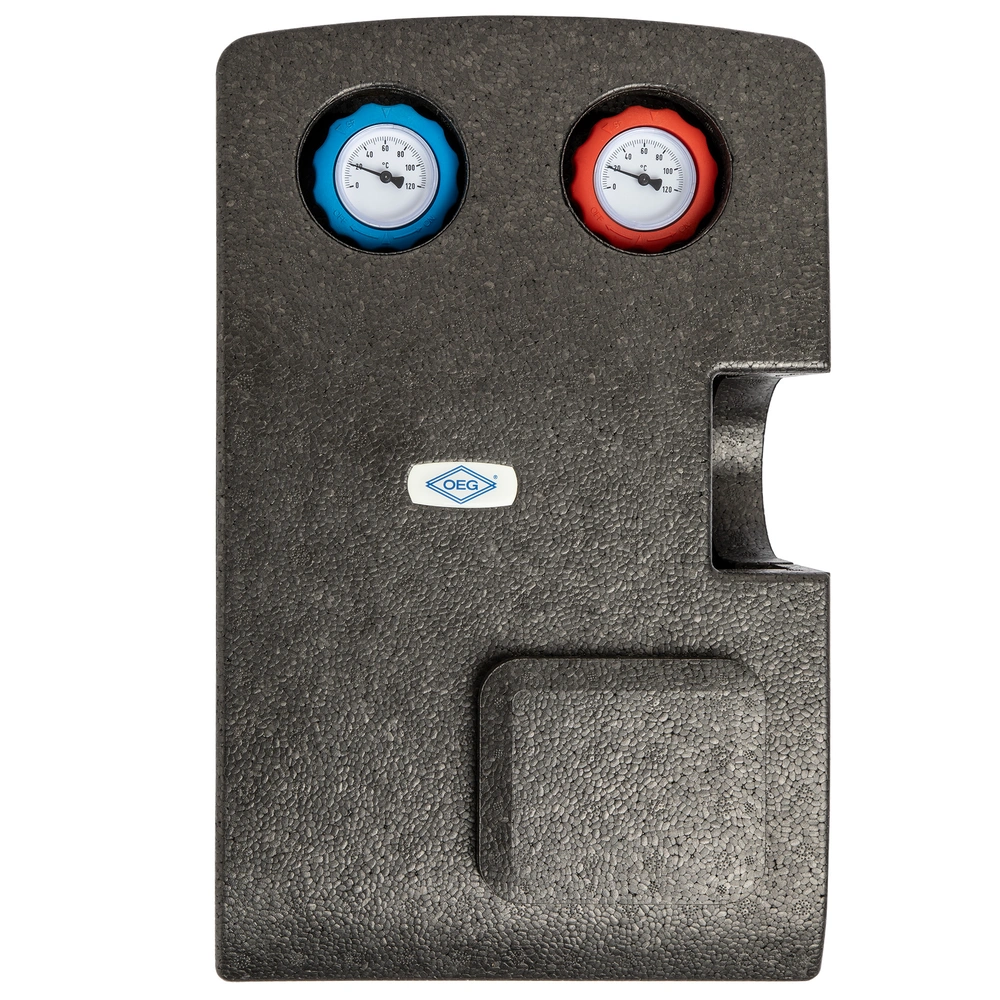

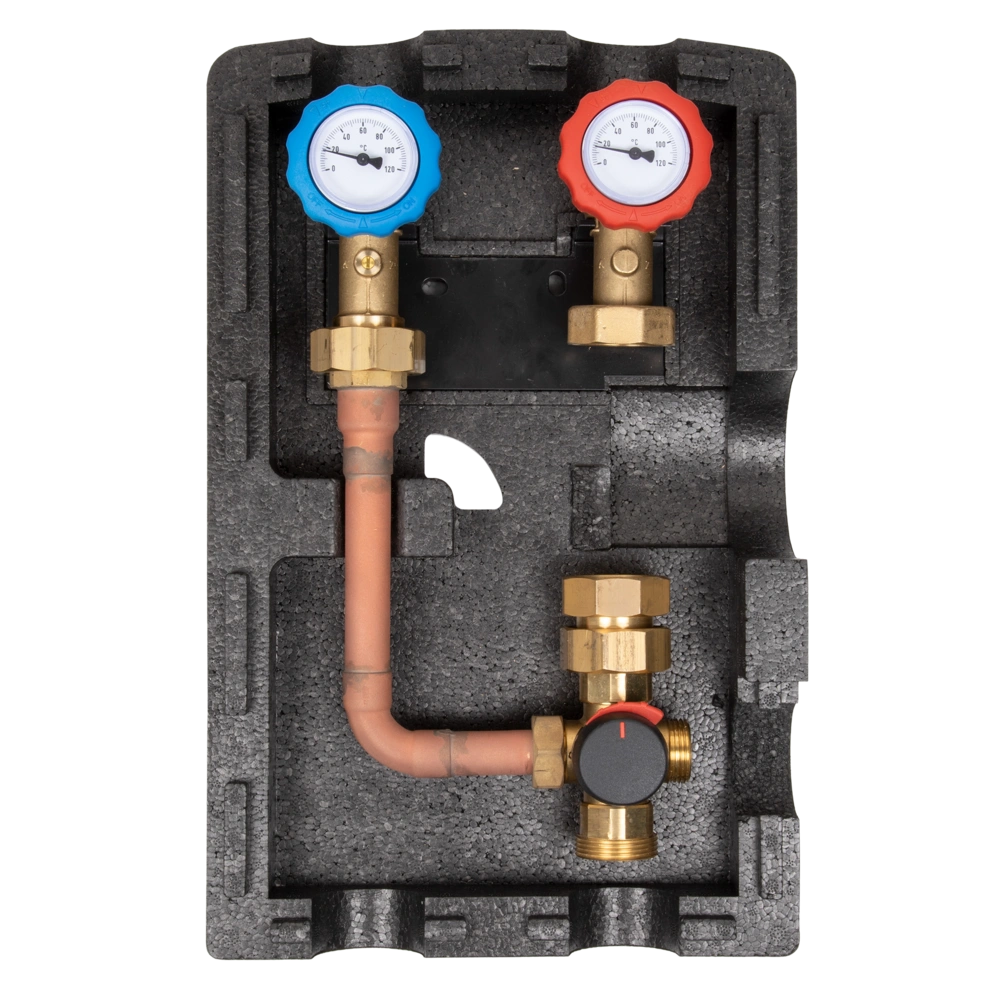

Pump group with ESBE VRG 4-way mixer for solid fuel boilers. The 4-way mixer is used to prevent condensation or as a return flow booster. Circulation pumps with an overall length of 130 mm can be used...
All product informationPump group with ESBE VRG 4-way mixer for solid fuel boilers. The 4-way mixer is used to prevent condensation or as a return flow booster. Circulation pumps with an overall length of 130 mm can be used. The integrated thermometers on the ball valves allow easy visual inspection. The cut-out in the front insulation is suitable for CPAE pumps with display. The insulation can be adapted for other pump types.
| OEG no. | 512245111 |
| Dimensions: | 470 x 290 x 180 mm |
| Connection boiler circuit: | 1 1/4" ET |
| Connection heating circuit: | 1" IT |
| Pressure max. [bar]: | 6 |
| Suitable for pump connection size [inch]: | 1 1/2 |
| Suitable for overall pump length [mm]: | 130 |
| Weight [kg] | 1.25 |
| Customs tariff number | 84813099 (PL) |
