OEG no. : 512245142
Related products
Combined outflow and return flow distributor for wall mounting or direct mounting on the boiler. The thermally separated chamber for outflow and return flow is positioned above each other and can be insulated with a prefabricated insulation...
All product informationRelated products

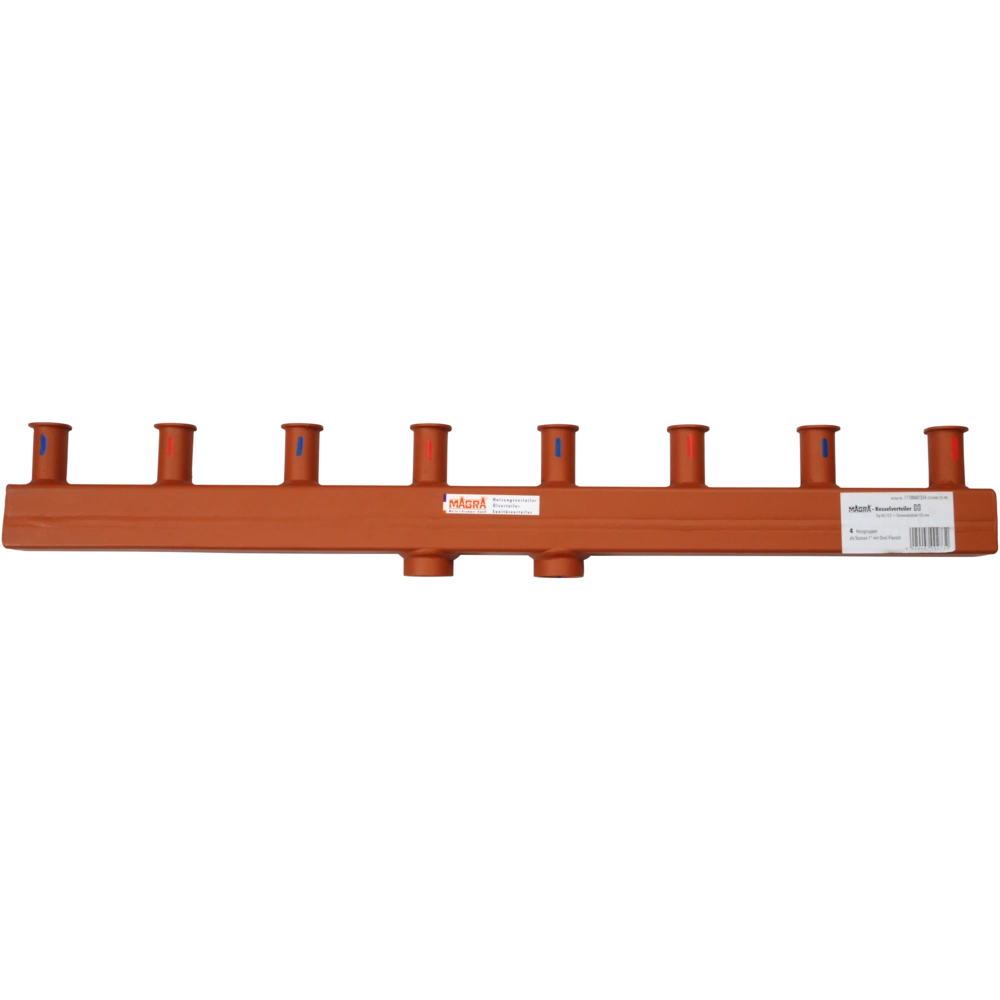

Combined outflow and return flow distributor for wall mounting or direct mounting on the boiler. The thermally separated chamber for outflow and return flow is positioned above each other and can be insulated with a prefabricated insulation.
For more information see Downloads
| OEG no. | 512245142 |
| Number of heating circuits: | 4 |
| Operating temperature max. [°C]: | 110 |
| Operating pressure max. [bar]: | 6 |
| Material: | Steel sheet |
| Type of connection: | Flange connector |
| Connection boiler circuit: | 1 1/4" socket |
| Connection heating circuit: | 1" flange connector |
| Inside micrometer [mm]: | 125 |
| Flow rate [m³/h]: | 3 |
| Surface: | Primed |
| Manufacturer | Magra |
| Weight [kg] | 2.5 |
| Customs tariff number | 84039090 |
Question:
bonjour, ce collecteur est il livré avec les raccords (bague raccords union 1"1/2) ??
Answer OEG: Bonjour,
Le collecteur est livré sans bagues raccords union.
Cordialement,
Votre équipe OEG
