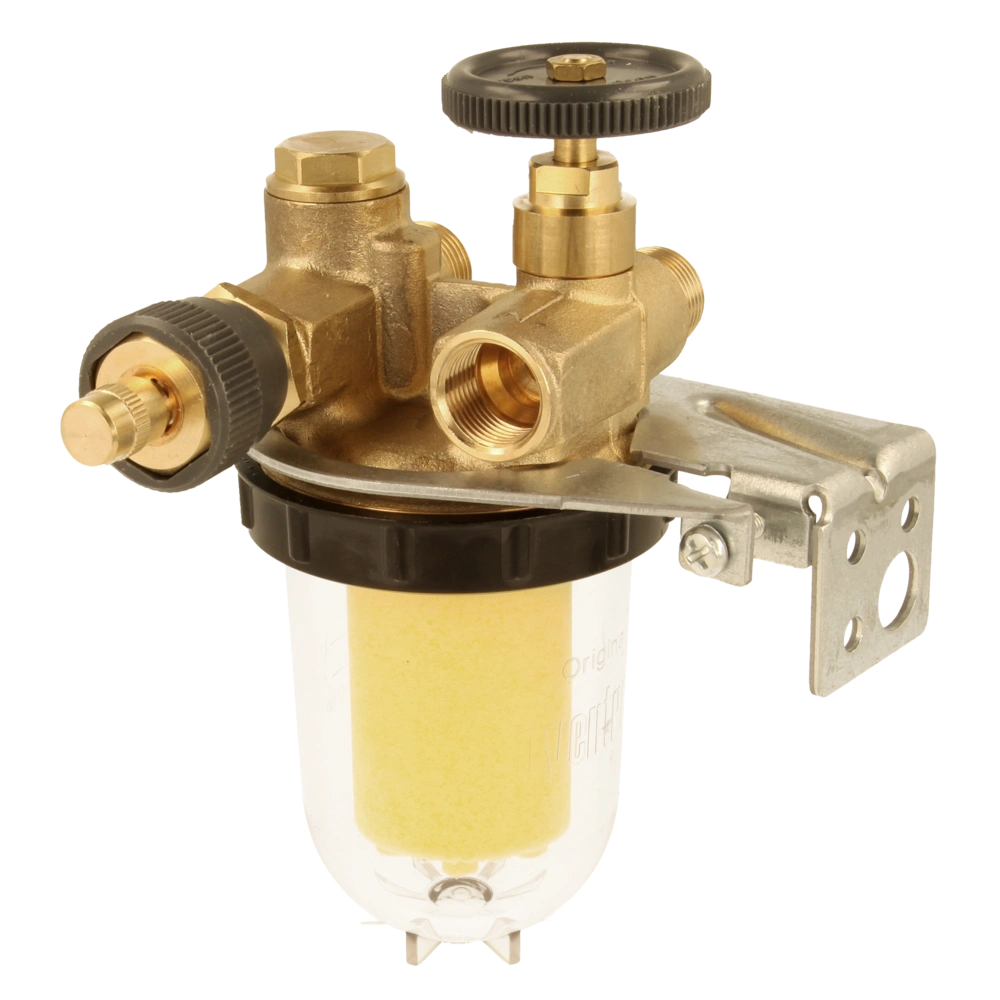

Oventrop Heating oil filter with return flow feed Oilpur 3/8" for single-pipe system 2122561

OEG no.: 116300200
  • Also replaces
    schließen Also replaces: 116000200 (GOK fuel oil filter with return feed 500 ERAZ)

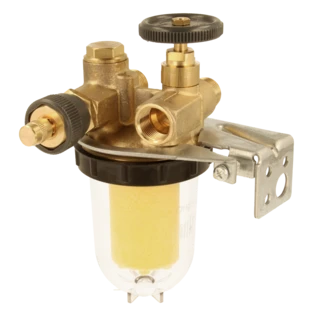

Zoom Heating oil filter with return flow feed Oilpur 3/8" for single-pipe system
OEG no. : 116300200

Oventrop heating oil filters are made for one-pipe systems with return flow feed. With return flow feed systems, the heating oil on the suction side reflowing from the burner pump on the return side is directly fed back to the burner pump via a pressure valve in the filter head...

All product information
Wipe 'n' Buy ®
Wipe 'n' Buy

Oventrop heating oil filters are made for one-pipe systems with return flow feed. With return flow feed systems, the heating oil on the suction side reflowing from the burner pump on the return side is directly fed back to the burner pump via a pressure valve in the filter head. Due to the mounting clamp, the filter can be mounted on the right or on the left. By insert choice (sintered plastic, sintered bronze, nickel screen cloth or felt) or by use of the spin-on filter, filters can be optimally adapted to specific circumstances.

This heating oil filter is equipped with a fast-acting isolating valve and double O-ring sealing. It also has a vent valve for the start-up. Body, valve and mounting bracket are made of brass, as is the mounting bracket. The union nut is made of a zinc-alloy with a black surface. The filter cup for the suction operation is made of Cellidor. The connection with a female thread compression fitting is intended for the tank side and with the male thread for the suction connection. The compression fitting required on the burner side of 6, 8, 10 or 12 mm must be ordered separately.


For more information see Downloads


OEG no. 116300200
Nominal size: DN10
Operating temperature [°C]: 40
Length x Width x Height [mm]: 148 x 100 x 72
Connection side on the burner side: 3/8" ET
Connection size on the tank side: 3/8" IT
Manufacturer Oventrop
Manufacturer number 2122561
EAN 4026755151756
Also replaces 116000200
Weight [kg] 0.83
Notes
Customs tariff number 84212980 (EEC)
en
Question:

Pouvez me donnez les references pour une cartouche filtre un joint et la clef de demontage pour ce filtre oventrop

Answer OEG: Bonjour, Cartouche: code art. OEG: Joint: code art. OEG: Clé: code art. OEG Cordialement, Votre équipe OEG

You have to be logged in to ask a question

Average customer assessment
Bewertungen
en 25/08/2020, 19:49:16 of: Mr action pro chauffage

tres bien conçu

d'une belle qualité pour un fonctionnement optimum

en 06/02/2017, 16:36:38 of: Mr Feld

gut

Der Oventrop Heizölfilter sehr gut verarbeitet
