Impressed current anode set for stainless steel cylinders 800 L
OEG no.: 517807790
Impressed current system for permanent corrosion protection of hot water cylinders.
The impressed current anode supplies an electronic protective current which protects the cylinder against corrosion...
All product information Scope of deliveryRelated products
Impressed current system for permanent corrosion protection of hot water cylinders.
The impressed current anode supplies an electronic protective current which protects the cylinder against corrosion.
It reliably indicates any system failure and reduces maintenance to a minimum.
The system consists of two components: the Correx® potentiostat and the Correx® titanium anode with mixed oxide coating, which are connected by a cable.
The power supply is provided via a mains plug.
Note:
The storage capacity increases the fewer heat exchangers are installed.

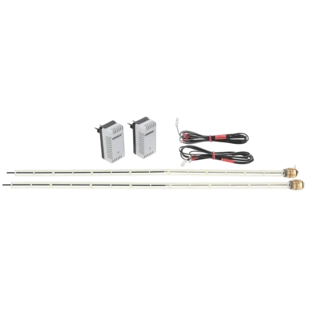

| Scope of delivery: | |||
| 2 x | Titanium electrode Ø 2 x 747 mm, 3|4" for insulated installation | ||
| 2 x | Potentiostat FM 1.9-924 | ||
| 2 x | connection cable | ||
For more information see Downloads
| OEG no. | 517807790 |
| Suitable for storage tank type: | Stainless steel storage tank |
| Suitable until : | 1,000 litres - without heat exchanger, 1,000 litres - 1 heat exchangers, 800 litres - 2 heat exchangers |
| Set no.: | 8 |
| Plug type: | Euro connector |
| Anode screw-in thread: | M8 x 30 |
| Voltage [V]: | 230 |
| Cable length: | 4.5 |
| Anode length [mm]: | 710 |
| Manufacturer | Magontec |
| Brand | Correx |
| Weight [kg] | 1.3 |
| Customs tariff number | 90328900 |
