The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat generators. Mounted quickly and ready to operate instantly, the heater convinces with its heating capacity, attractive design and the pleasant thermal radiation...
All product information Scope of deliveryRelated products
Now with 10 years OEG warranty
High Quality
The infrared heating element is a flexible, low-cost and easy-to-install alternative to conventional heat generators. Mounted quickly and ready to operate instantly, the heater convinces with its heating capacity, attractive design and the pleasant thermal radiation. It is suitable for low-energy houses and as an option when modernising. Customers also prefer these infrared elements as a single-room addition to existing heat sources.

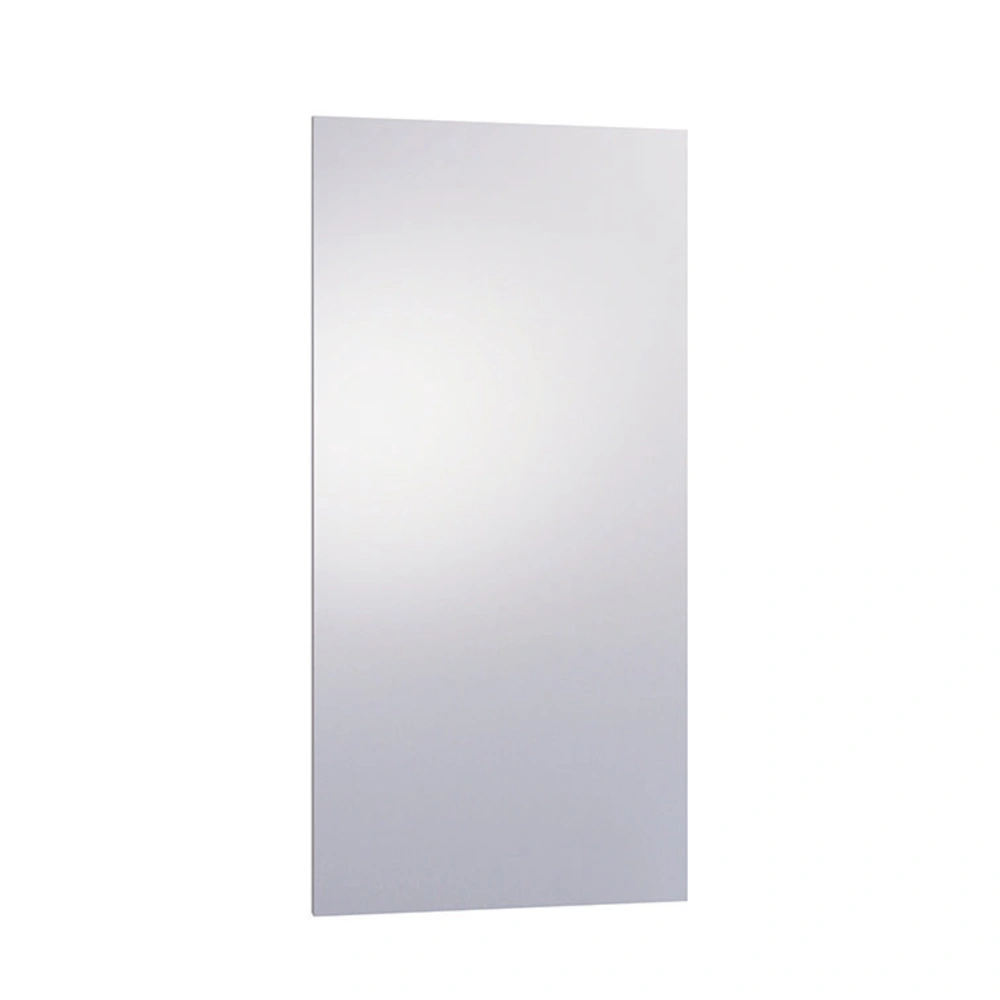

The frameless panel heating element has been designed for surface mounting on the wall. The glass plate made of Float glass low on iron oxide can be written on with board chalk.
The element is made of single-pane safety glass. At the back a heating layer converts electrical energy into heat. This layer is reinforced fibreglass embedded in a plastic mass. The heating element can be mounted on the wall in portrait or landscape format.
Note:
The heating element is supplied without safety plug and must only be installed by a specialist.
| Scope of delivery: | |||
| 1 x | heating element | ||
| 1 x | Wall holder | ||
| 4 x | screw M5 x 12 mm | ||
| 1 x | installation instructions | ||
For more information see Downloads
| OEG no. | 800024320 |
| Model: | 540W |
| Output [W]: | 540 |
| Installation: | Surface-mounted |
| Voltage [V]: | 230 V ~ |
| Rated current: | 2.3 A |
| Type: | Mirror heating element |
| Length x Width x Height: | 1,200 x 600 x 28 mm |
| Cable length: | 1.2 |
| Temperature [°C]: | 80 |
| Manufacturer | Vitramo |
| Manufacturer number | VM12060 |
| EAN | 4250939303543 |
| Weight [kg] | 19.2 |
| Notes |
Now with 10 years OEG warranty
High Quality
|
| Customs tariff number | 85162999 |
