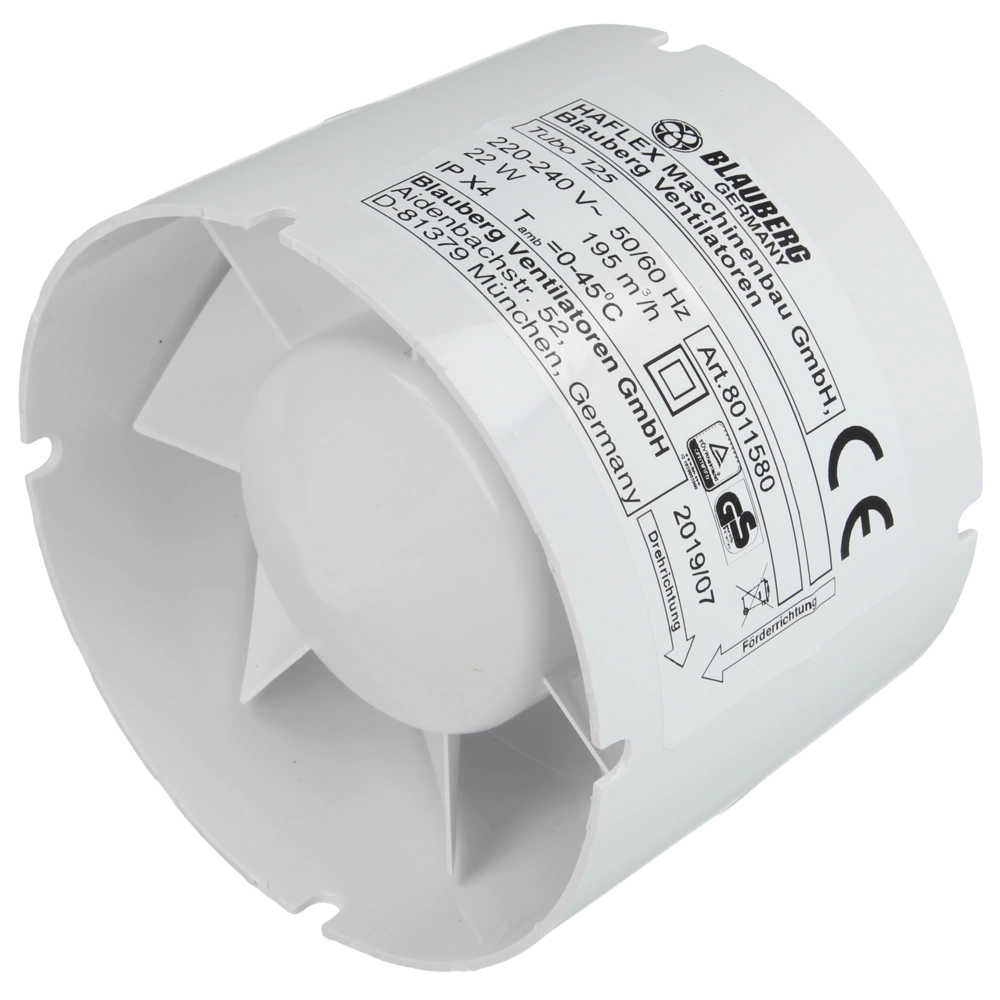

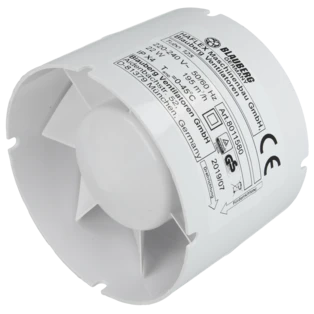

Inline fan for supply and extract ventilation of bathroom, WC and other rooms. It is simply inserted into a round duct. The air direction is marked by an arrow - depending on the direction of insertion,...
All product informationGS-certified
CE
Inline fan for supply and extract ventilation of bathroom, WC and other rooms. It is simply inserted into a round duct. The air direction is marked by an arrow - depending on the direction of insertion, supply or extract ventilation is achieved. The fan can be inserted in horizontal or vertical ducts.
For more information see Downloads
OEG no. | 610601190 |
Type: | Axial fan |
Pipe diameter [mm]: | 125 |
Speed max. [1/min]: | 2,400 |
Output [W]: | 16 |
Power consumption [A]: | 0.10 |
Delivery rate [m³/h]: | 195 |
Sound pressure level [dB]: | 39 |
Protection type [IP]: |
IPX4 |
Mounting type: | Pipe insertion |
Manufacturer | Blauberg |
Manufacturer number | 8011580 |
EAN | 4058448011580 |
Weight [kg] | 0.66 |
Notes |
GS-certified CE |
Customs tariff number | 84145100 |
