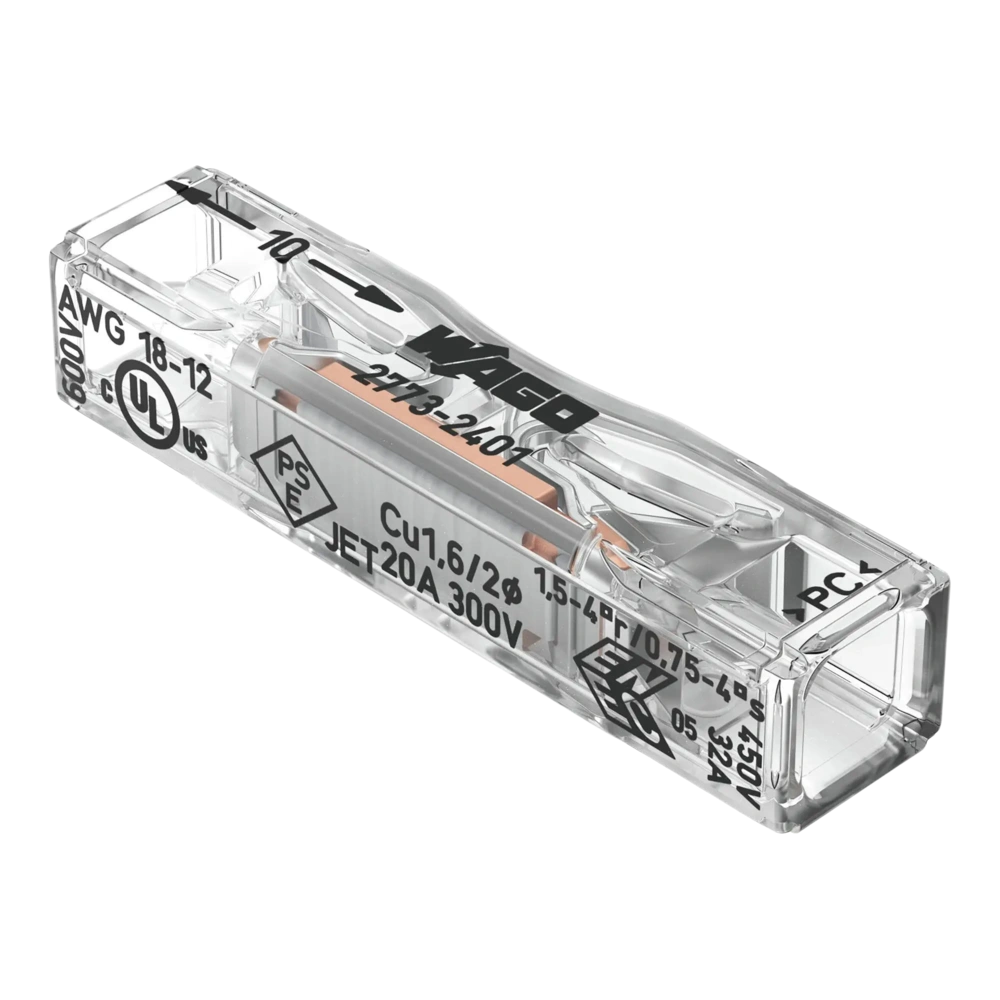

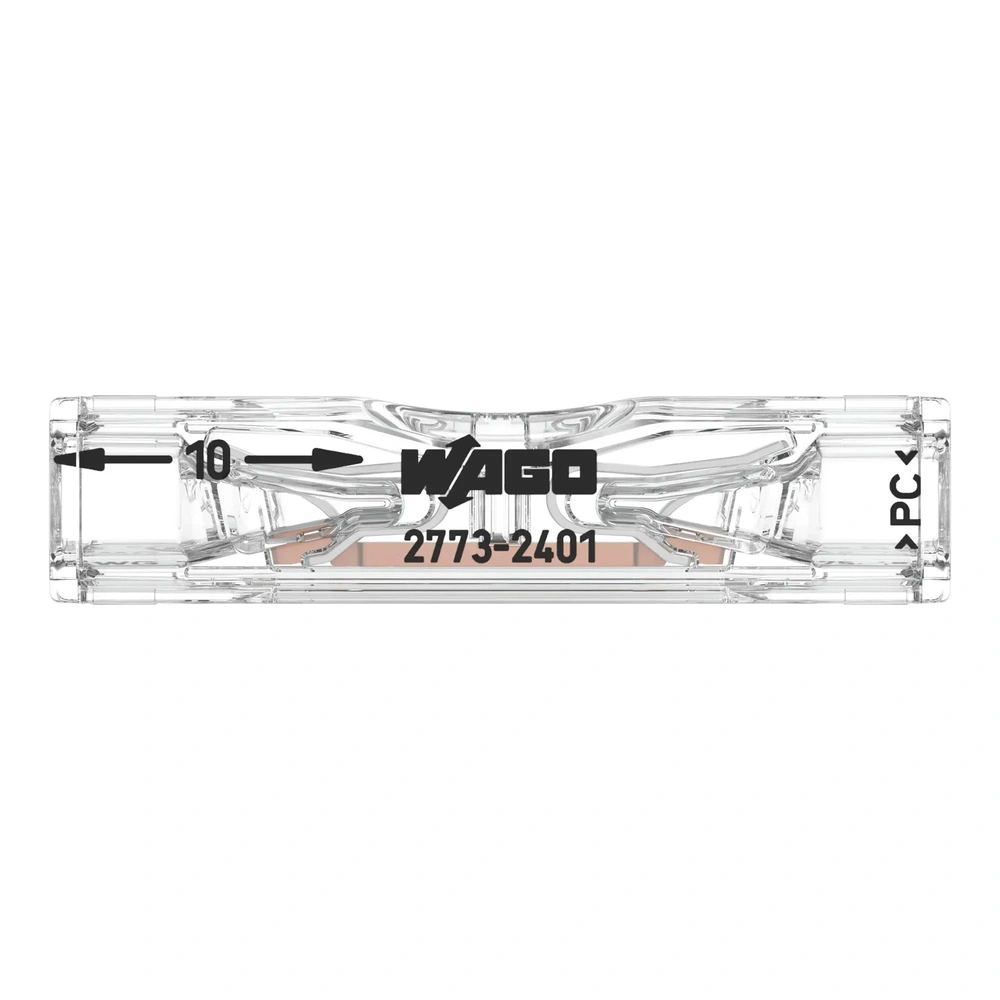

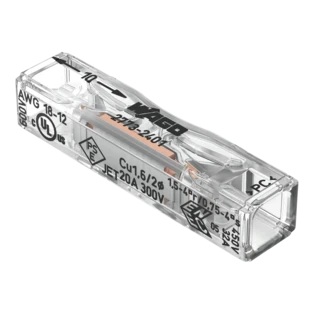

Inline splicing connector for conductors 0.75 – 4.0 mm² 2773-2401
OEG no.: 703000075
Inline splicing connector for all types of conductors from 0.75 to 4 mm². With plug-in technology for a tool-free assembly of solid and stranded conductors into one cable. The slim and transparent...
All product informationInline splicing connector for all types of conductors from 0.75 to 4 mm². With plug-in technology for a tool-free assembly of solid and stranded conductors into one cable. The slim and transparent connector can be mounted quickly and easily and provides safe contact.
For more information see Downloads
| OEG no. | 703000075 |
| PU | 100 pieces |
| Series: | 2,773 |
| Cable cross-section solid [mm²]: | 0.75 .. 4 |
| Cable cross-section stranded [mm²]: | 1.5 .. 4 |
| Stripping length [mm]: | 10 .. 11 |
| Length x Width x Height [mm]: | 29.5 x 6.8 x 6.15 |
| DIN: | EN 60664 |
| Voltage [V]: | 450 |
| Rated current [A]: | 32 |
| Colour: |
 transparent
|
| Material: | Polycarbonate, E-Cu pure tin-coated |
| Processing temperature [°C]: | -35 .. 60 |
| Permanent temperature max. [°C]: | 105 |
| Manufacturer | Wago |
| Manufacturer number | 2773-2401 |
| EAN | 4066966321630 |
| Weight [kg] | 0.1 |
| Customs tariff number | 85369010 (CH) |
