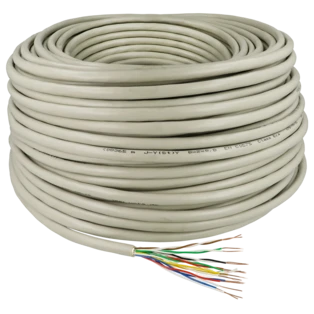

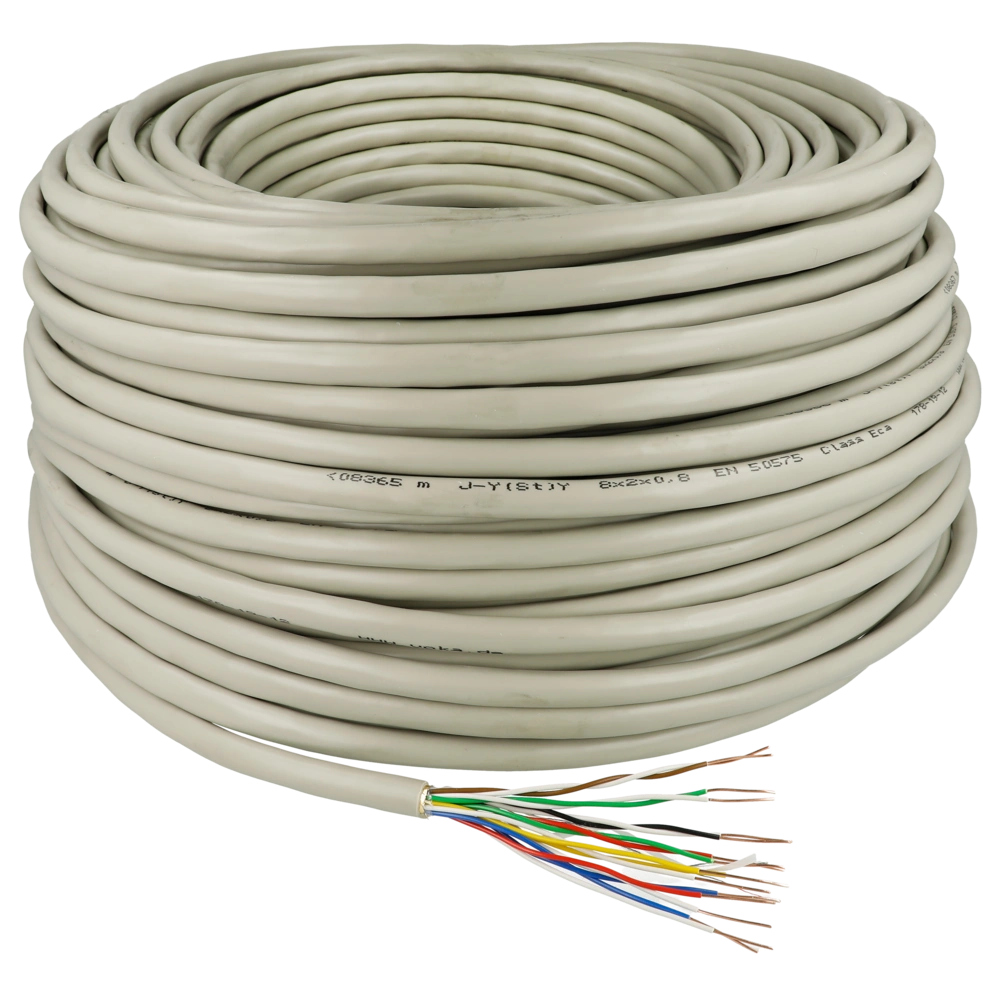

Installation cable 8 x 2 x 0.8 mm² J-Y(St)Y
OEG no.: 701000414
Data cable for transmission of digital and analogue signals. Suitable for fixed installations in dry and wet interiors. The cable can be used for applications such as burglar alarm systems, intercoms,...
All product information
PU
CE
Data cable for transmission of digital and analogue signals. Suitable for fixed installations in dry and wet interiors. The cable can be used for applications such as burglar alarm systems, intercoms, telecommunication systems and others in low-voltage range.
| OEG no. | 701000414 |
| PU | 100 m ring |
| Number of twin cores: | 8 |
| Wire identification: | J-Y (St) Y 8 x 2 x 0.8 |
| Wire cross-section [mm²]: | 0.8 |
| Copper content [kg/km]: | 82.0 |
| Outer diameter [mm]: | 10.2 |
| Temperature range static [°C]: | -30 .. 70 |
| Standard: | DIN VDE 0815 |
| Insulation: | PVC |
| Test voltage [V]: | 800 |
| Weight [kg] | 17 |
| Notes |
PU
CE
|
| Customs tariff number | 85444920 (IT) |
Question
(Wire cross-section [mm²]: 0.6 | Number of twin cores: 2 | PU: 100 m ring)
le cable fait 0,6mm de diametre ou 0.6mm2 de section? 0,6mm2 parait gros pour du cable bus. Quel interet dans ce cas d'avoir du 0,8?
Answer OEG:
0,6mm² est la section de chaque conducteur
Question
(Wire cross-section [mm²]: 0.8 | Number of twin cores: 2 | PU: 100 m ring)
Is this cable shielded?
Answer OEG:
oui le cable a une gaine de protection
Question
(Wire cross-section [mm²]: 0.8 | Number of twin cores: 2 | PU: 100 m ring)
Hello. May we use this cable for 240V AC. Ie 4 wires zone valves and things like that. Thank you
Answer OEG:
For example, PVC control cable 4 x 0.75 mm² with protective conductor or PVC control cable 4 x 0.75 mm² without protective conductor would be suitable for this.
Question
(Wire cross-section [mm²]: 0.6 | Number of twin cores: 2 | PU: 100 m ring)
Bonjour Ce câble est il blindé? convient-il pour la communication BUS (régulation de chaudière) Merci
Answer OEG:
Bonjour,
Oui, ce câble est blindé et convient pour le pilotage de la chaudière.
You have to be logged in to ask a question
10/10/2019, 18:30:33 of: Mrs Reifenberg Haustechnik GmbH
Telefon
Mit diesem Kabel kann man gut arbeiten
04/08/2016, 16:25:41 of: Mr Feld
gut
Eine sehr gute Telefonleitung J-Y(St)Y 8 x 2 x 0,8 mm außen Ø 11,5 mm, 100 m
