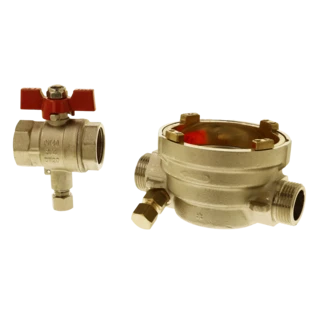

Installation kit single-pipe EAT 3/4" DS6 2502000006
OEG no.: 512242900
Installation kit with single-pipe connection part EAT to be used with the ultrasonic measuring capsule meters Integral-MK MaXX and Ultra MaXX. The connection part is equipped with an integrated return...

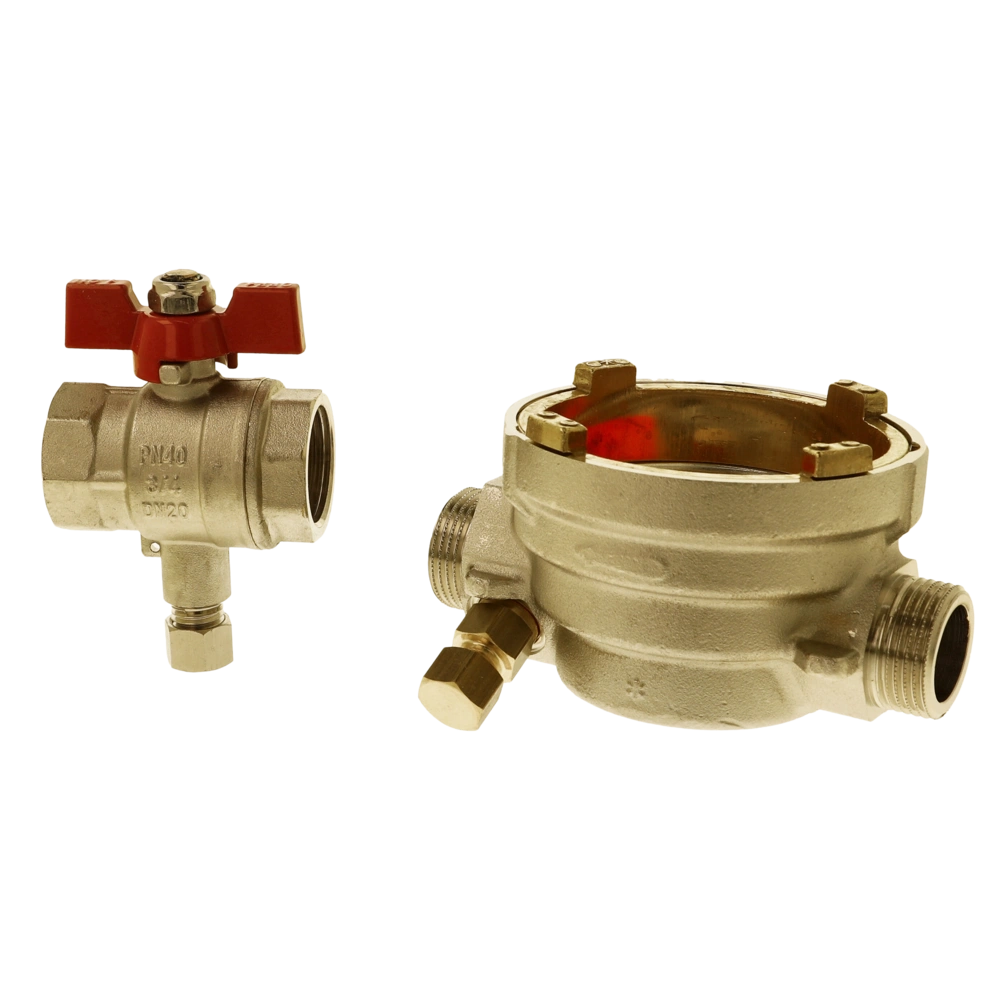

All product information Scope of deliveryInstallation kit with single-pipe connection part EAT to be used with the ultrasonic measuring capsule meters Integral-MK MaXX and Ultra MaXX. The connection part is equipped with an integrated return temperature measuring point and a blind flange. The flow ball valve with sensor connection additionally has an integrated measuring point.
| Scope of delivery: | |||
| 1 x | Single-pipe connector | ||
| 1 x | Supply ball valve | ||
| Suitable for: | |||
|
Integral MK-UltraMaXX heat meter measuring capsule QN 1.5 m³ |
|
|
|
Integral MK-UltraMaXX heat meter measuring capsule 1.5 m³/h |
|
|
|
Integral MK-UltraMaXX heat meter measuring capsule 1.5 m³/h |
|
|
For more information see Downloads
| OEG no. | 512242900 |
| Connection size [inch]: | 3/4 |
| Total length [mm]: | 110 |
| Nominal size [DN]: | 15 |
| Manufacturer | Allmess |
| Manufacturer number | 2502000006 |
| EAN | 4250199281049 |
| Weight [kg] | 0.73 |
| Customs tariff number | 90289090 |
