OEG no. : 311922014
Related products
Fittings insulation made up of two interlocking rigid-foam half-shells for effective protection against energy loss on fittings. The insulation can be detached and is reusable with adapted recesses for ball valves with short stem...
All product informationRelated products

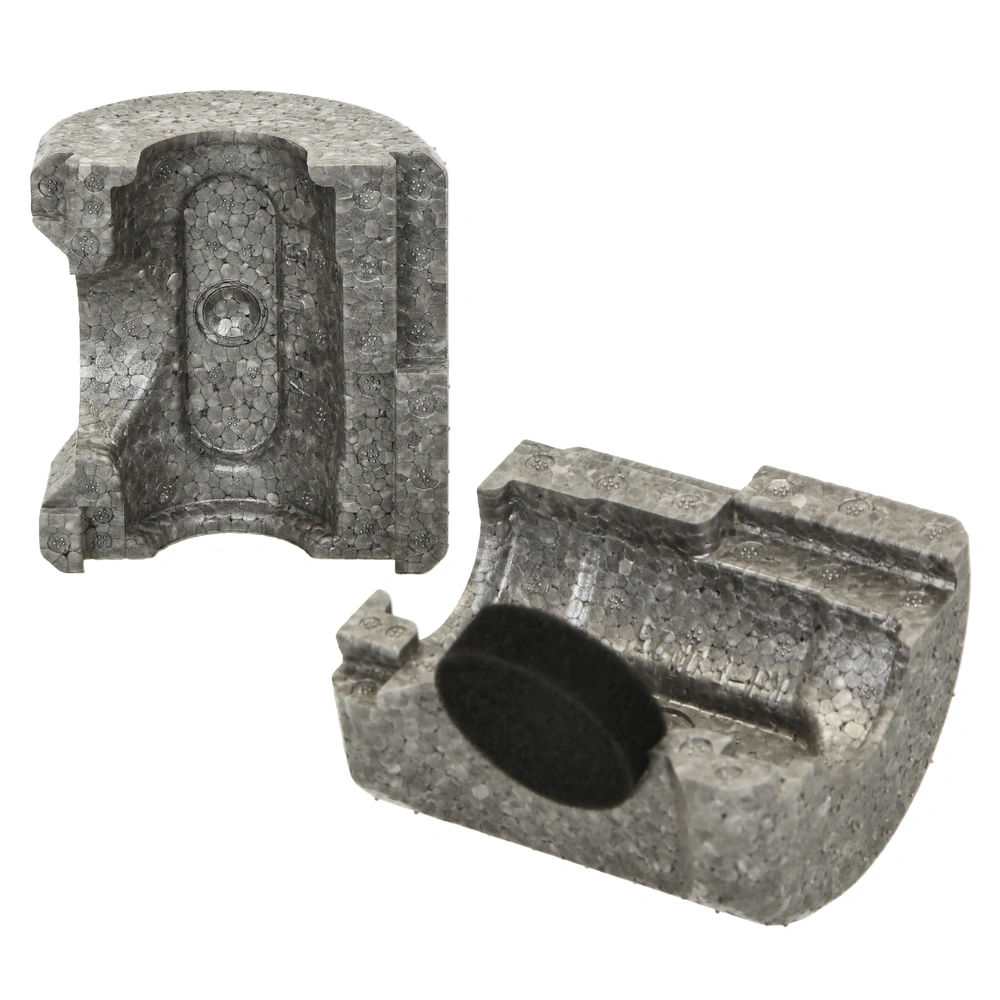

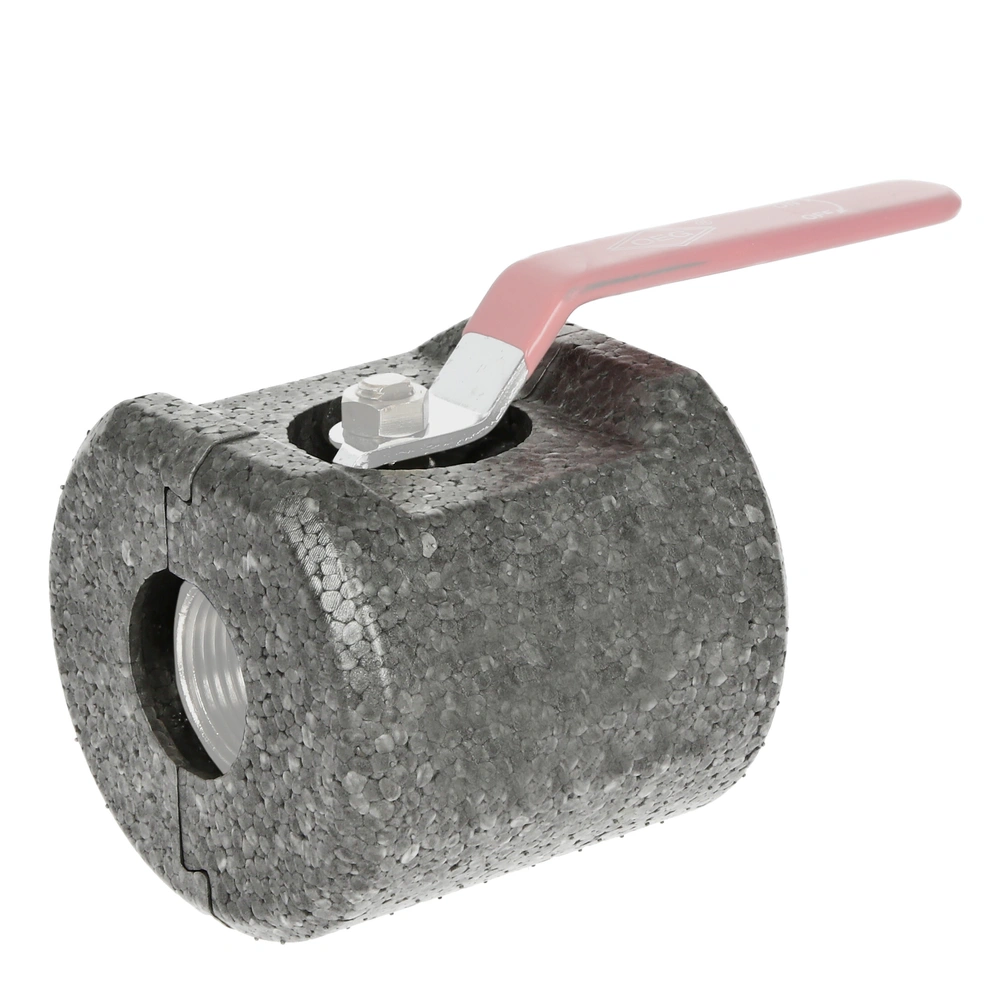

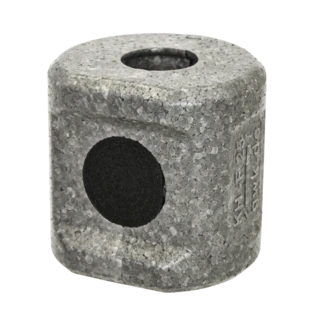

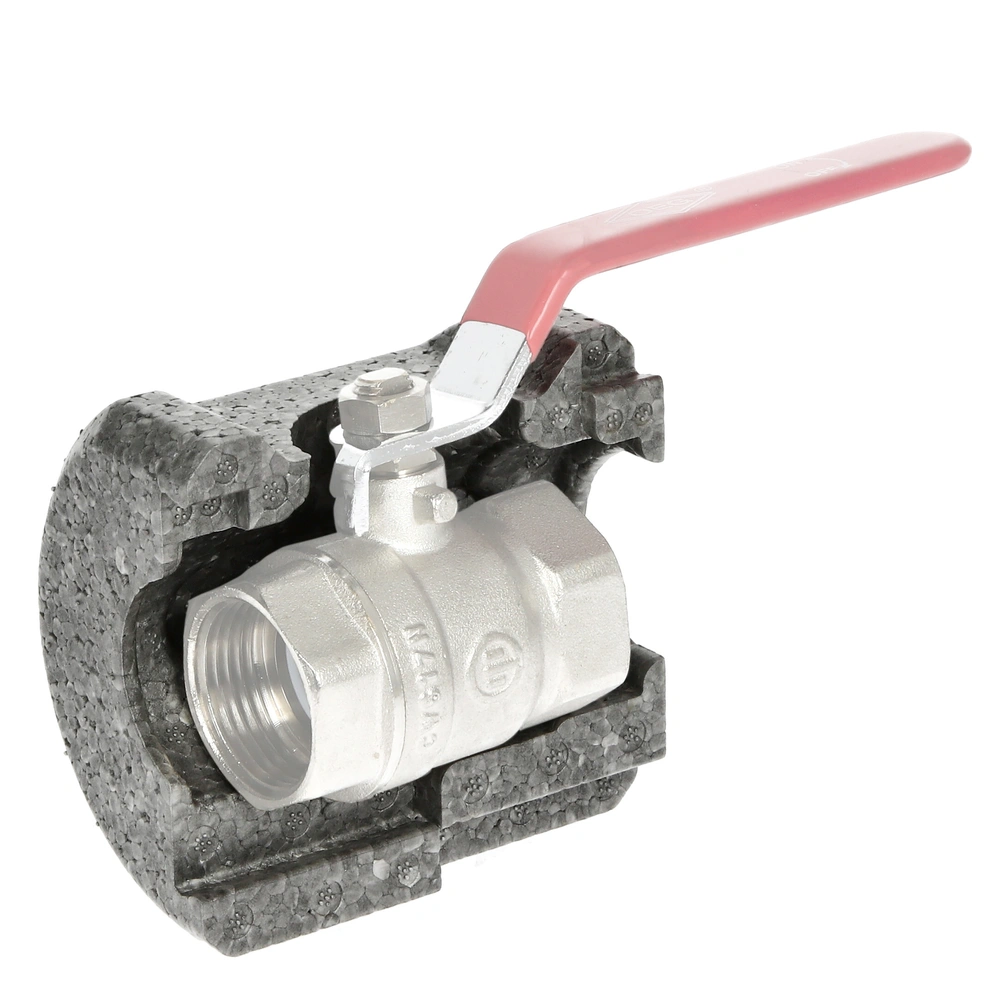

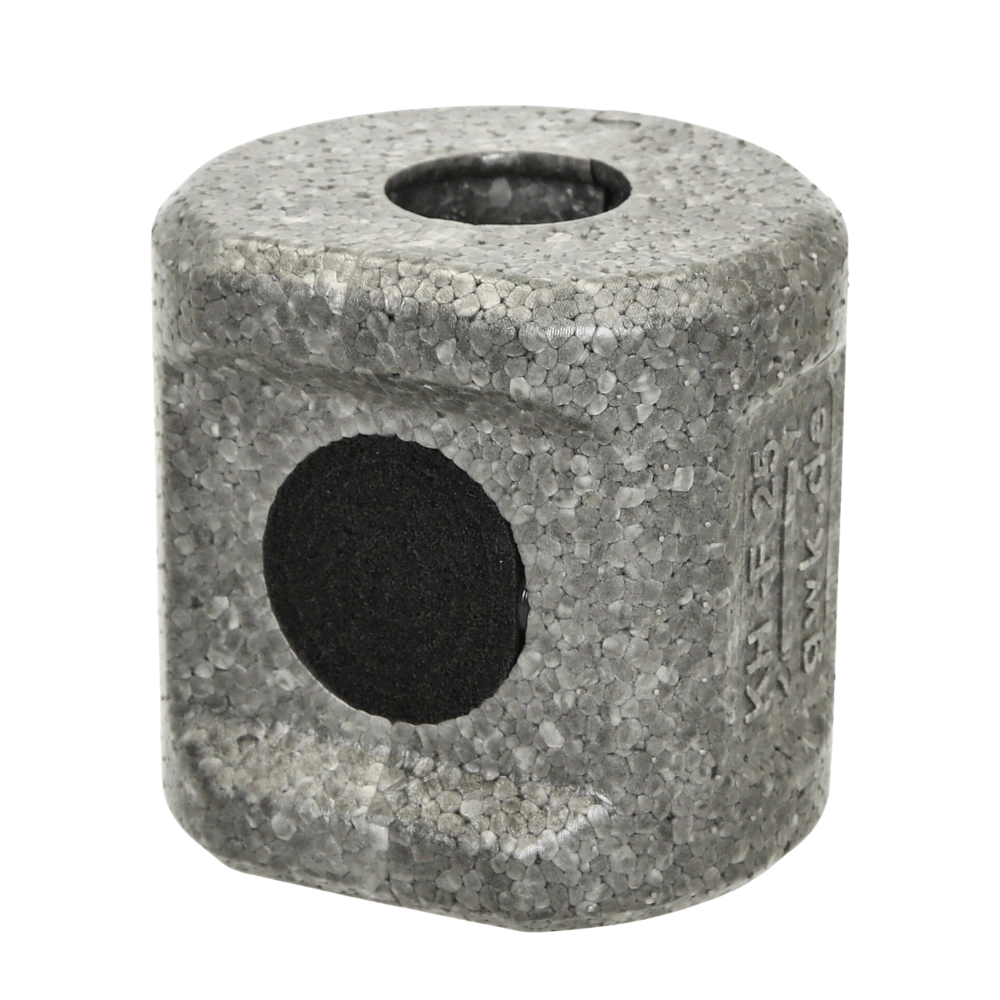

Fittings insulation made up of two interlocking rigid-foam half-shells for effective protection against energy loss on fittings. The insulation can be detached and is reusable with adapted recesses for ball valves with short stem. Due to the interlocked structure, both insulation shells fit together perfectly and do not need to be secured additionally.
Application examples: Schloesser 6005, TA Heimeier TA500, WESA 690, Bee 63, Broen Unikum, Giacomini R250D, JRG 6020, Hermann Schmidt 1440
| OEG no. | 311922014 |
| suitable for ball valve: | 3/4" |
| Length [mm]: | 89 |
| Length of ball valve max. [mm]: | 76 |
| Outer diameter [mm]: | 76 |
| Outer diameter of ball valve max. [mm]: | 38 |
| Fire protection class: | B2 acc. to DIN 4,102 and E acc. to EN 13501-1 |
| Material: | Expanded polypropylene |
| Operating temperature max. [°C]: | 110 |
| Thermal conductivity [W / m * k]: | 0.035 |
| Manufacturer | OEG |
| Brand | SilverTec® |
| EAN | 4030095056237 |
| Weight [kg] | 0.01 |
| Customs tariff number | 39269097 |
