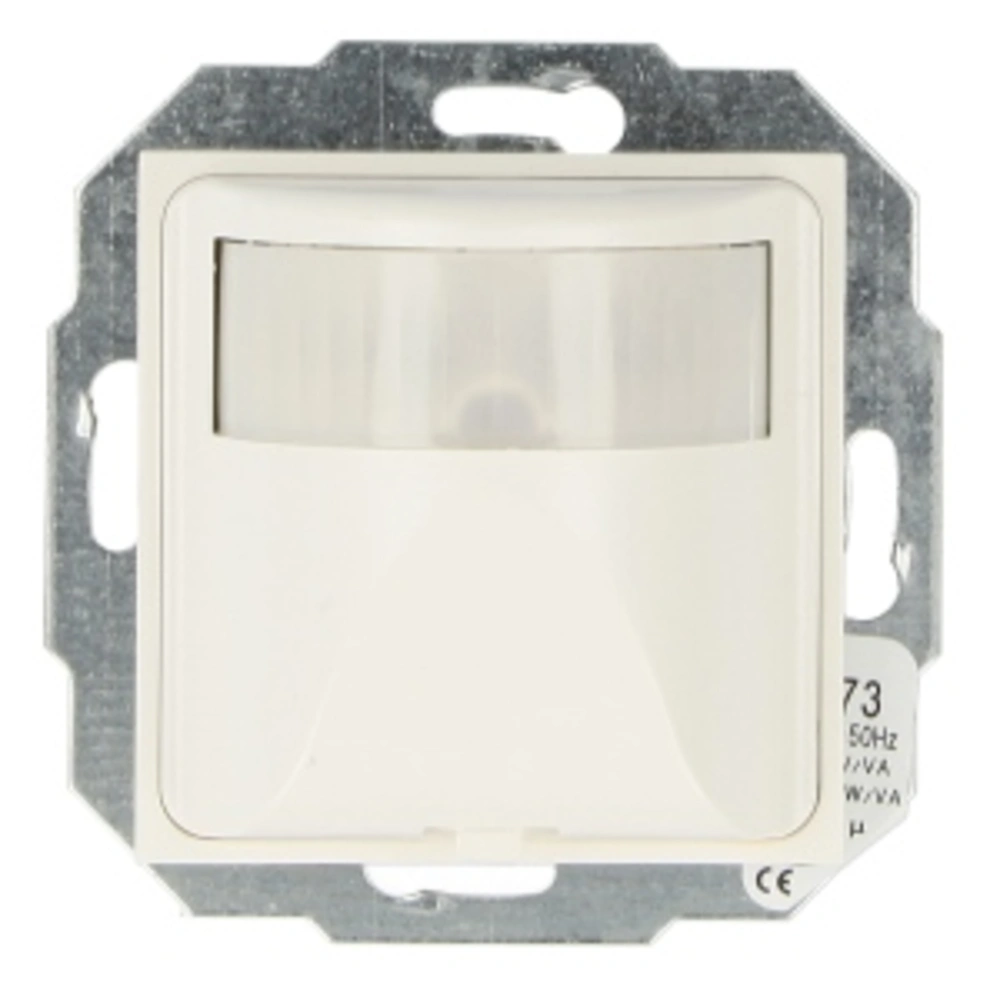

IR motion switch 180° 1,000 W, 3-wire device 808429007
OEG no.: 717001264
Flush-mounted infrared motion switch as 3-wire device with a detection angle of 180° and a detection range of 10 m.
For incandescent lamps with up to 1,000 W and for high-voltage halogen lamps or fluorescent lamps with max...
Related products
Halogen-free
Flush-mounted infrared motion switch as 3-wire device with a detection angle of 180° and a detection range of 10 m.
For incandescent lamps with up to 1,000 W and for high-voltage halogen lamps or fluorescent lamps with max. 1,000 VA (series-compensated).
A continuous setting time between 4-240 seconds and a slide switch allow for the use in any situation.
For more information see Downloads
| OEG no. | 717001264 |
| Fixing: | Screw fixing |
| Detection angle [°]: | 180 |
| Type: | Motion detector |
| Design: | Infrared |
| Type: | Passive infrared |
| Rated voltage [V]: | 230 |
| Installation depth: | 31 |
| Width x Height [mm]: | 50 x 50 |
| Range [m]: | 10 |
| Ambient temperature [°C]: | 0 .. 40 |
| Switching capacity LED [W]: | 300 |
| Type of connection: | Screw clamps |
| Depth [mm]: | 61 |
| Switching capacity [W]: | 1,000 |
| Series: | HK07 |
| Colour: | Pure white |
| Surface: | Shiny |
| Mounting type: | Flush-mounted |
| Material: | Thermoplastic, Halogen-free |
| Protection type [IP]: |
 IP20
|
| Manufacturer | Kopp |
| Manufacturer number | 808429007 |
| EAN | 4008224592192 |
| Weight [kg] | 0.3 |
| Notes |
Halogen-free
|
| Customs tariff number | 85389099 |
