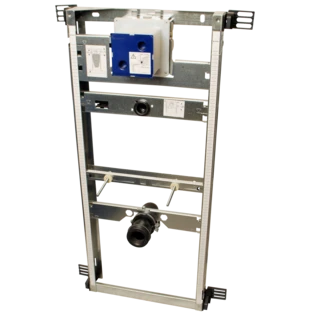

Kombifix urinal element for the installation element in a half- or room-high, wet-built pre-wall in front of a solid wall. The galvanised frame of the wet-construction element is equipped with 4 fixing...
All product information Scope of delivery

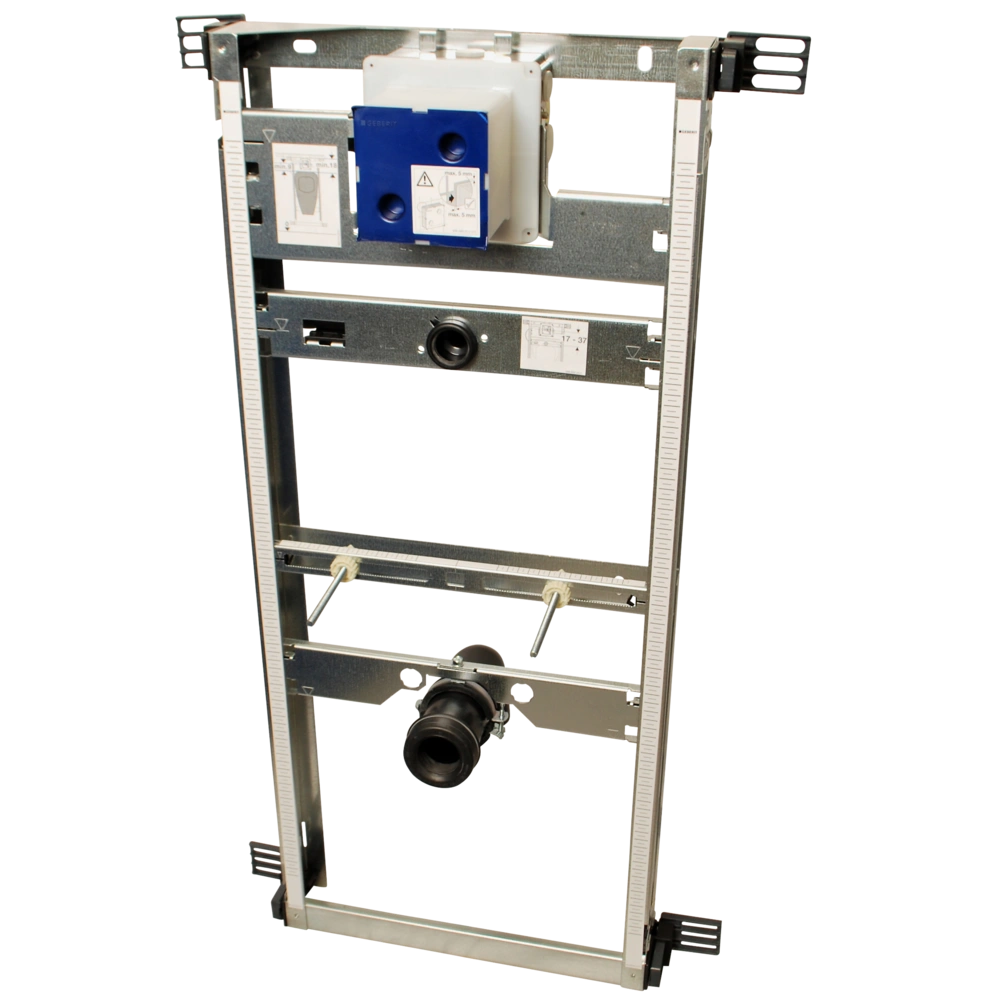

Kombifix urinal element for the installation element in a half- or room-high, wet-built pre-wall in front of a solid wall. The galvanised frame of the wet-construction element is equipped with 4 fixing brackets, the mounting depth is adjustable from 7.5 to 12 cm. The ceramic can be fastened variably in spacing and height, also the inlet fastening (ø 32 mm) as well as the sound-absorbing attachment of the outlet bend are height-adjustable. The element contains a universal rough-in set with stop valve for Public UR final installation set. It is suitable for Geberit concealed urinal control.

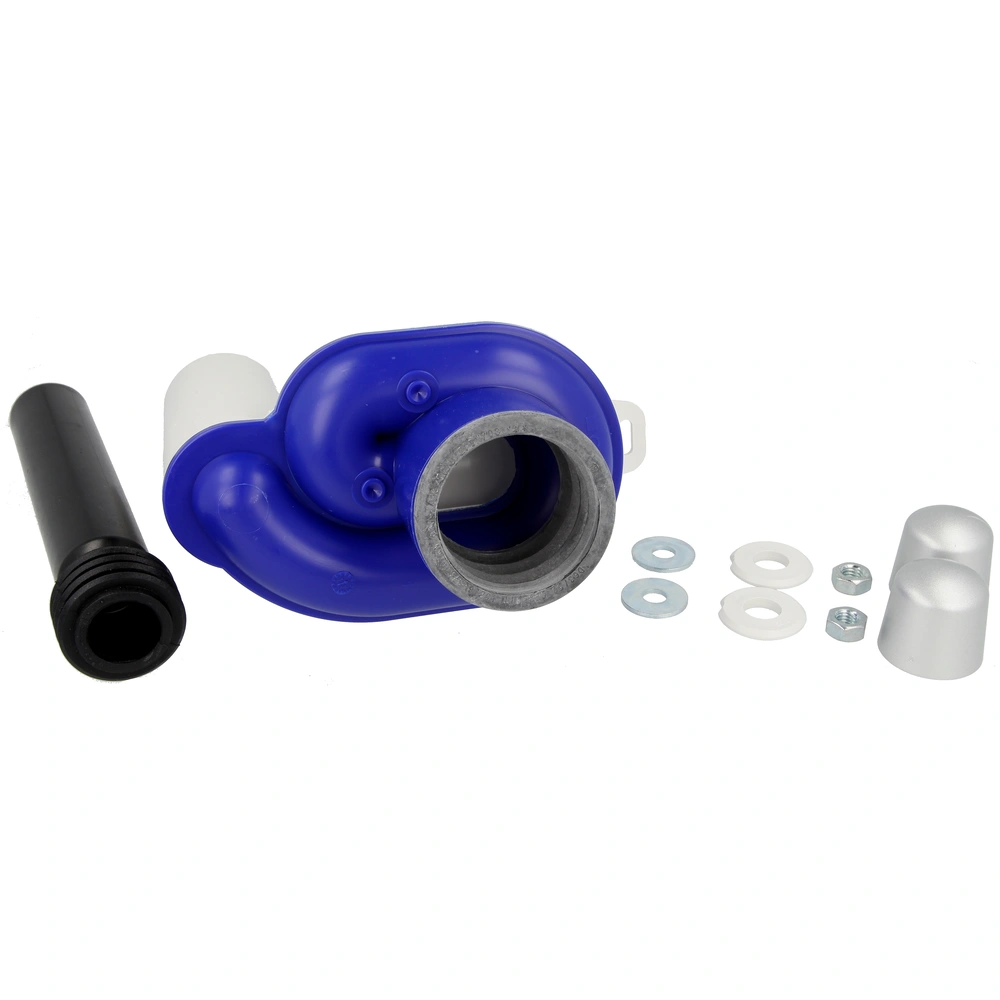

| Scope of delivery: | |||
| 1 x | Elbow tap connector R 1/2" | ||
| 1 x | Urinal odour trap Ø 50 mm with seal | ||
| 1 x | Seal Ø 57 / 50 mm | ||
| 2 x | Threaded rod M8 | ||
| 1 x | Protection box for service opening | ||
| 1 x | Connection bend made of PE-HD Ø 63 / 50 mm | ||
| 2 x | Protection plug | ||
| 1 x | Fastening material | ||
For more information see Downloads
| OEG no. | 816000833 |
| Field of application: | Urinal |
| Width x Height [mm]: | 420 x 1,000 |
| Depth [mm]: | 80 |
| Installation height [mm]: | 1,090 .. 1,270 |
| Flow pressure [bar]: | 1 .. 8 |
| Media temperature max. [°C]: | 30 |
| Material frame: | Steel galvanised |
| Manufacturer | Geberit |
| Herstellernummer | 457611001 |
| EAN | 4025416756347 |
| Weight [kg] | 5.3 |
| Notes | |
| Customs tariff number | 74182000 |
