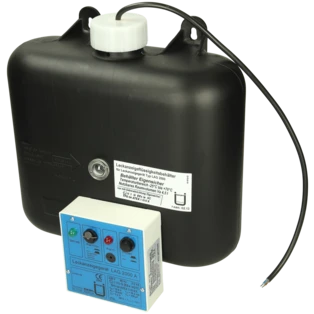

Leak detector LAG 2000, intrinsically safe

Class II according to DIN EN 13160-3 approved for:
For usage in tanks for flammables with a flashpoint 55°C to supply
heating systems in building according to Building Standard List A part 1 of DIBt:
Double-wall, overground and pressureless tanks and pipes. Single-wall,
overground and pressureless tanks and tubes with internal or external leak protection shell.
For stationary systems for storing and filling of liquids hazardous for waters according to Building Standard List B, part 2/2:
Leak detectors for vessels for storing and filling flammable and
inflammable liquids.
For usage in tanks for liquids hazardous for water and flammable with a flashpoint >55°C and intrinsically safe.
Systems set-up before 31/12/2002 (under and overground double-wall tanks and tubes)
Technical data:
Supply voltage: 230 V AC / 50-60 Hz
Power consumption: 2.5 VA

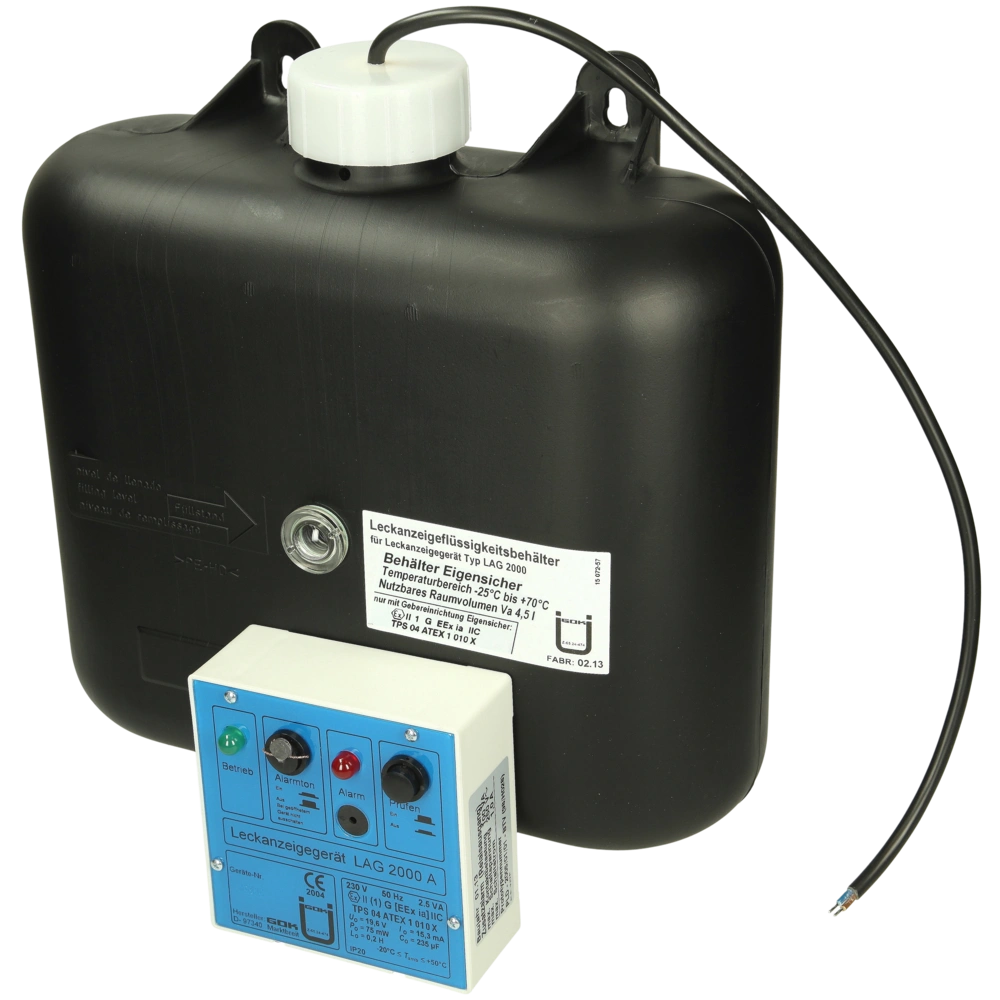

LAG 2000 E:
Completely equipped with display unit, encoder and vessel with black vessel for leak detecting liquid (intrinsically safe) for flammable liquids and mounting of the vessel for the leak detecting liquid in explosive atmospher es.
LAG 2000 NE:
Completely equipped with display unit, encoder and white vessel for leak detecting liquid (not intrinsically safe) for flammable liquids and
mounting of the vessel for the leak detecting liquid outside explosive atmo spheres.

For more information see Downloads
