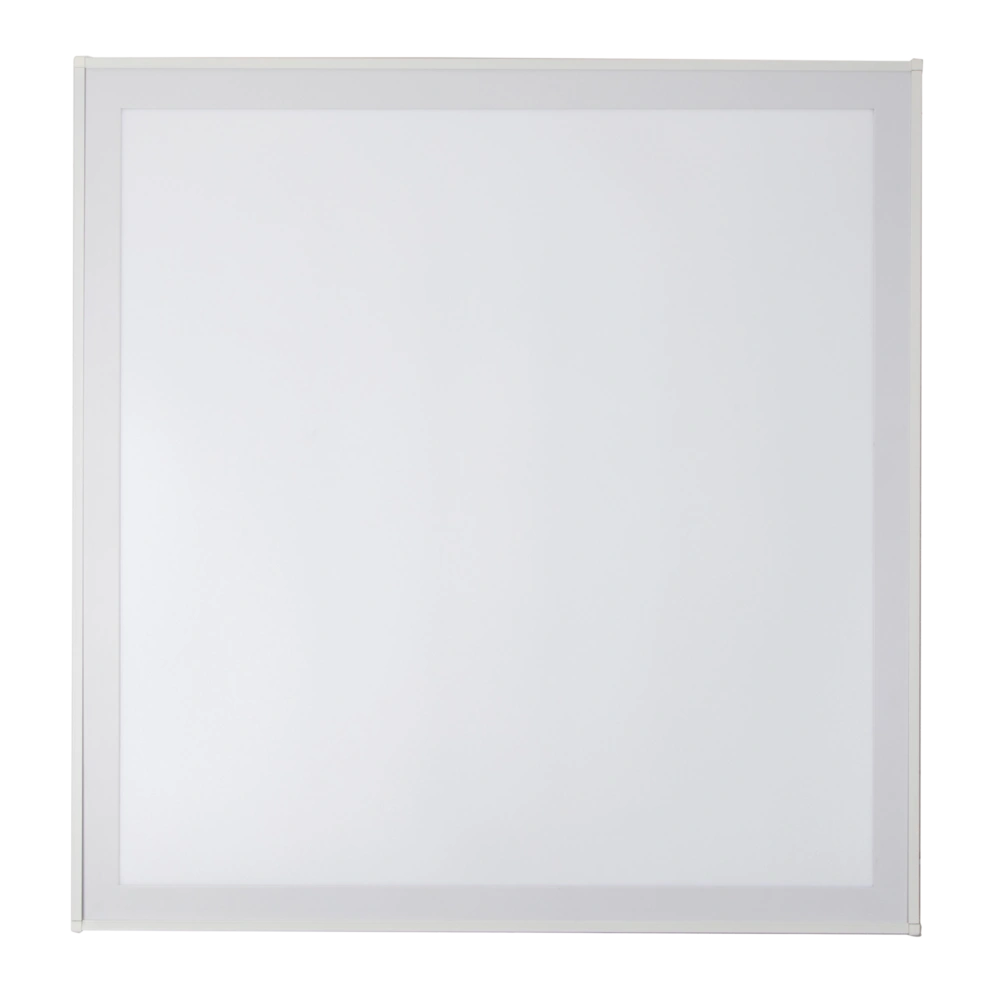

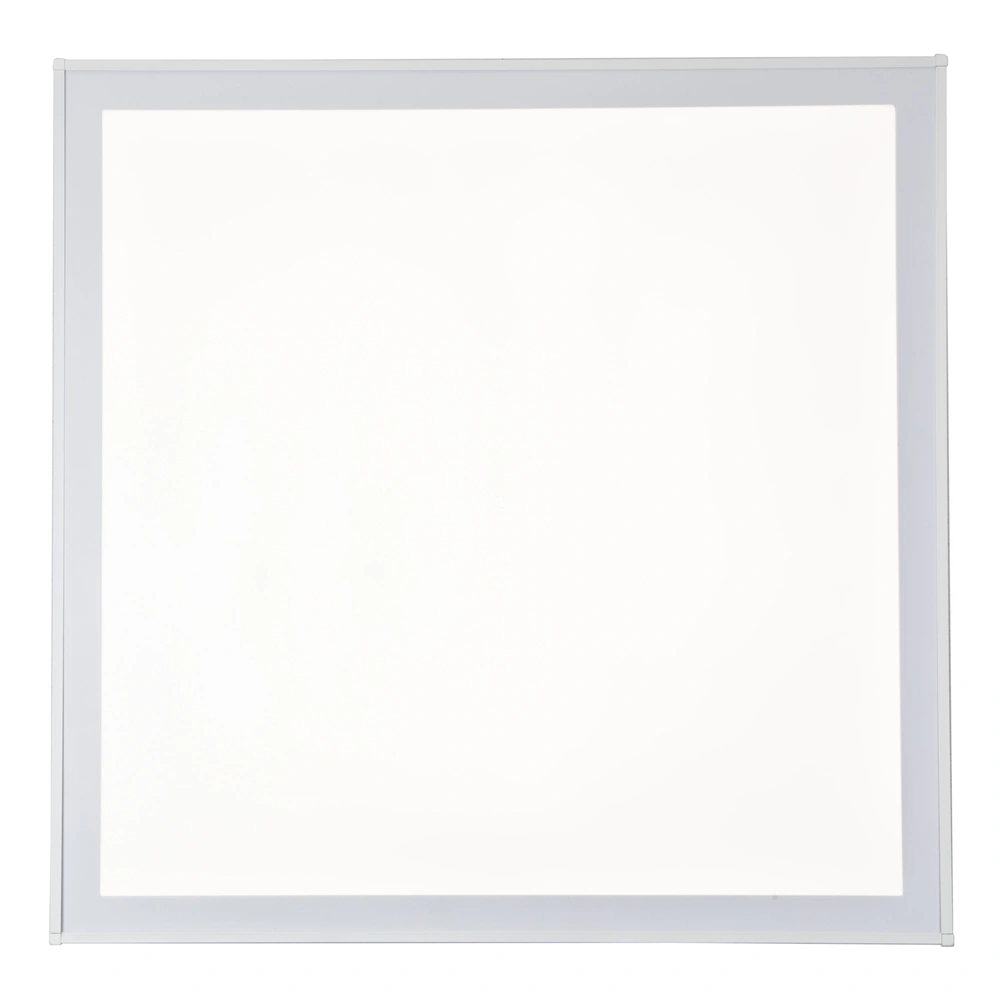

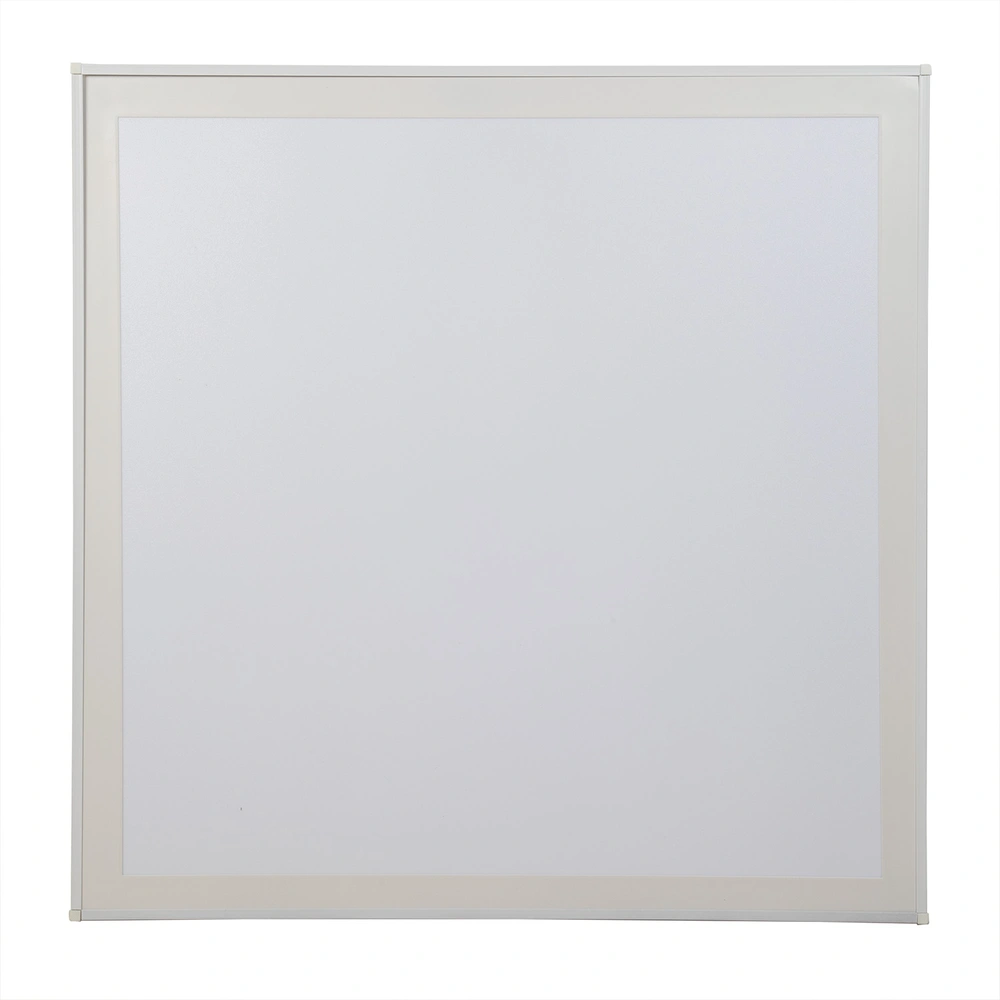

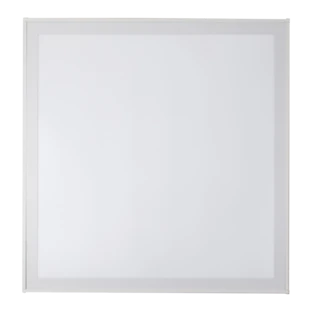

LED panel louvre luminaire 36 W 620 x 620 mm

(1)
Ask the first question about this item
OEG no.: 743000110
  • Also replaces
    schließen Also replaces:
    • 735000128 (LED panel louvre luminaire 36 W 620 x 620 mm)
Zoom LED panel louvre luminaire 36 W 620 x 620 mm

Universal LED panel for the use as louvre luminaire, with frame for wall and ceiling luminaires or suspended with rope attachment. The discolouration-free diffuser and a high-quality driver guarantee a long life of the luminaire.

All product information Scope of delivery
CE

CE
CE
Wipe 'n' Buy ®

Universal LED panel for the use as louvre luminaire, with frame for wall and ceiling luminaires or suspended with rope attachment. The discolouration-free diffuser and a high-quality driver guarantee a long life of the luminaire.

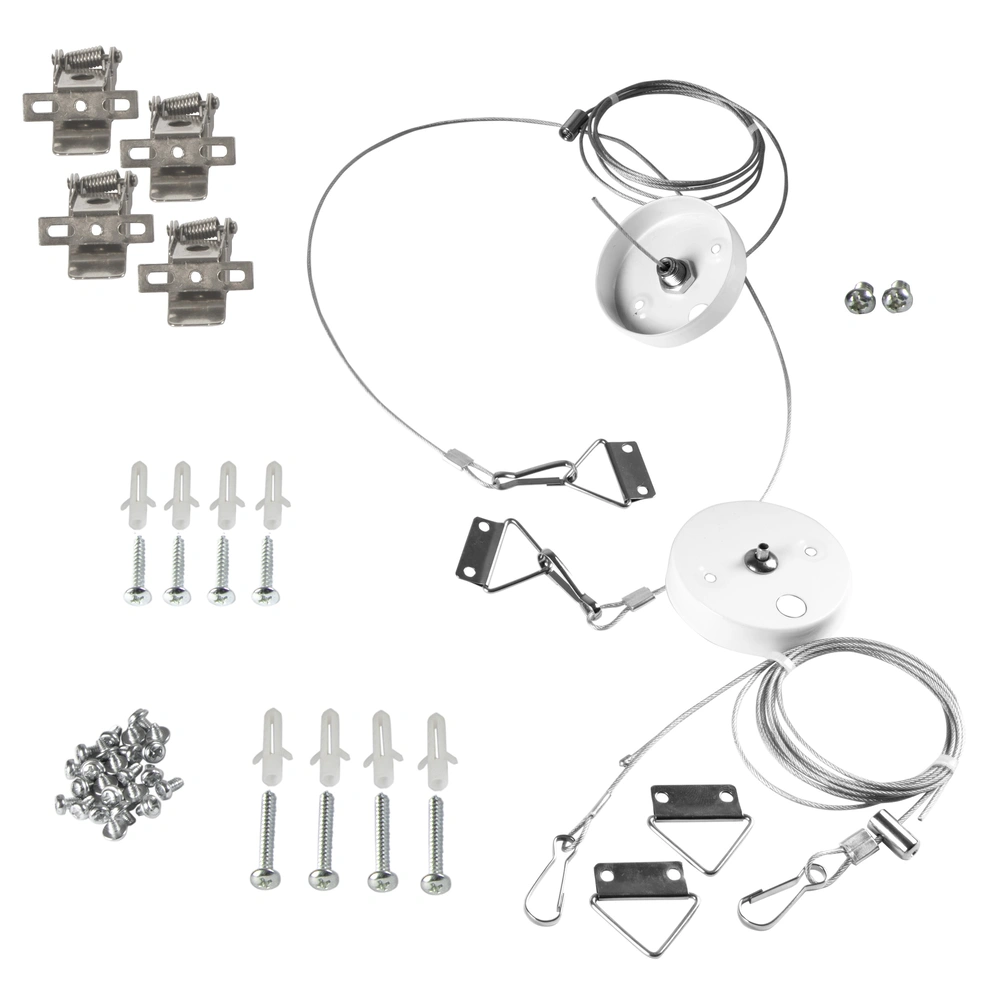

Scope of delivery:
1 xLuminaire

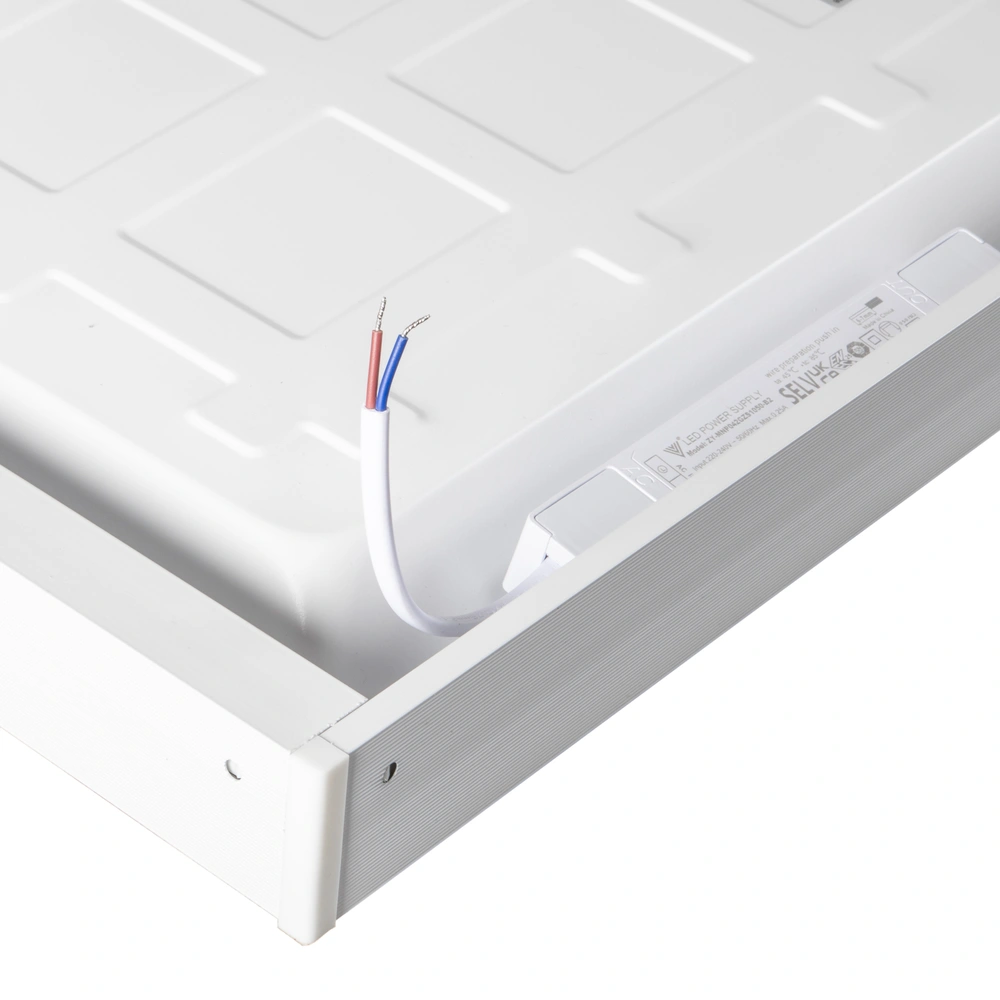

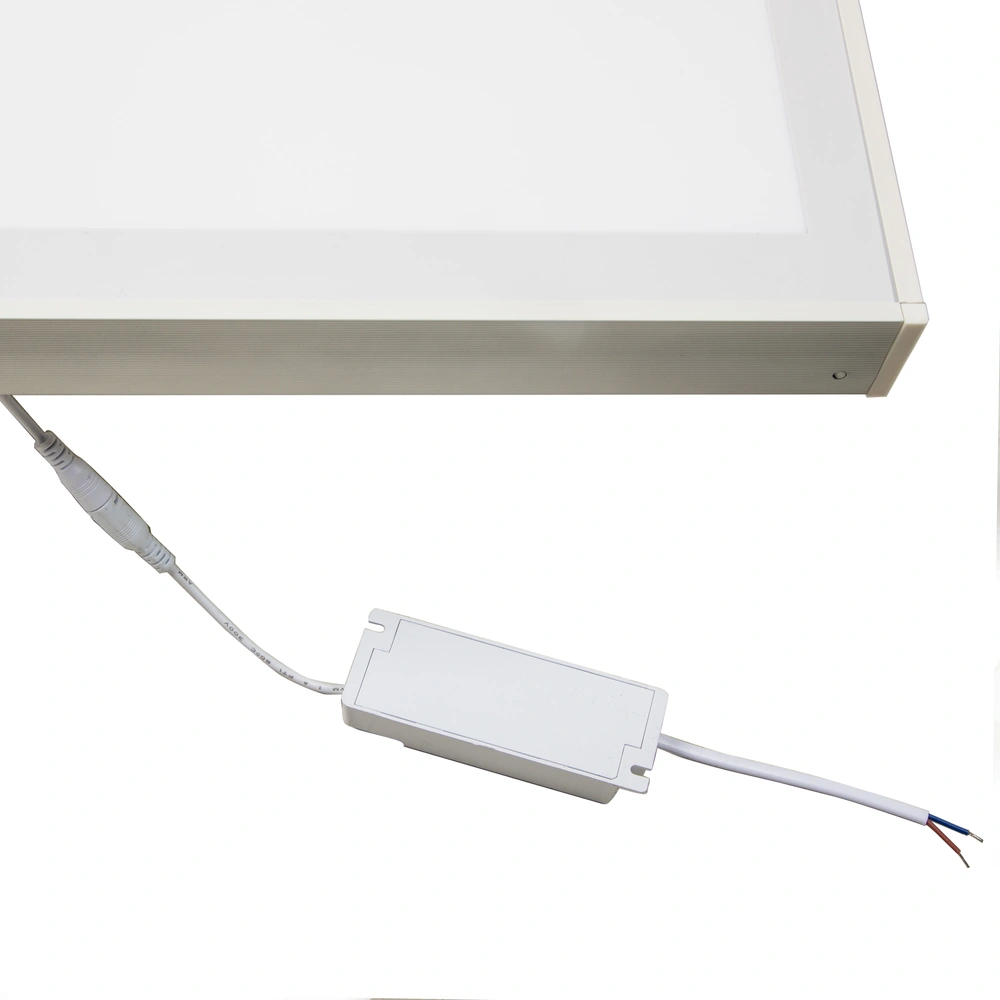

1 xPower supply unit

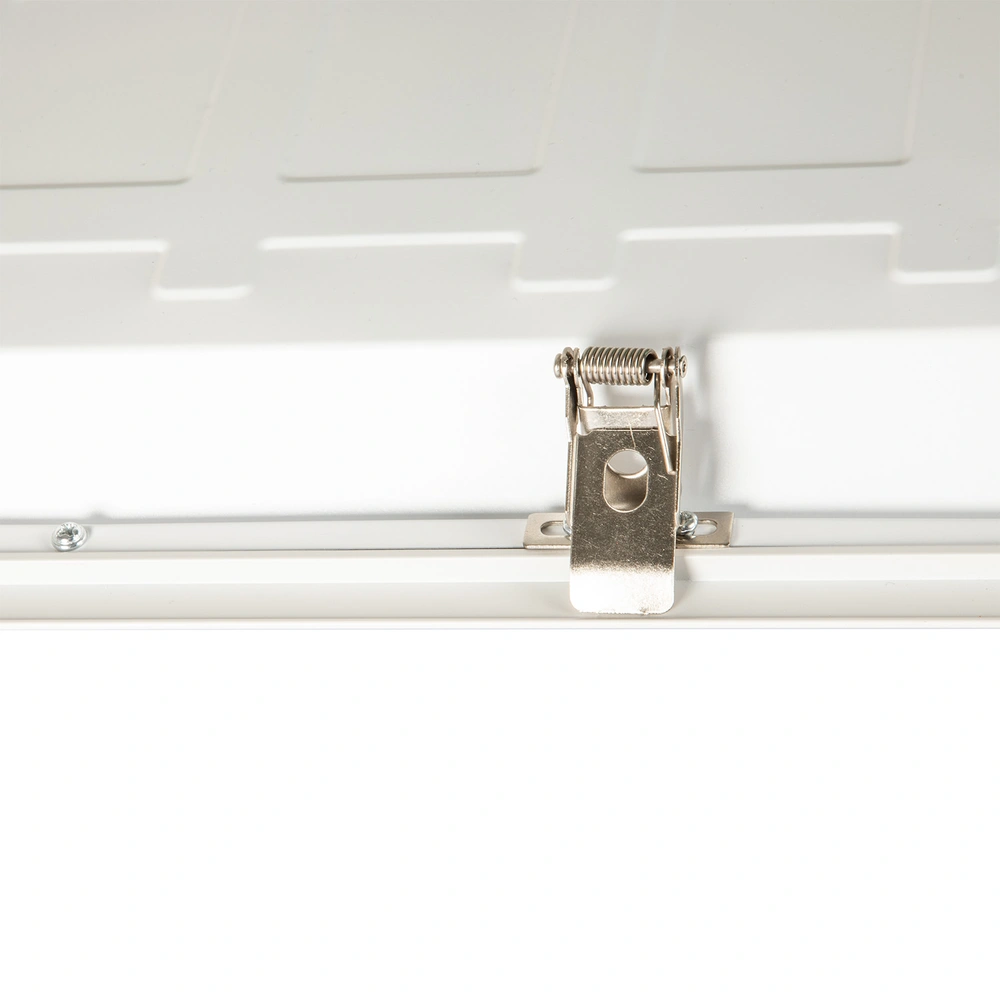

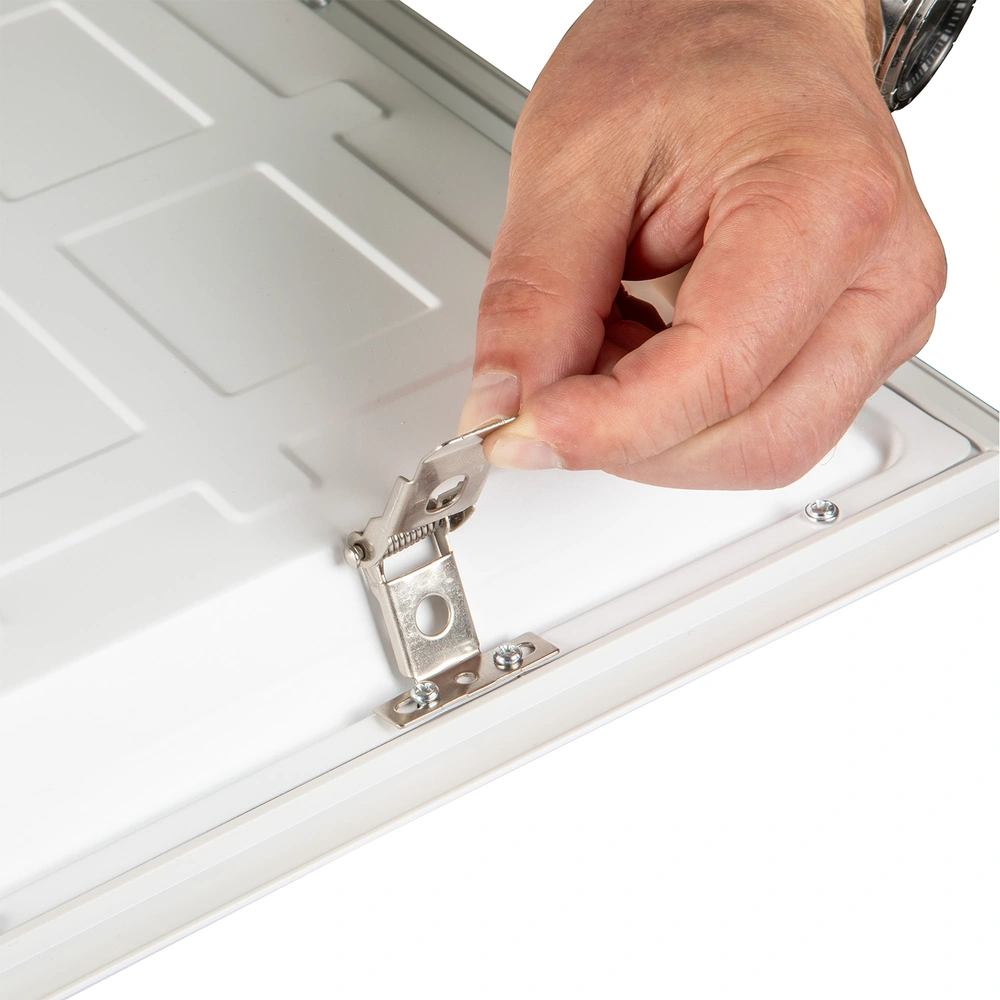

4 xclamps

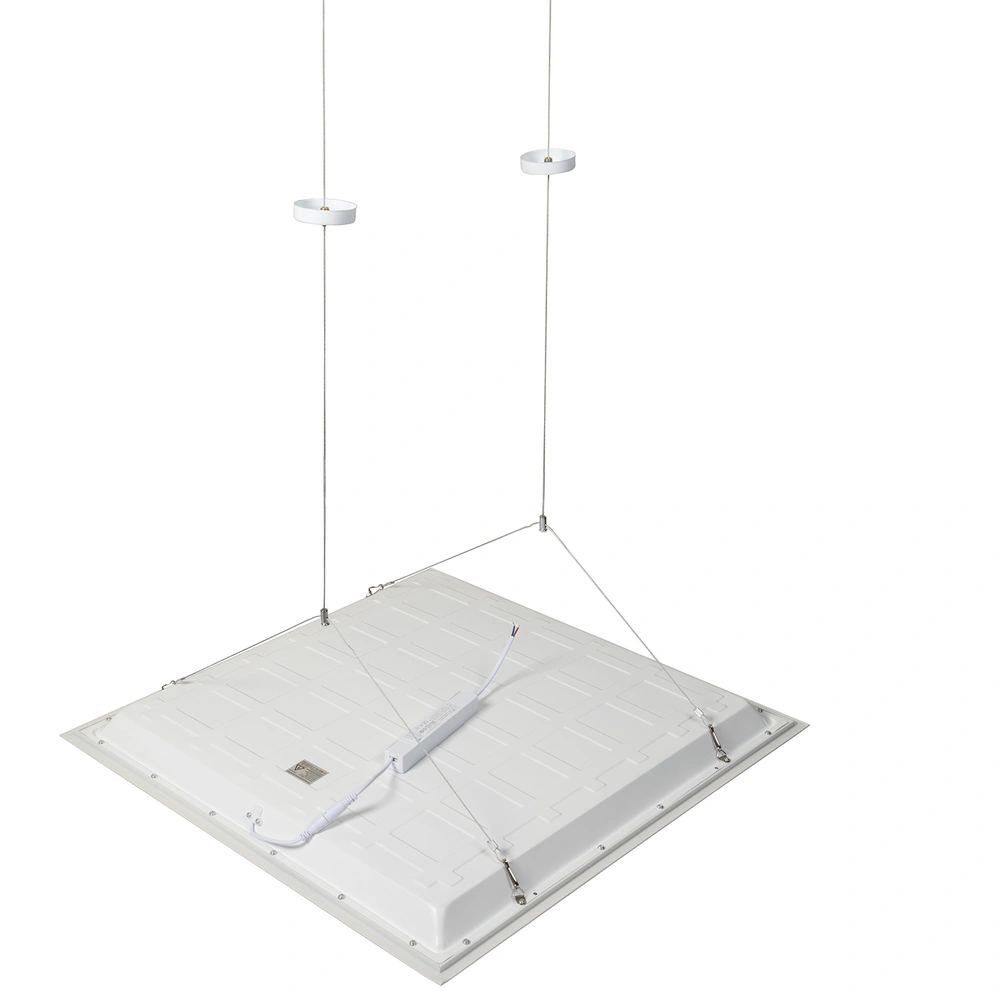

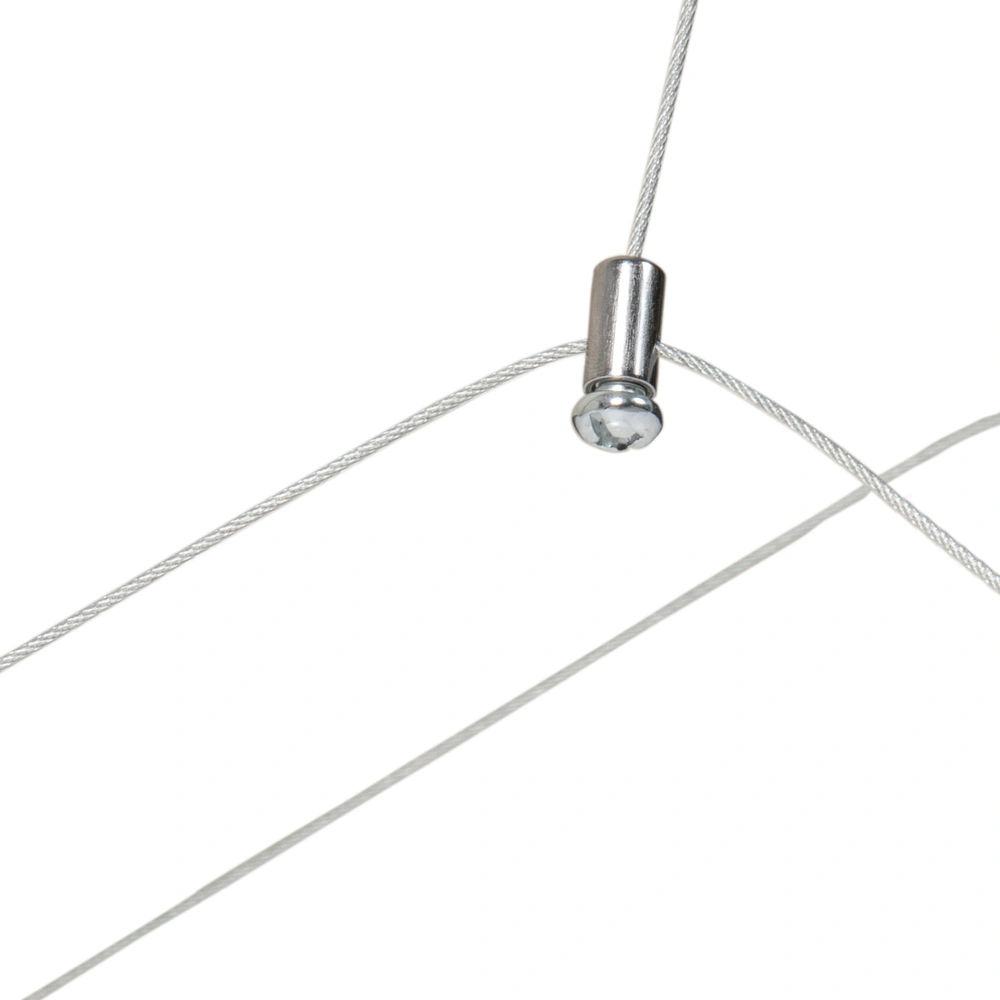

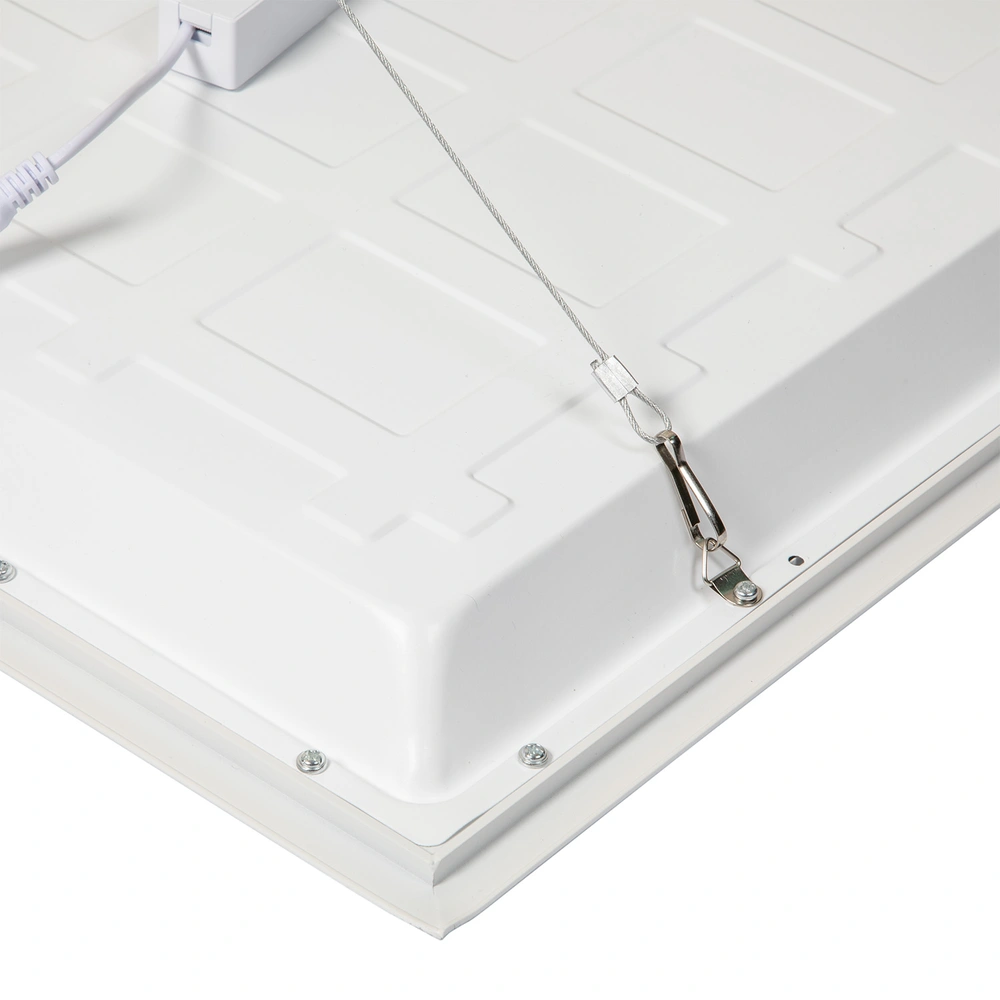

2 xSuspension set with rope

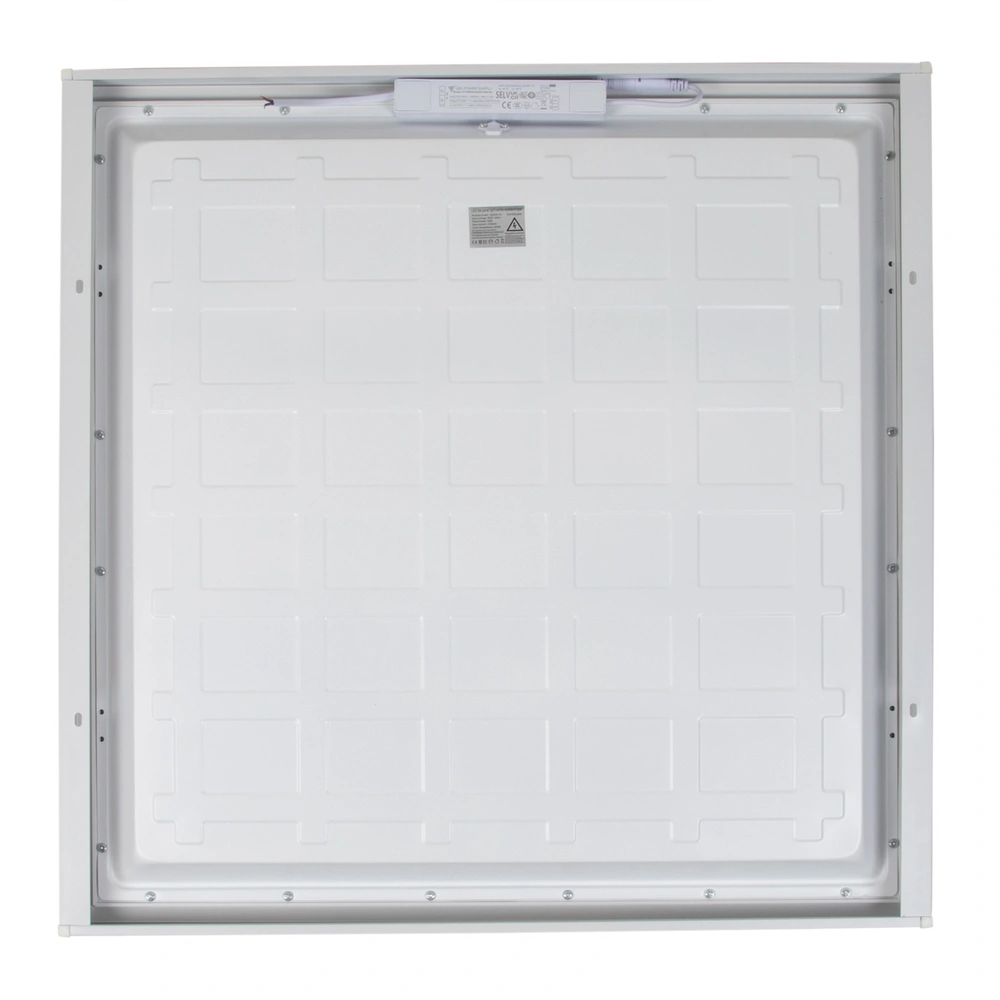

1 xMounting frame with 4 corner brackets
4 xscrews and wall plugs for exposed instalation

For more information see Downloads


OEG no. 743000110
Light intensity [lm]: 3,900
LED service life L70B50 [h]: 180,000
Colour:
White

White
White
Colour temperature [K]: 4,000
Material: Aluminium
Voltage [V]: 230
Rated current [A]: 0.130
Colour rendering index CRI: 80
Beam angle: 90°
Dimmable: No
Operating temperature [°C]: -20 .. 45
Length x Width x Height [mm]: 620 x 620 x 30
Protection type [IP]:
IP20

IP20
IP20
Energy efficiency class: E
Output [W]: 36
Also replaces
  • 735000128 (LED panel louvre luminaire 36 W 620 x 620 mm)
Weight [kg] 1.8
Energy efficiency class E
Notes
CE

CE
CE
Customs tariff number 94051190 (CN)
