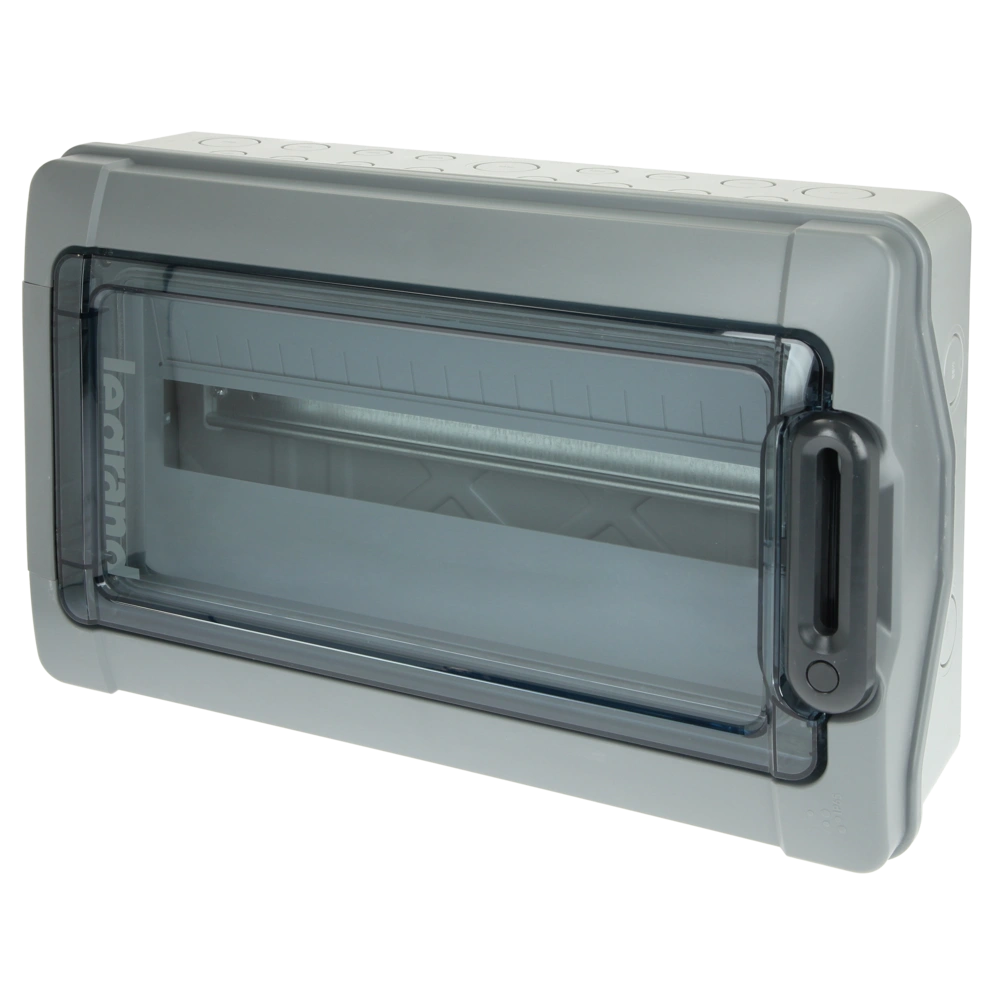

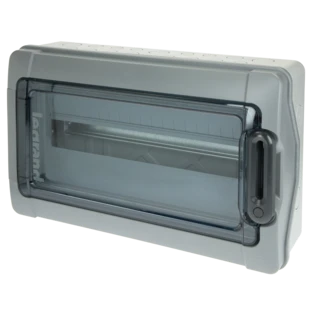

The Legrand Plexo³ surface-mounted wet room distributor is equipped with a reversible, transparent door, a lock can be retrofitted. Behind the height-adjustable mounting rail there is enough space left (45 mm) for cabling...
All product informationRelated products
Flame-retarding
The Legrand Plexo³ surface-mounted wet room distributor is equipped with a reversible, transparent door, a lock can be retrofitted. Behind the height-adjustable mounting rail there is enough space left (45 mm) for cabling. Thus, modular miniature circuit breakers and load breakers can be installed. The distributor is also equipped with knock-out openings for two different kinds of fixtures. Whether the cable inlet is done from the top or from below, the new distributor does it all.
Technical data:
- for devices up to 63 A
- type of protection: IP 65 - IK09
- self-extinguishing: 650°C
- incl. N and PE terminals
- colour of housing: tele-grey similar to RAL 7047
- temperature resistance: from -20° C up to +70° C
- dimensions (H x W x D): 282 x 448 x 141 mm
For more information see Downloads
| OEG no. | 711000494 |
| Distributor rows: | 1-row |
| EU standard: | 61439-3, 62208 |
| Horizontal pitches [HP]: | 18 |
| Length x Width x Height [mm]: | 448 x 141 x 282 |
| Type: | Plexo³ |
| Protection type [IP]: | 65 |
| IK impact protection rating: | 9 |
| Mounting type: | Surface-mounted |
| Material: | Plastic |
| Temperature resistance [°C]: | -20 .. 70 |
| Manufacturer | Legrand |
| Manufacturer number | 601985 |
| EAN | 3245066019857 |
| Weight [kg] | 2.99 |
| Notes |
Flame-retarding
|
| Customs tariff number | 85381000 (PL) |
