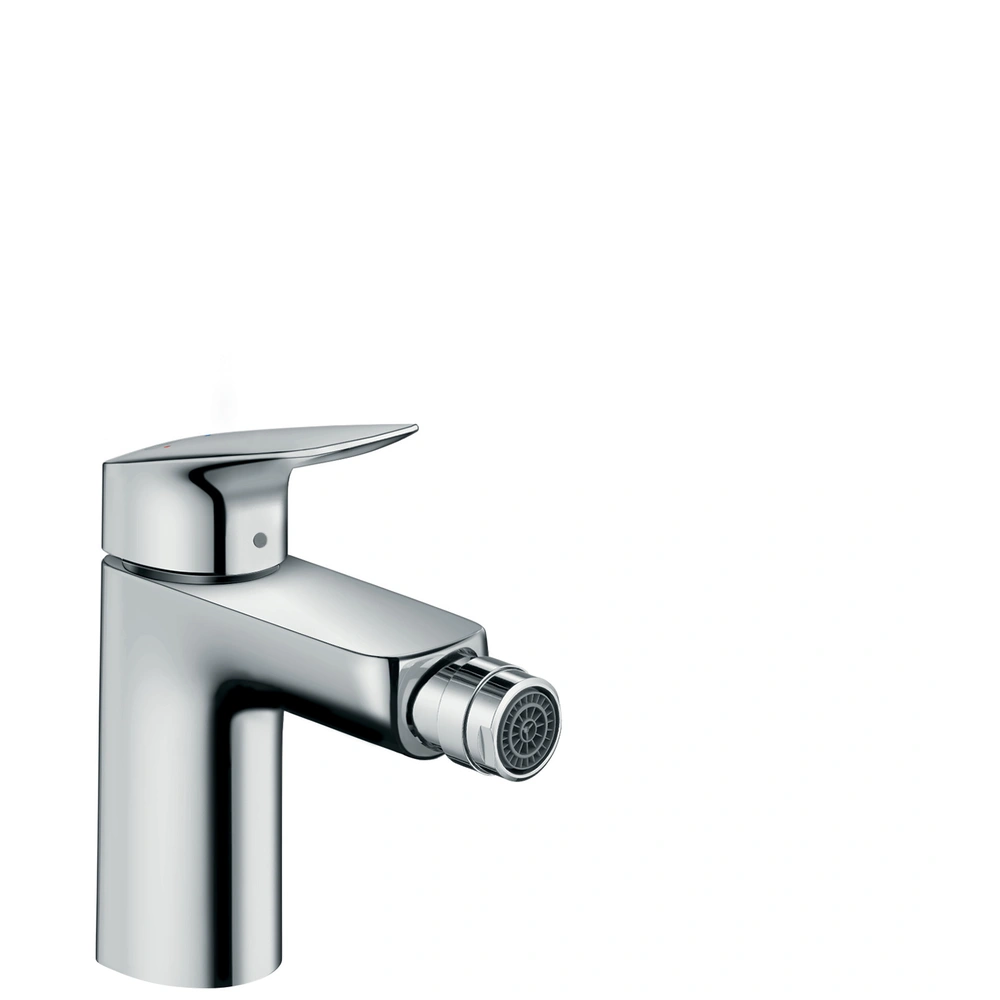

Logis 100 single-lever bidet mixer with pop-up waste set 71200000
OEG no.: 800007273
Single-lever bidet mixer with ceramic mixing system and adjustable temperature limitation. The ball-joint aerator creates a laminar water jet.
The mixer is suitable for the use with a continuous-flow water heater.
All product information Scope of delivery
certified by DVGW
5 years warranty
Single-lever bidet mixer with ceramic mixing system and adjustable temperature limitation. The ball-joint aerator creates a laminar water jet.
The mixer is suitable for the use with a continuous-flow water heater.
| Scope of delivery: | |||
| 1 x | bidet mixer | ||
| 2 x | flexible connection hose | ||
| 1 x | pop-up waste set 1¼╩ | ||
| Spare parts: | |||
|
Cartridge for single-lever mixer as of March 2001 (M3/M2) |
|
|
For more information see Downloads
| OEG no. | 800007273 |
| Application : | Bidet |
| Type of connection: | High pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | with |
| Cartridge: | hansgrohe 35 mm |
| Fitting operation: | Single-lever mixer tap |
| Connection size supply hose: | 3/8" IT |
| Height of tap [mm]: | 163 |
| Projection [mm]: | 119 |
| Spout height [mm]: | 99 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 7.2 |
| Spout swivelling: | No |
| Pull-out spout: | No |
| Application: | Hot water, Cold water |
| Material: | Brass |
| Tap fitting shape: | Half-round |
| Tap holes: | 1 |
| Spray head: | No |
| Mixer colour: | Chrome |
| Design line: | Logis |
| Manufacturer | Hansgrohe |
| Manufacturer number | 71200000 |
| EAN | 4011097738444 |
| Weight [kg] | 1.88 |
| Notes |
certified by DVGW
5 years warranty
|
| Customs tariff number | 84818011 |
|
|
|
| OEG no. | 800007273 |
| Application : | Bidet |
| Type of connection: | High pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | with |
| Cartridge: | hansgrohe 35 mm |
| Fitting operation: | Single-lever mixer tap |
| Connection size supply hose: | 3/8" IT |
| Height of tap [mm]: | 163 |
| Projection [mm]: | 119 |
| Spout height [mm]: | 99 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 7.2 |
| Spout swivelling: | No |
| Pull-out spout: | No |
| Application: | Hot water, Cold water |
| Material: | Brass |
| Tap fitting shape: | Half-round |
| Tap holes: | 1 |
| Spray head: | No |
| Mixer colour: | Chrome |
| Design line: | Logis |
| EAN | 4011097738444 |
| Weight [kg] | 1.88 |
| Notes |
certified by DVGW
5 years warranty
|
| Customs tariff number | 84818011 |
There are no questions available on this item yet
