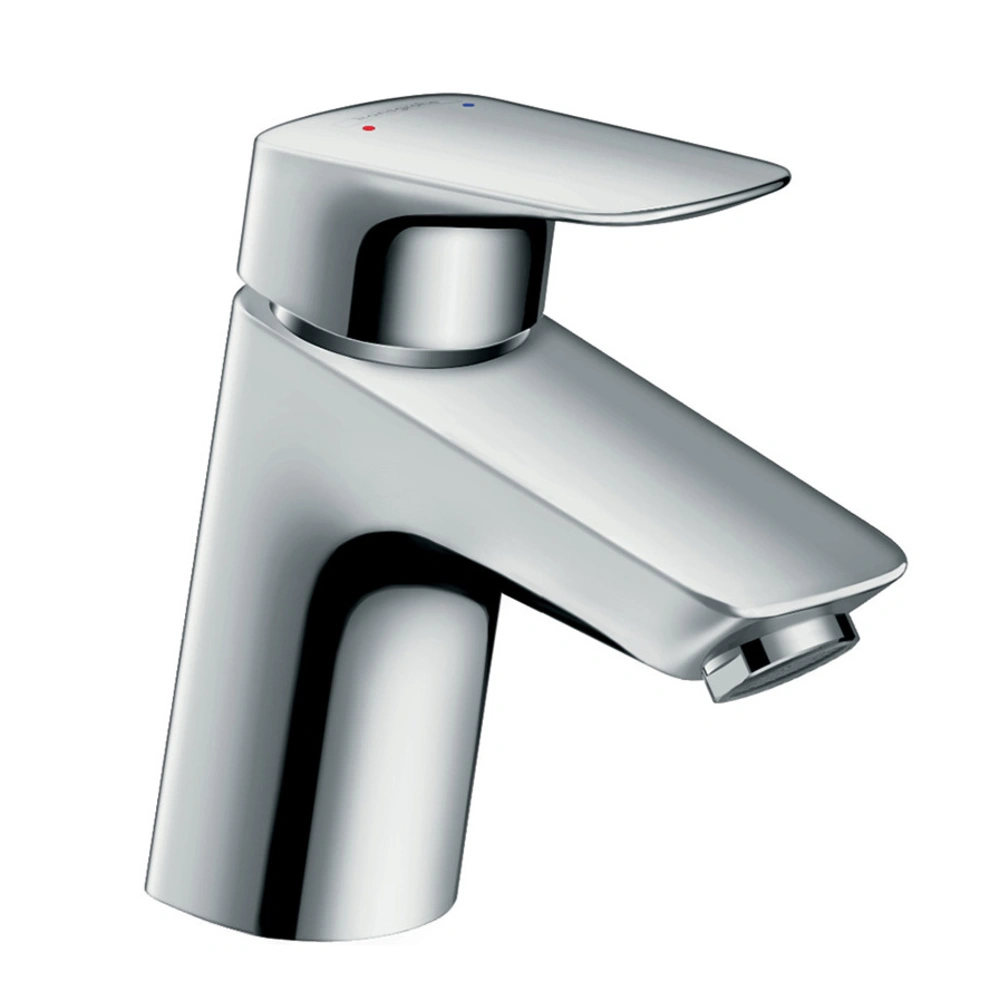

Logis 70 single-lever basin mixer with push-open waste low pressure 71074000
OEG no.: 800007264
Single-lever basin mixer with ceramic mixing system and adjustable temperature limiter.
The tap is suitable for the use with open hot-water heaters.
All product information Scope of delivery
Low-pressure fitting for vented hot water cylinders
5 years warranty
Single-lever basin mixer with ceramic mixing system and adjustable temperature limiter.
The tap is suitable for the use with open hot-water heaters.
| Scope of delivery: | |||
| 1 x | single-lever basin mixer | ||
| 2 x | flexible connection hose | ||
| 1 x | push-open waste set 1¼" | ||
| Spare parts: | |||
|
Cartridge for single-lever mixer as of March 2001 (M3/M2) |
|
|
For more information see Downloads
| OEG no. | 800007264 |
| Application : | Washbasin |
| Type of connection: | Low pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | Push-Open |
| Fitting operation: | Single-lever mixer tap |
| Cartridge: | hansgrohe 35 mm |
| Projection [mm]: | 107 |
| Spout height [mm]: | 67 |
| Height of tap [mm]: | 138 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 5 |
| Spout swivelling: | No |
| Pull-out spout: | No |
| Application: | Hot water, Cold water |
| Design line: | Logis |
| Mixer colour: | Chrome |
| Manufacturer | Hansgrohe |
| Manufacturer number | 71074000 |
| EAN | 4011097738673 |
| Weight [kg] | 2 |
| Notes |
Low-pressure fitting for vented hot water cylinders
5 years warranty
|
| Customs tariff number | 84818011 |
|
|
|
| OEG no. | 800007264 |
| Application : | Washbasin |
| Type of connection: | Low pressure |
| Tap fitting installation: | Surface mounting |
| Waste set: | Push-Open |
| Fitting operation: | Single-lever mixer tap |
| Cartridge: | hansgrohe 35 mm |
| Projection [mm]: | 107 |
| Spout height [mm]: | 67 |
| Height of tap [mm]: | 138 |
| Operating pressure [bar]: | 3 |
| Flow rate [l/min]: | 5 |
| Spout swivelling: | No |
| Pull-out spout: | No |
| Application: | Hot water, Cold water |
| Design line: | Logis |
| Mixer colour: | Chrome |
| EAN | 4011097738673 |
| Weight [kg] | 2 |
| Notes |
Low-pressure fitting for vented hot water cylinders
5 years warranty
|
| Customs tariff number | 84818011 |
