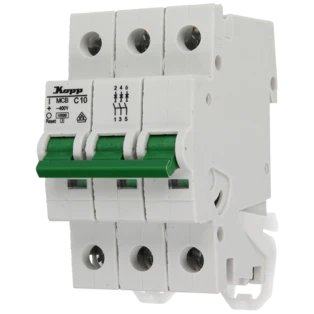

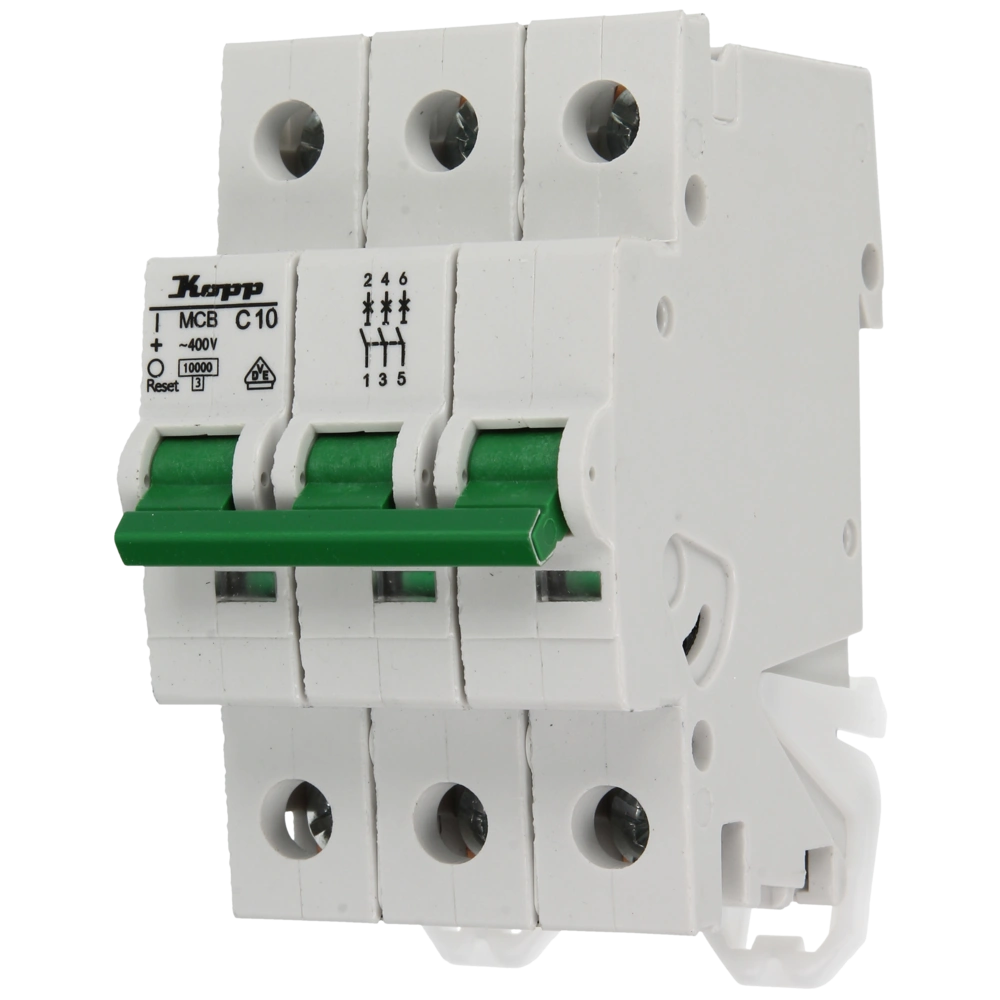

Miniature circuit breaker 10 A 3-pole 721031008
The miniature circuit breaker triggers all-pole disconnection of electric circuits as soon as the permissible residual current is exceeded.
It provides protection against life-threatening situations caused by insulation mistakes and dangerous touch voltage...
The miniature circuit breaker triggers all-pole disconnection of electric circuits as soon as the permissible residual current is exceeded.
It provides protection against life-threatening situations caused by insulation mistakes and dangerous touch voltage.
The circuit breaker is suitable for top hat DIN rail mounting. It can be installed fast due to standard module widths and be extended by circuit breakers.
Circuit breakers are needed in any electrical domestic installation, especially in bath and shower facilities.
For more information see Downloads
| OEG no. | 711000032 |
| Trigger characteristic: | C |
| Number of poles: | 3 |
| Rated current [A]: | 10 |
| Voltage [V]: | 230 |
| Short circuit current [A]: | 10,000 |
| Installation depth: | 68 |
| Type: | GE-2 |
| Protection type [IP]: | 20 |
| Manufacturer | Kopp |
| Manufacturer number | 721031008 |
| EAN | 4008224163866 |
| Weight [kg] | 0.36 |
| Customs tariff number | 85362010 |
