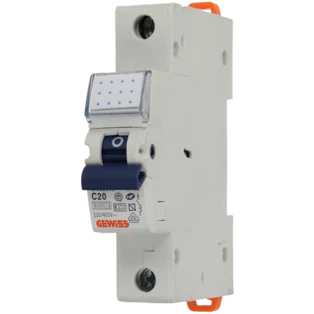

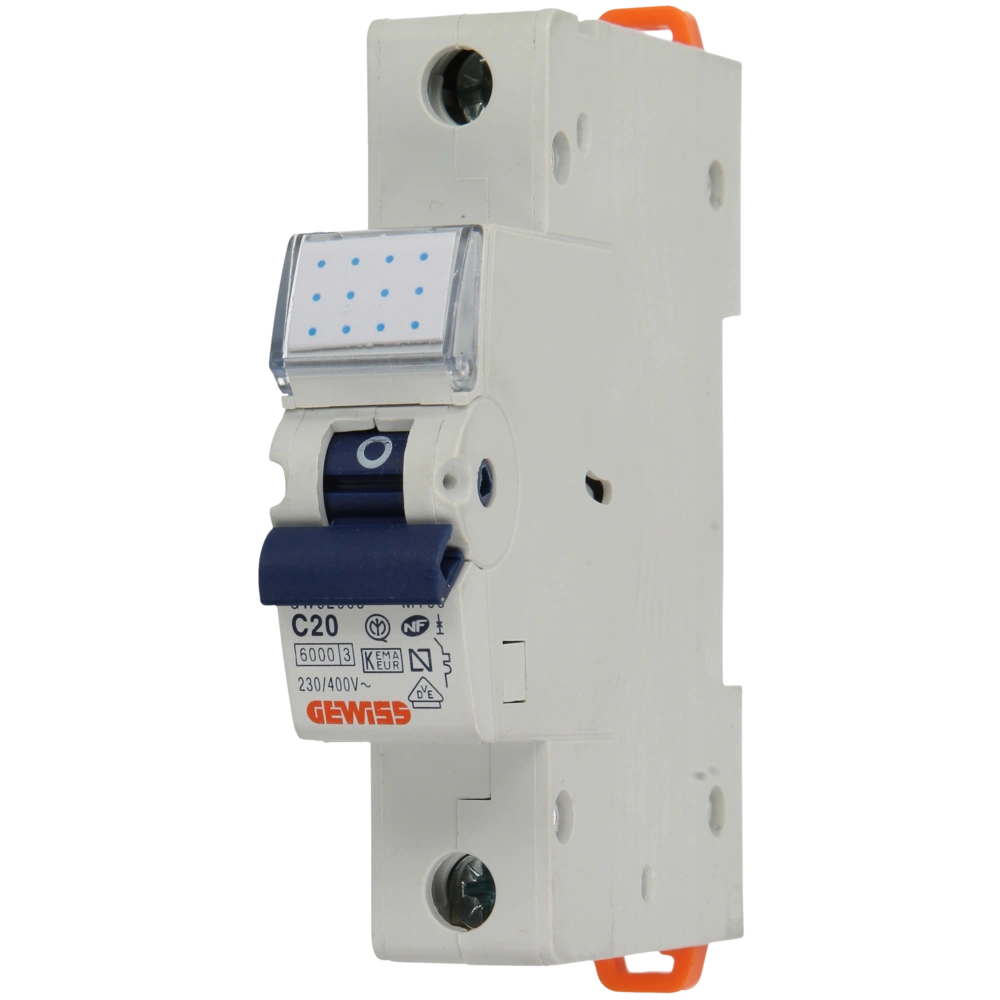

Miniature circuit breaker 20A GW92008
OEG no.: 711002034
Single-pole miniature circuit breaker for DIN rail mounting to automatically disconnect electrical circuits in case of overload or short circuit.
All product information
Single-pole miniature circuit breaker for DIN rail mounting to automatically disconnect electrical circuits in case of overload or short circuit.
For more information see Downloads
| OEG no. | 711002034 |
| Trigger characteristic: | C |
| Rated current [A]: | 20 |
| Horizontal pitches [HP]: | 1 |
| Number of poles: | 1 |
| Switching capacity [A]: | 6,000 |
| Voltage [V]: | 230, 400 |
| Operating temperature [°C]: | -25 .. 60 |
| Manufacturer | GEWISS |
| Herstellernummer | GW92008 |
| EAN | 8011564057050 |
| Weight [kg] | 0.13 |
| Notes | |
| Customs tariff number | 85362010 (IT) |
Question
(Rated current [A]: 16 | Horizontal pitches [HP]: 3 | Trigger characteristic: C)
Zijn de stroomonderbrekers ook geschikt voor DC (gelijkstroom 12 of 24 Volt)
Answer OEG:
Minimale bedrijfsspanning 12V ac/dc en max. bedrijfsspanning 440V AC / 220V DC
Question
(Rated current [A]: 16 | Horizontal pitches [HP]: 3 | Trigger characteristic: C)
Ist diese Ausführung träge ?
Answer OEG:
„C“ sind immer träge
You have to be logged in to ask a question
03/10/2016, 11:05:39 of: Mr Feld
gut
Sehr gut und sehr zu empfehlen
Technical data sheet (PDF)
- 0.09MB
