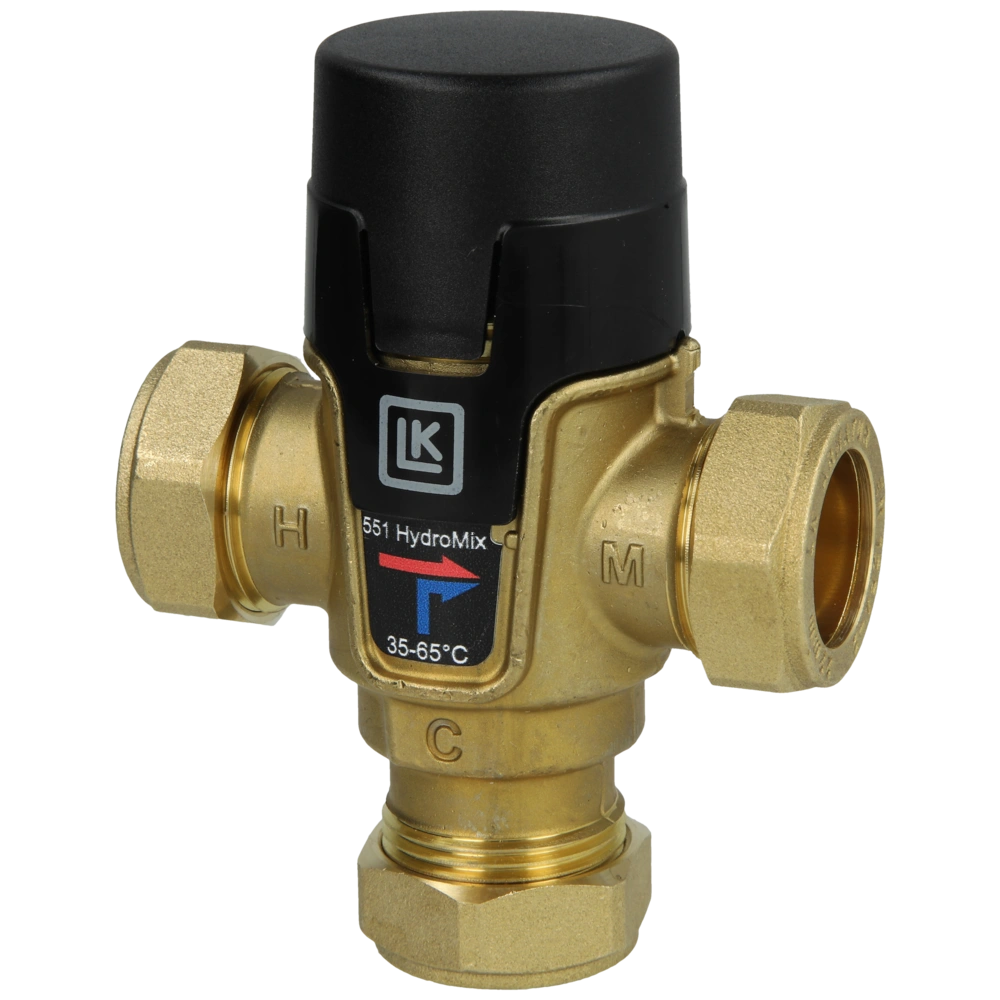

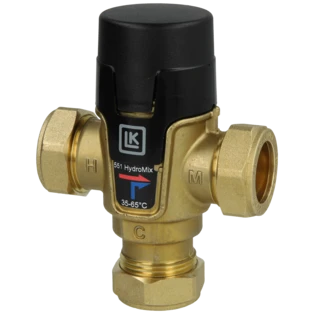

Mixer for process water 15 mm +35 bis +65 °C
OEG no.: 512240607
The mixing valve for domestic hot water is designed for temperature limitation, if storage tank temperatures are too high. Suitable for solar and solid-fuel systems, which have loaded the storage tank to the max...
All product information
WRAS-certified
The mixing valve for domestic hot water is designed for temperature limitation, if storage tank temperatures are too high. Suitable for solar and solid-fuel systems, which have loaded the storage tank to the max. The mixing valve also provides an anti-scald function. The valve responds to a failure of the cold water supply by a complete closing of the hot water supply port. The protective cap prevents unintended changes of the temperature setting.
For more information see Downloads
| OEG no. | 512240607 |
| Diameter: | 45 mm |
| Material: | Brass |
| Total length [mm]: | 90 |
| Connection: | 15 mm compression fitting |
| kvs-value [m³/h]: | 1.3 |
| Operating pressure max. [bar]: | 10 |
| Operating temperature [°C]: | 5 .. 95 |
| Weight [kg] | 0.55 |
| Notes |
WRAS-certified
|
| Customs tariff number | 84818051 (SE) |
Question
do you sell this as a 22mm, if so whats the code pls.
Answer OEG:
Unfortunately, we do not have this as standard in 22 mm in our range, but we can request it from our supplier if you wish.
Alternatively, we can also offer you the article Mixing unit 22 mm compression fitting.
