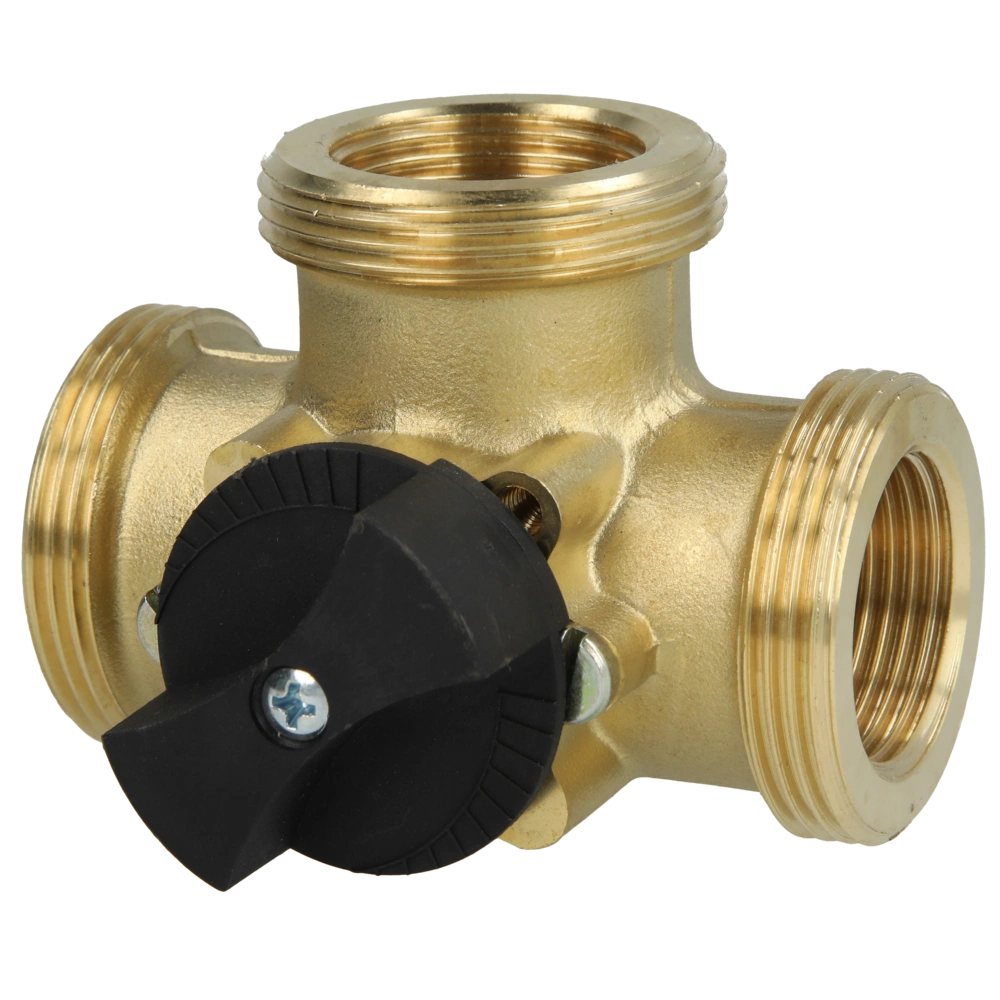

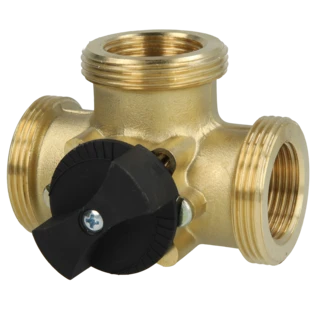

Mixing valve 3-way 1" IT x 1 1/2" ET ME66612
OEG no.: 512400075
The 3-way mixing valve is suitable for mixed or zone operation. The valves are made of high-quality brass and can be used in heating and cooling applications. For manual operation, the mixing valve is equipped with a non-slip button.
All product information
The 3-way mixing valve is suitable for mixed or zone operation. The valves are made of high-quality brass and can be used in heating and cooling applications. For manual operation, the mixing valve is equipped with a non-slip button.
For more information see Downloads
| OEG no. | 512400075 |
| Material: | Brass |
| Connection: | 1" IT | 1 1/2" ET | 1" IT |
| Operating pressure max. [bar]: | 10 |
| Seal: | EPDM |
| Operating temperature [°C]: | 110 |
| Length [mm]: | 90 |
| Manufacturer | Flamco |
| Herstellernummer | ME66612 |
| Weight [kg] | 0.81 |
| Customs tariff number | 84818051 (EEC) |
Question
Gibt es ein vermasstes Daten Blatt ? Bitte zusenden ´bzw. benötige ich das Maß von Mitte Drehschieber bis Gewindeende Mfg Hr.Meister Oder eine Mischergruppe DN 25 Vorlauf links
Answer OEG:
Guten Tag,
die Gesamtlänge des Mischers beträgt 90 mm. Von der Mitte aus bis zu jedem Gewindeende beträgt Länge von 45 mm.
Mit freundlichen Grüßen
Technical data sheet (PDF)
- 0.22MB
