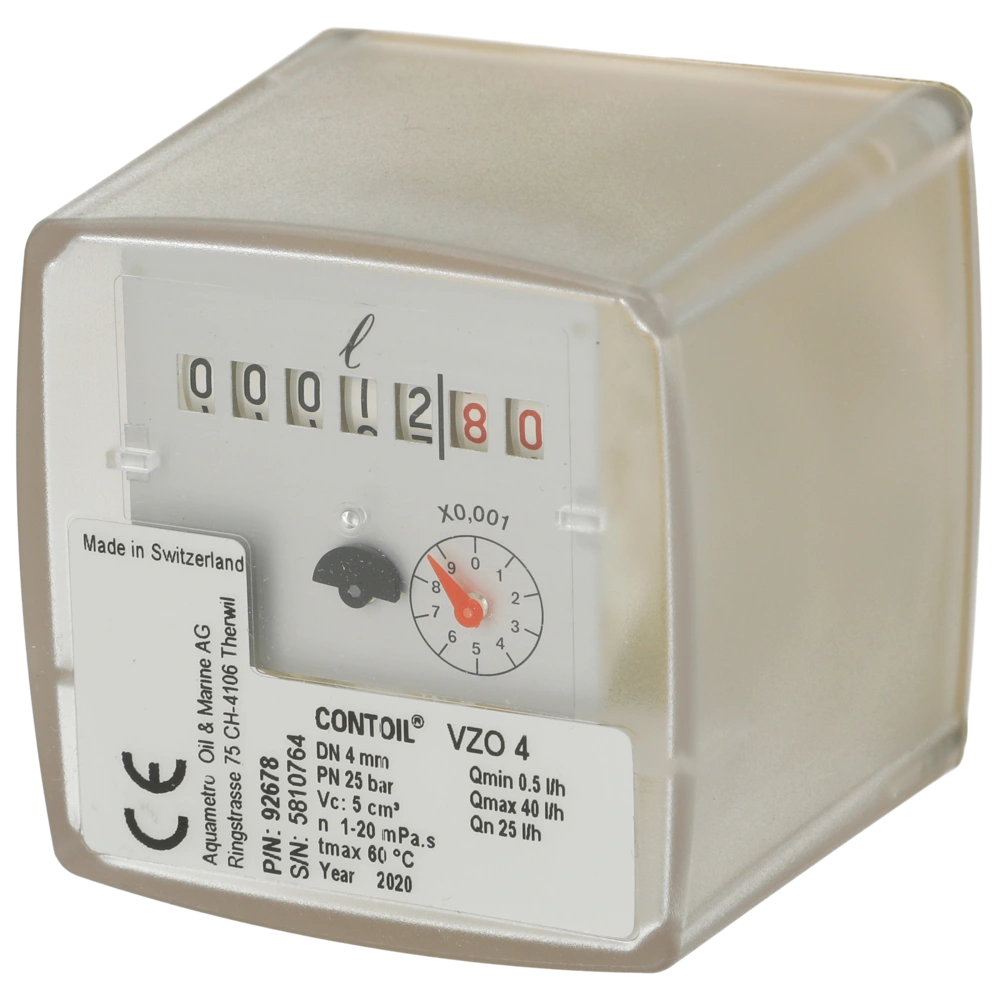

Oil meter for measuring the heating oil consumption of oil burners and the flow of mineral oils. The rotary piston meter provides accurate measuring results since these are independent of the temperature and the viscosity of the medium...
All product informationRelated products
Oil meter for measuring the heating oil consumption of oil burners and the flow of mineral oils. The rotary piston meter provides accurate measuring results since these are independent of the temperature and the viscosity of the medium. Optionally, remote processing as well as integration into superior systems are possible.
It can be installed in a space-saving way on the pressure or suction side in any position because no straight inlet and outlet sections are required.
Failure costs are minimised due to simple function monitoring, rapid fault analysis and the possibility of simple repairs on site.
For more information see Downloads
| OEG no. | 116325010 |
| Model: | Roller counter |
| Measuring range: | 0.5 .. 40 l/h |
| Type of connection: | Female thread |
| Connection size: | 1/8" IT |
| Temperature max. [°C]: | 60 |
| Mounting type: | Horizontal, Vertical |
| Nominal pressure PN [bar]: | 25 |
| Measurement accuracy: | ± 1% |
| Flow rate [l/h]: | 25 |
| Nominal size: | 4 mm |
| Length x Width x Height [mm]: | 65 x 65 x 79 |
| Protection type: |
 IP65
 Dust-tight
 protected against sprayed water
|
| Indication max.: | 100,000 litres |
| Pumped medium: | Diesel, Heating oils, Petrol |
| Measurement deviation in %: | ± 1, ± 0.2 |
| Property: | Vibration-proof |
| Calibration: |
 Yes
|
| Manufacturer | Aquametro |
| Manufacturer number | 92678 |
| Weight [kg] | 0.73 |
| Customs tariff number | 90282000 (CH) |
Welche anschlussgroße hat der Zähler
1/8" Innengewinde ist die Anschlussdimension,unter dem Reiter (Downloads) können sie weitere Information einsehen, wie technische Daten,Explosionszeichnung und weiteres
You have to be logged in to ask a question
23/02/2017, 14:50:52 of: Mr Feld
gut
Aquametro eine gute Marke Klasse
