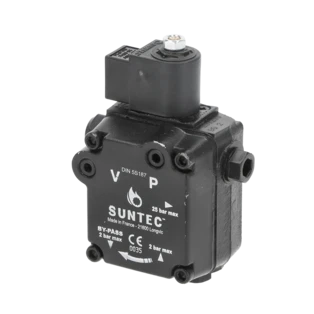

Oil pump AL35C96286P0700 AL35C9628 6P 0700
OEG no.: 112100390
Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
All product informationRelated products
CE
Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
For more information see Downloads
| OEG no. | 112100390 |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Type: | AL 35 C |
| Nozzle outlet: | On the left |
| Connection size flow and return [inch]: | 1/4 |
| Viscosity: | 2 .. 12 mm²/s |
| Protection type [IP]: |
 IP54
|
| Torque [Nm]: | 0.10 |
| Operating pressure [bar]: | 8 .. 15 |
| Delivery rate [l/h]: | 30 |
| Media temperature [°C]: | 0 .. 60 |
| Shaft diameter [mm]: | 8 |
| Pump shaft: |
 1-surface
|
| Connection: | Cylindrical |
| Power consumption [W]: | 9 |
| Speed max. [1/min]: | 3,600 |
| Manufacturer | Suntec |
| Manufacturer number | AL35C9628 6P 0700 |
| Also replaces |
|
| Weight [kg] | 1.2 |
| Notes |
CE
|
| Customs tariff number | 84136031 (FR) |
Question

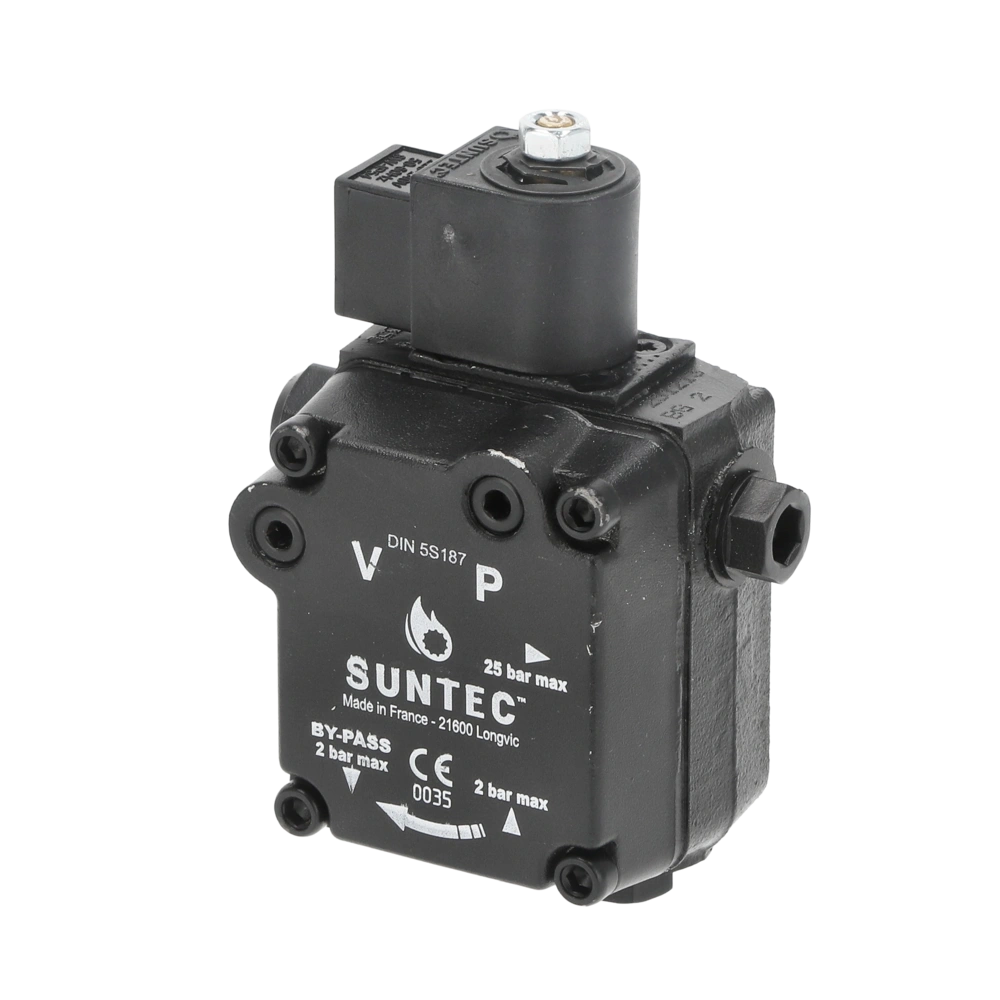

Bonjour, la sortie pour le tube de la ligne gicleur est bien sur la droite comme représenté sur la photo. Merci
Answer OEG:
La sortie de la ligne de gicleur se trouve à gauche de l'arbre de la pompe.
Question
Bonjour, j'aimerais savoir si ce modèle peut remplacer le modèle SUNTEC AL35C 9528 2E3, tournant sur un brûleur Hansa HS 5.2, 37-54kW de 2000 (3,1-4,5 kg/h). En vous remerciant d'avance.
Answer OEG:
oui
