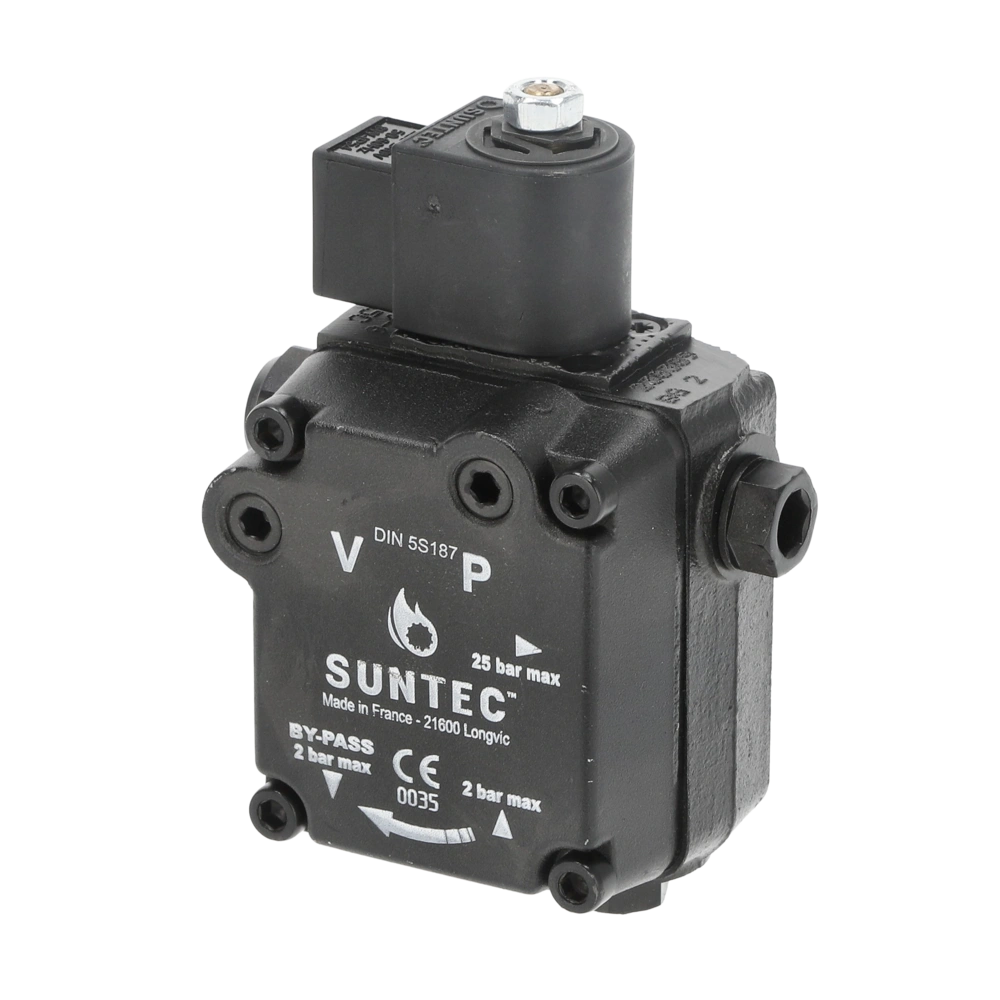

Oil pump AL65C9589 6P 0500 AL65C9589 6P 0500
OEG no.: 112105734
Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
All product informationRelated products
CE
Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
For more information see Downloads
| OEG no. | 112105734 |
| Operating pressure [bar]: | 8 .. 15 |
| Type: | AL 65 C |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Nozzle outlet: | On the left |
| Viscosity: | 2 .. 12 mm²/s |
| Connection size flow and return [inch]: | 1/4 |
| Protection type [IP]: |
 IP54
|
| Torque [Nm]: | 0.12 |
| Delivery rate [l/h]: | 70 |
| Media temperature [°C]: | 0 .. 60 |
| Shaft diameter [mm]: | 8 |
| Pump shaft: |
 1-surface
|
| Connection: | Cylindrical |
| Power consumption [W]: | 9 |
| Speed max. [1/min]: | 3,600 |
| Manufacturer | Suntec |
| Manufacturer number | AL65C9589 6P 0500 |
| Weight [kg] | 1.17 |
| Notes |
CE
|
| Customs tariff number | 84136031 (EEC) |
