Oil pump AL95C9412 4P 0700 AL95C9412 4P 0700

OEG no.: 112100727

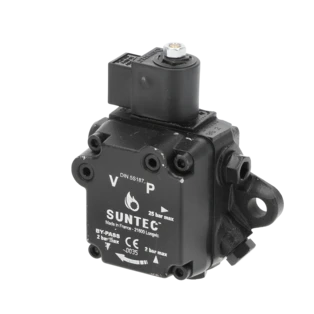

Zoom Oil pump AL95C9412 4P 0700
OEG no. : 112100727

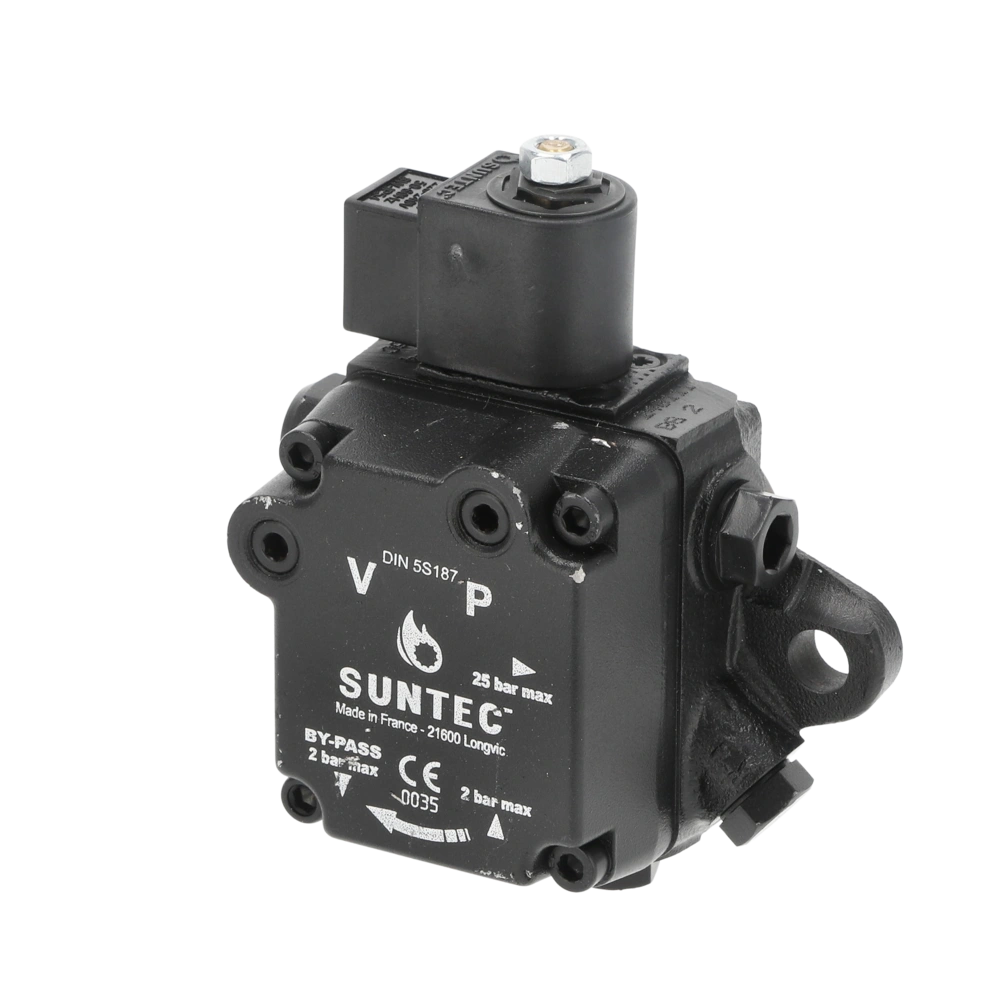

Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.

All product information
Related products
CE

CE

CE
Wipe 'n' Buy ®
Wipe 'n' Buy

Internal gear pump with a solenoid valve that closes the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.


For more information see Downloads


OEG no. 112100727
Operating pressure [bar]: 10 .. 20
Type: AL 95 C
Oil pump direction of rotation:
Anti-clockwise rotation

Anti-clockwise rotation

Anti-clockwise rotation
Nozzle outlet: On the left
Viscosity: 2 .. 12 mm²/s
Connection size flow and return [inch]: 1/4
Protection type [IP]:
IP54

IP54

IP54
Torque [Nm]: 0.2
Delivery rate [l/h]: 140
Media temperature [°C]: 0 .. 60
Shaft diameter [mm]: 8
Pump shaft:
1-surface

1-surface

1-surface
Connection: Cylindrical
Power consumption [W]: 9
Speed max. [1/min]: 3,600
Manufacturer Suntec
Manufacturer number AL95C9412 4P 0700
Weight [kg] 1.51
Notes
CE

CE

CE
Customs tariff number 84136031 (FR)
