OEG no. : 112101365
Related products
Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations...
All product informationRelated products
CE

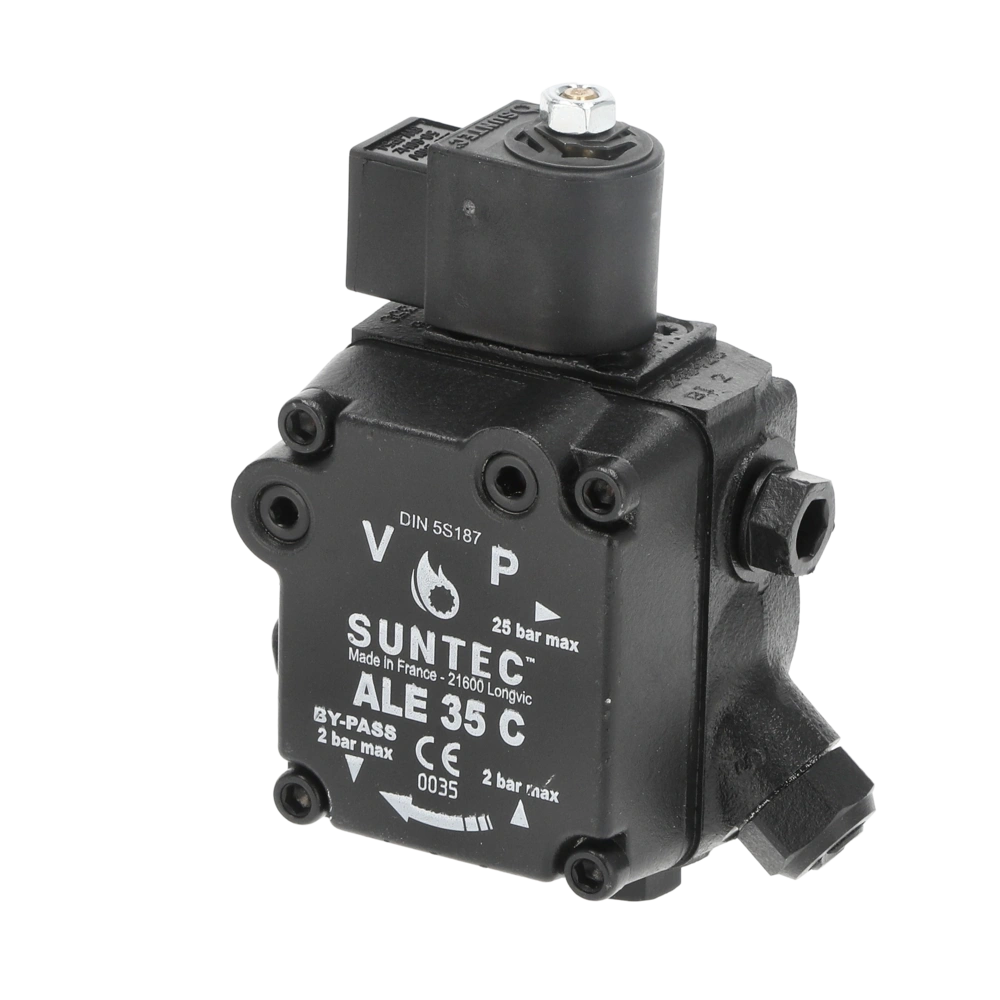

Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
For more information see Downloads
| OEG no. | 112101365 |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Nozzle outlet: | On the left |
| Connection size nozzle outlet [inch]: | 1/8 |
| Connection size flow and return [inch]: | 1/4 |
| Pump shaft: |
 1-surface
|
| Shaft diameter [mm]: | 8 |
| Connection: | Cylindrical |
| Operating pressure [bar]: | 4 .. 18 |
| Media temperature [°C]: | 0 .. 60 |
| Speed max. [1/min]: | 3,600 |
| Torque [Nm]: | 0.10 |
| Viscosity: | 2 .. 12 mm²/s |
| Power consumption [W]: | 9 |
| Type: | ALE |
| Delivery rate [l/h]: | 45 |
| Manufacturer | Suntec |
| Manufacturer number | ALE35C9329 6P 0700 |
| Weight [kg] | 1.21 |
| Notes |
CE
|
| Customs tariff number | 84136031 (FR) |
