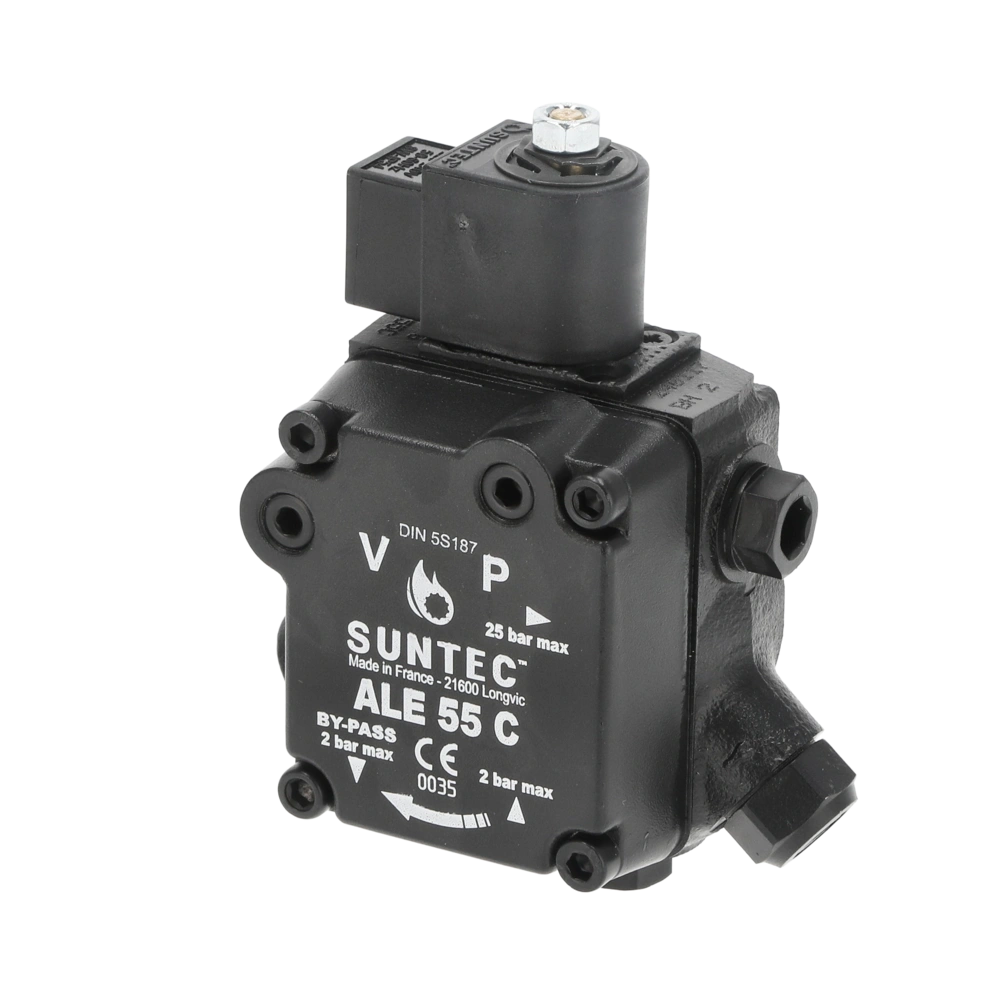

Oil pump ALE55C9330 6P ALE55C9330 6P 0700
OEG no.: 112101366
Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
All product informationRelated products
CE
Internal gear pump with solenoid valve and integrated pressure relief valve in the nozzle line for light and extra light heating oil. The pump can be used in one- or two-pipe operations.
| Spare parts: | ||
|

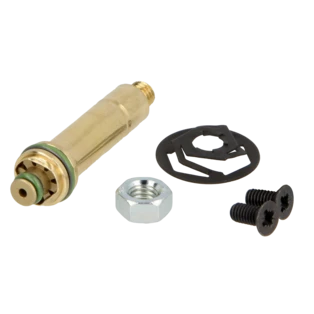

Solenoid valve core set with nut for ALE pumps |
|
|
Solenoid T80 with plug connection |
|
For more information see Downloads
| OEG no. | 112101366 |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Type: | ALE |
| Operating pressure [bar]: | 4 .. 18 |
| Viscosity: | 2 .. 12 mm²/s |
| Nozzle outlet: | On the left |
| Shaft diameter [mm]: | 8 |
| Pump shaft: |
 1-surface
|
| Power consumption [W]: | 9 |
| Torque [Nm]: | 0.10 |
| Speed max. [1/min]: | 3,600 |
| Media temperature [°C]: | 0 .. 60 |
| Connection size flow and return [inch]: | 1/4 |
| Connection size nozzle outlet [inch]: | 1/8 |
| Delivery rate [l/h]: | 70 |
| Manufacturer | Suntec |
| Manufacturer number | ALE55C9330 6P 0700 |
| Weight [kg] | 1.53 |
| Notes |
CE
|
| Customs tariff number | 84136031 (FR) |
