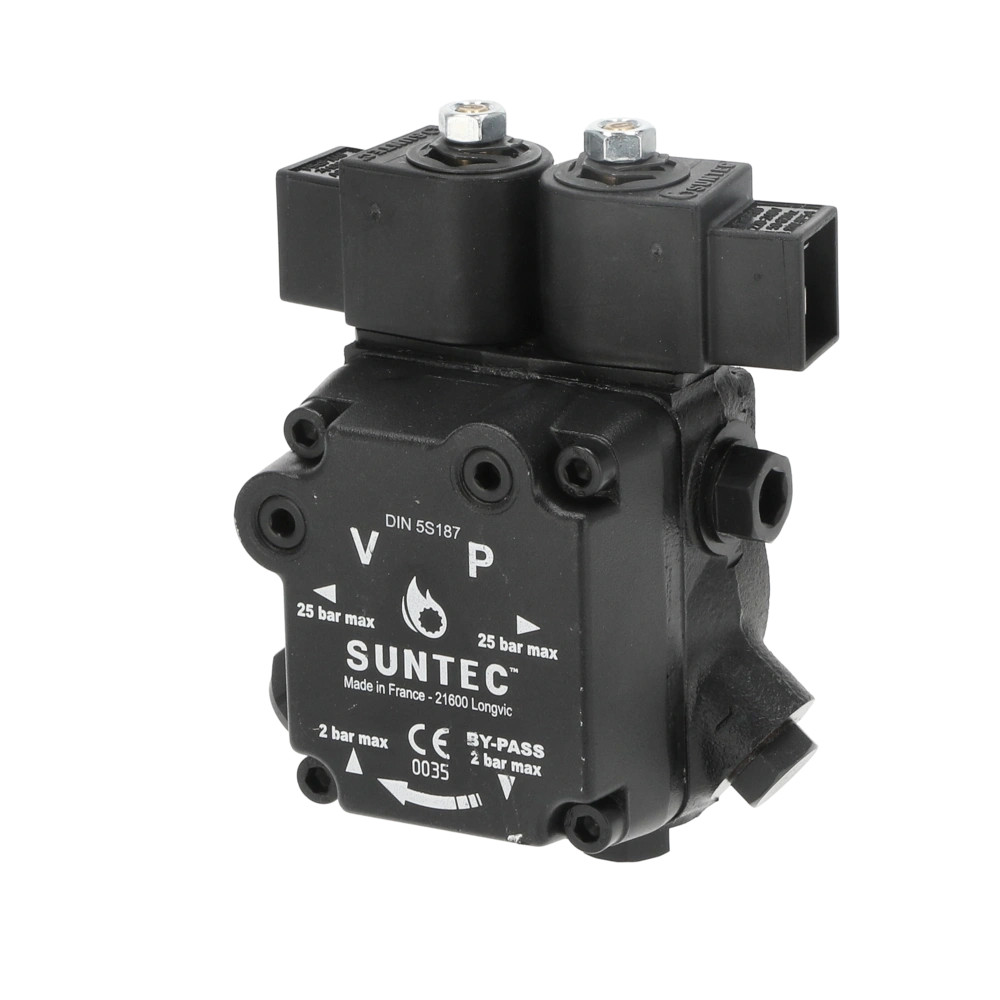

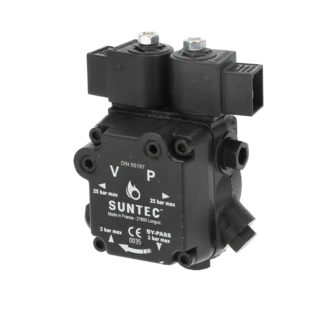

Internal gear pump suitable for light and extra-light heating oil in 2-stage operation. The pump is provided with two blocking solenoid valves with inline cut-off function, one for each nozzle outlet.
All product informationInternal gear pump suitable for light and extra-light heating oil in 2-stage operation. The pump is provided with two blocking solenoid valves with inline cut-off function, one for each nozzle outlet.
For more information see Downloads
| OEG no. | 112100448 |
| Operating pressure [bar]: | 8 .. 15 |
| Nozzle outlet: | On both sides |
| Oil pump direction of rotation: |
 Anti-clockwise rotation
|
| Torque [Nm]: | 0.14 |
| Type: | A2L |
| Connection size flow and return [inch]: | 1/4 |
| Connection size nozzle outlet [inch]: | 1/8 |
| Media temperature [°C]: | 0 .. 80 |
| Speed max. [1/min]: | 3,600 |
| Viscosity: | 2 .. 12 mm²/s |
| Power consumption [W]: | 9 |
| Pump shaft: |
 1-surface
|
| Delivery rate [l/h]: | 115 |
| Shaft diameter [mm]: | 8 |
| Manufacturer | Suntec |
| Herstellernummer | A2L75C9706 4P |
| Weight [kg] | 2.1 |
| Customs tariff number | 84136031 (EEC) |
There are no questions available on this item yet
You have to be logged in to ask a question
11/01/2017, 16:20:18 of: Mr Feld
gut
Die Ölpumpe ist sehr gut und günstig
Technical documentation (PDF)
- 0.21MB
