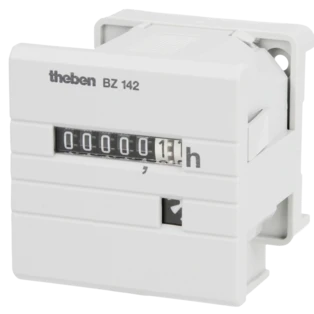

Operating hour counter BZ 142-3 plug-in base for 35 mm profile rail 1420723
The analogue operating-hour counter with quartz-controlled stepper motor can be mounted with plug-in base for wall installation. The plug-in base features quick fastening for the 35 mm profile rail and screw terminals...
All product informationThe analogue operating-hour counter with quartz-controlled stepper motor can be mounted with plug-in base for wall installation. The plug-in base features quick fastening for the 35 mm profile rail and screw terminals. It has a contact protection to comply with accident prevention regulation BGV A3. The counter range of the progress display reaches up to 99,999.99 without zero position.
For the wall installation the terminal cover 512209250 is required.
For more information see Downloads
| OEG no. | 512209100 |
| Colour: |
 anthracite
|
| Mounting type: | Front-panel installation |
| Voltage [V]: | 230 |
| Wall thickness [mm]: | Max. 10 |
| Protection type [IP]: |
 IP65
|
| Dimensions: | 48 x 48 x 48.6 mm |
| Installation opening [mm]: | 46 x 46 |
| Ambient temperature [°C]: | -20 .. 70 |
| Manufacturer | Theben |
| Manufacturer number | 1420723 |
| EAN | 4003468140024 |
| Weight [kg] | 0.07 |
| Customs tariff number | 90291000 |
