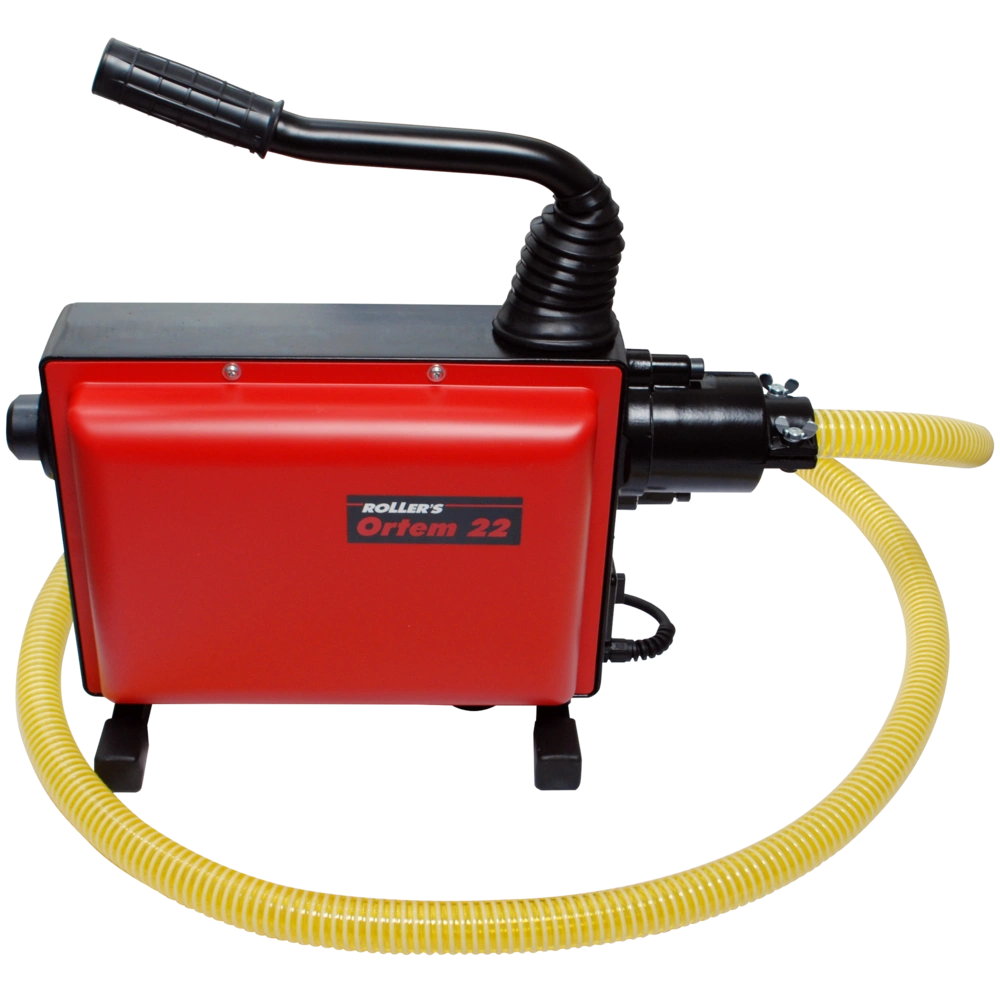

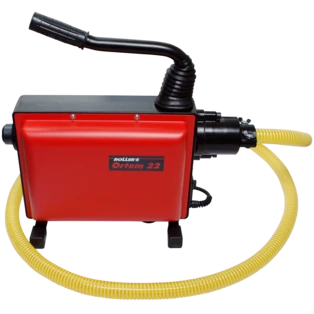

Ortem 22 Set 16+22 pipe cleaning machine 172012 A220

ROLLER'S Ortem is a compact, proven, universal pipe cleaning machine suitable for pipes of Ø 20 - 150 mm and for spirals of Ø 8, 16, 22 mm.
The continuous, undivided drive spindle and the clamping jaws outside
the housing provide complete sealing of the motor compartment against
water and dirt. The machine ensures effective, simple and fast working by high speed, especially for effective milling and chain spinning. The highly flexible, specially hardened pipe cleaning spirals make progress easy, even in narrow pipe bends. Choice of three types of spirals:
- standard pipe cleaning spiral for universal use
- pipe cleaning spiral S for obstructions difficult to remove
- pipe cleaning spiral with core for long-fibre obstructions
- the pipe cleaning spirals Ø16 and 22 mm are driven directly without
   changing the clamping jaws
Variable spiral length due to quickly connectable spiral sections, thus no unnecessary turning of long pipe cleaning spirals.
Due to the manual feed, working is delicate and the strong, centrally arranged pressing lever provides central application of force and strength. The guide hose prevents the spriral from whipping and contaminating the environment. Ortem has a powerful, splash-protected, quiet 1-condenser motor 230 V, 50 Hz, 750 W with right and left-hand rotation that is powerful in case of any kind of contamination, for a working length of up to 70 m (spiral 22 mm).

Scope of delivery:

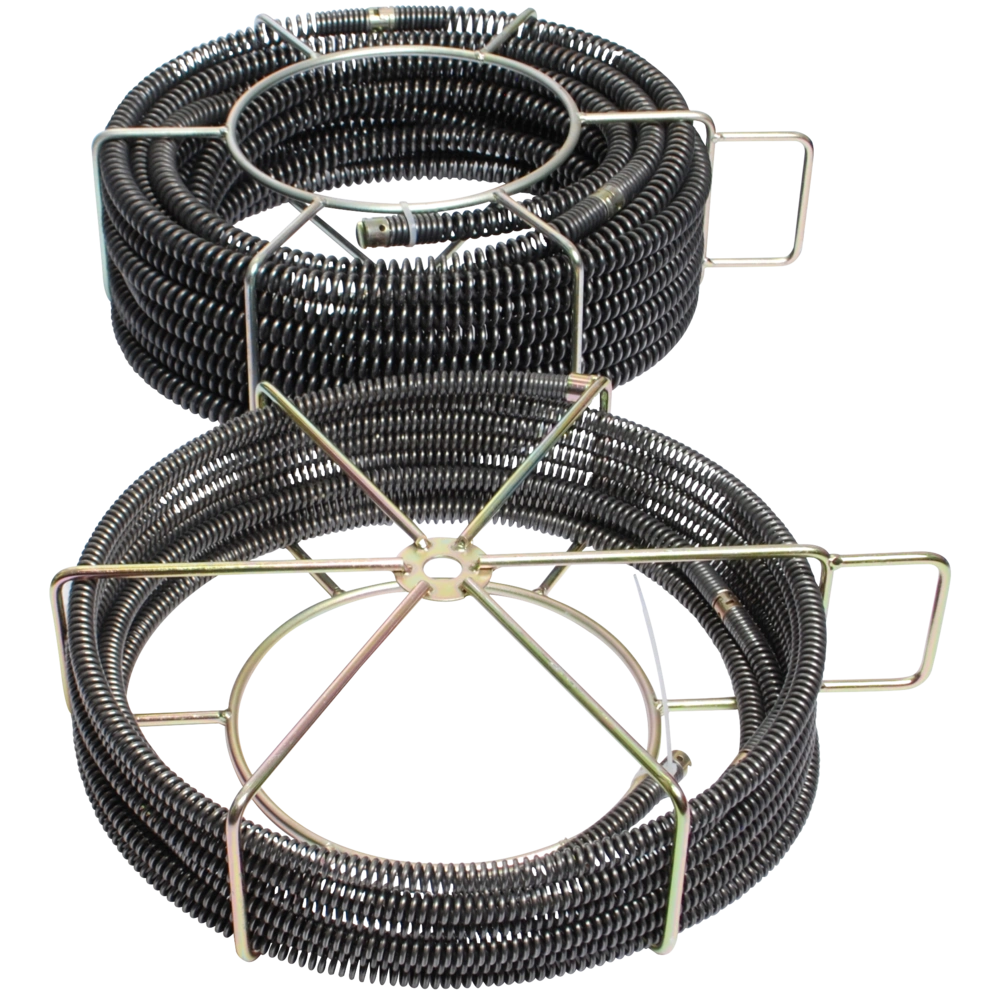

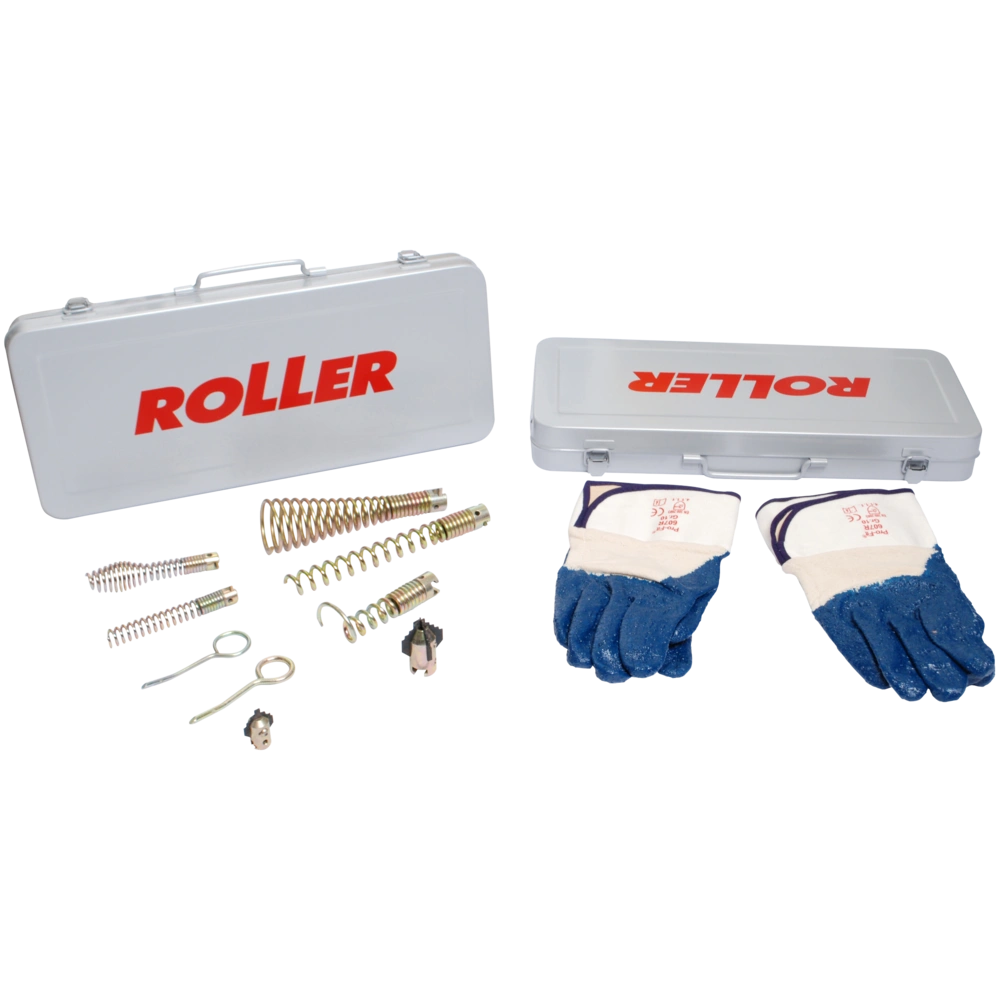

Drive unit, guide hose, 5 spiral sections Ø 16 mm x 2.3 m in spiral cage, straight drill 16, club drill 16, toothed blade drill 16/25, spiral cutting pin, 5 spiral sections Ø 22 mm x 4.5 m in spiral cage, straight drill 22,
funnel drill 22, recovery drill 22, toothed cross blade drill 22/35,
spiral cutting pin 22, 2 pairs of guiding gloves, steel case for each tool kit.

For more information see Downloads
